Induction of Antigen-Specific Tumor Immunity by Genetic and Cellular Vaccines against MAGE: Enhanced Tumor Protection by Coexpression of Granulocyte-Macrophage Colony-Stimulating Factor and B7-1

Molecular Medicine volume 2, pages 545–555 (1996)Cite this article

Abstract

Background

A number of tumors express antigens that are recognized by specific cytotoxic T cells. The normal host immune responses, however, are not usually sufficient to cause tumor rejection. Using appropriate immunization strategies, tumor-specific antigens may serve as targets against which tumor-destructive immune responses can be generated. MAGE-1 and MAGE-3 are two clinically relevant antigens expressed in many human melanomas and other tumors, but not in normal tissues, except testis. Here, we have investigated whether DNA and cellular vaccines against MAGE-1 and MAGE-3 can induce antigen-specific anti-tumor immunity and cause rejection of MAGE-expressing tumors.

Materials and Methods

Mice were immunized against MAGE-1 and MAGE-3 by subcutaneous injection of genetically modified embryonic fibroblasts or intramuscular injection of purified DNA. Mice were injected with lethal doses of B16 melanoma cells expressing the corresponding MAGE antigens or the unrelated protein SIV tat, and tumor development and survival were monitored.

Results

Intramuscular expression of MAGE-1 and MAGE-3 by plasmid DNA injection and subcutaneous immunization with syngeneic mouse embryonic fibroblasts transduced with recombinant retroviruses to express these antigens induced specific immunity against tumors expressing MAGE-1 and MAGE-3. Both CD4+ and CD8+ T cells were required for anti-tumor immunity. Coexpression of granulocyte-macrophage colony-stimulating factor (GM-CSF) or B7-1 significantly increased anti-tumor immunity in an antigen-specific manner and resulted in a considerable proportion of mice surviving lethal tumor challenge.

Conclusions

Our results suggest that genetic and cellular vaccines against MAGE and other tumor antigens may be useful for the therapy of tumors expressing specific markers, and that GM-CSF and B7-1 are potent stimulators for the induction of antigen-specific tumor immunity.

Introduction

Recently, several genes encoding tumor antigens recognized by autologous CD8+ T cells have been identified (1–10). Since these tumor antigens are recognized by cytotoxic T cells in vitro, they may serve as targets for tumor immunotherapy, provided that appropriate immunization enhances their recognition and generates effective cellular immune responses against tumor cells expressing these antigens in vivo. MAGE-1 and MAGE-3, two members of the MAGE gene family (11,12), are expressed by many human melanomas and other tumors (10,13,14), but not by normal tissues except for testis (7,15). MAGE-1 and MAGE-3 are found in the cytoplasm (16–18). Peptides derived from these proteins are presented on tumors in association with several different major histocompatibility (MHC) class I haplotypes and elicit specific cytotoxic T lymphocytes in patients (10,19–21). The high tumor specificity of these antigens and their expression in many different types of cancers make them attractive targets for tumor immunotherapy. It has previously been shown that melanoma patients immunized with a melanoma cell vaccine produce antibodies against MAGE-1 (22). In addition, MAGE-1-specific cytotoxic T lymphocytes have been generated after immunization with MAGE-1 peptide-pulsed antigen-presenting cells in melanoma patients (23) and in vitro (24). Inhibition of the growth of MAGE-1-expressing tumors in vivo by immunization has not, however, been documented.

By engineering nonimmunogenic mouse B16 melanoma cells to express MAGE proteins, we generated a mouse tumor system that allowed us to study whether immunization against MAGE antigens can inhibit or delay the growth of tumor cells expressing these antigens. Here we show that intramuscular expression of MAGE-1 and MAGE-3, and subcutaneous vaccination with genetically modified fibroblasts can induce specific anti-tumor immunity and rejection of tumor cells expressing these antigens. Stimulation of anti-tumor immunity was dependent on both CD4+ and CD8+ T cells. In addition, it could be significantly enhanced by coexpression of granulocyte-macrophage colony-stimulating factor (GM-CSF) or B7-1, resulting in a considerable proportion of long-term protected mice after lethal tumor challenge.

Materials and Methods

Preparation and Analysis of Recombinant Retroviral Stocks

To generate recombinant viruses encoding MAGE-1, MAGE-3, murine GM-CSF, and B7-1, the respective coding sequences were introduced into the retroviral vector SFG. This vector is derived from MFG (25,26) by the introduction of two point mutations which create an Nhe I site and cause the premature termination of the gag ORF sequences present in MFG. The sequence around the gag ATG in SFG reads: ATGGGCCC GGGCTAGCCT. Disruption of the gag ORF reduces the potential for recombination events involving packaging cell sequences that may lead to helper virus formation under certain conditions (27). Forty micrograms of linearized plasmid were coelectroporated with 5 µg of pSV2neo into ψ-CRIP packaging cells (28). G418-resistant clones were picked and expanded, and the relative efficiencies of virus transmission by individual producer clones was assessed by infecting 3T3 cells with supernatant from producer clones and analyzing genomic DNA of infected cells for provirus integration using gene-specific probes.

Preparation and Characterization of Transduced Embryonic Fibroblasts and Tumor Cell Lines

C57BL/6J embryonic fibroblasts expressing MAGE-1, MAGE-3, GM-CSF, and B7-1 were generated by infection with the corresponding recombinant retroviral stocks on three subsequent days for 4 hr in the presence of 8 µg/ml polybrene. Control embryonic fibroblasts were generated by infection with “empty” SFG virus. B16 tumor cells were infected twice with recombinant retroviruses encoding MAGE-1 and MAGE-3, respectively, and subcloned by limiting dilution. B16 cells expressing SIV tat were kindly provided by Connie Gee. Expression of the genes in infected cells was demonstrated by Northern blot analysis (MAGE-3), Western blot analysis (MAGE-1), enzyme-linked immunosorbent assay (ELISA) (GM-CSF), and flow cytometry (B7-1), respectively. Fibroblasts were tested for helper virus activity using the β-galactosidase mobilization assay and were found to be free of helper virus.

Immunizations

Infected embryonic fibroblasts were trypsinized, washed twice in 1 × Hanks’ balanced salt solution (HBSS) (Gibco BRL, Grand Island, NY, U.S.A.) to eliminate traces of serum proteins and resuspended at 2–6 × 106 cells/ml in HBSS. For immunization, C57BL/6J female mice were injected subcutaneously with 0.5 ml of cell suspension. For intramuscular immunizations, the coding sequences of MAGE-1, MAGE-3, GM-CSF, and B7-1 were cloned into the expression vector pBK-CMV (Stratagene, La Jolla, CA, U.S.A.). Plasmid DNA was prepared and purified from endotoxins using kits from Qiagen Inc. (Chats-worth, CA). Mice were injected into both tibialis anterior muscles with 0.9% saline (control) or plasmid encoding the various proteins in 0.9% saline.

Tumor Injections

Mice were injected subcutaneously with B16 tumor cells expressing MAGE-1 or MAGE-3 in HBSS. Development of tumors was monitored every 2–3 days, and the mice were sacrificed when the sum of the two perpendicular tumor diameters reached 30 mm (a tumor volume of about 1.7 cm3).

Characterization of T Cell Responses

Mice lacking CD4 (29) or CD8 (30) were immunized with genetically modified embryonic fibroblasts or DNA as described above and injected 2 weeks later with B16 cells expressing MAGE-1. Tumor development was monitored as described above.

Results

Immunization with Embryonic Fibroblasts Expressing MAGE-1 and MAGE-3 Partially Protects Mice against Challenge with B16 Tumor Cells Expressing the Corresponding Antigens

Mice were injected subcutaneously with 3 × 106 embryonic fibroblasts engineered to express either MAGE-1 (EF-MAGE-1) or MAGE-3 (EF-MAGE-3) by using recombinant retroviruses (see Materials and Methods for details regarding the generation of antigen-and cytokine-expressing cell lines). Control mice were injected with fibroblasts transduced with “empty” retroviral vector (EF-SFG). Two weeks later the animals were challenged with 1.25 × 106 B16 melanoma cells expressing the corresponding antigens (10 times the minimal dose that caused 100% lethality in normal control mice) or with the same number of B16 cells expressing the immunologically unrelated protein, SIV tat. Tumor growth was monitored, and animals were killed when tumors reached a volume of about 1.7 cm3 (see Materials and Methods). All mice injected with mock-infected fibroblasts (EF-SFG) developed tumors and had to be sacrificed 23.9 ±1.5 days (mean ± SEM) after challenge with B16 melanoma cells expressing MAGE-1 (B16-MAGE-1) (Fig. 1A).In contrast, 30% of the mice immunized with fibroblasts expressing MAGE-1 (EF-MAGE-1) remained tumor free and survived for at least 92 days after tumor challenge (termination of experiment) (Fig. 1A). In three more experiments, 40–50% of EF-MAGE-1 injected mice remained tumor free (data not shown).

Fig. 1
figure 1

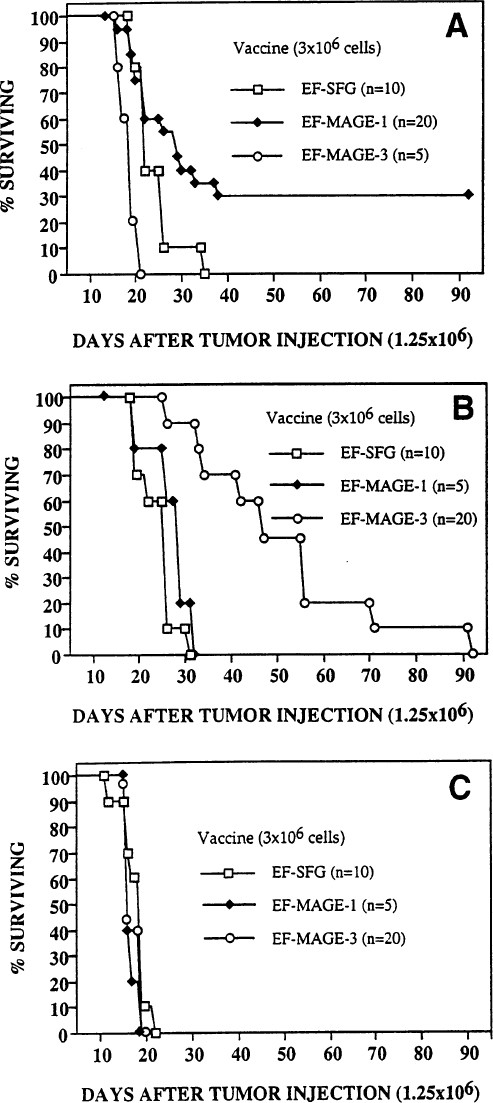

Immunization against B16 tumor cells expressing MAGE-1 and MAGE-3 by subcutaneous injection of genetically modified embryonic fibroblasts

C57BL/6J mice (n = 5–20) were injected subcutaneously with 3 × 106 embryonic fibroblasts infected with control retroviral vector (EF-SFG, □) or retroviral vector encoding MAGE-1 (EF-MAGE-1, ♦) or MAGE-3 (EF-MAGE-3, O). Two weeks later, animals were injected subcutaneously on the back with 1.25 × 106 B16 melanoma cells expressing (A) MAGE-1, (B) MAGE-3, or (C) SIV tat. Tumor development was monitored every 3 days and animals were sacrificed when the sum of the two tumor diameters reached 30 mm (a tumor volume of about 1.7 cm3) or when tumors became ulcerated.

Full size image

Mice immunized with MAGE-3 transduced embryonic fibroblasts (EF-MAGE-3) survived about twice as long (50.9 ± 4.3 days) as control mice injected with EF-SFG (24.0 ± 1.3 days) after a challenge with 1.25 × 106 B16-MAGE-3 tumor cells (Fig. IB). Although all EF-MAGE-3 immunized mice eventually developed tumors, onset and progression of tumor growth were significantly delayed. Comparable results were obtained in three other experiments (data not shown). Vaccination with EF-MAGE-1 or EF-MAGE-3 did not induce any protection against tumor cells expressing the control antigen, SIV tat (B16 tat) (Fig. 1C), and immunization with EF-MAGE-3 did not induce protection against B16-MAGE-1 (Fig. 1A), or vice versa (Fig. 1B). This demonstrates that the subcutaneous cellular vaccines induced antigen-specific immune responses that were able to delay and/or prevent the growth of tumors expressing the corresponding antigens.

Intramuscular Expression of Tumor Antigens MAGE-1 and MAGE-3 Induces Protective Tumor Immunity

Genetic immunization by intramuscular injection of purified DNA has been shown to induce both cellular and humoral immune responses (31,32). DNA immunization against human carcinoembryonic antigen (CEA) (33) or CD4 (34) induced protective immunity against challenge with tumor cells expressing the corresponding antigens. While both CEA and CD4 were expressed at the surface of tumor cells, many melanoma antigens including MAGE-1, MAGE-3, and tyrosinase (4,16–18) are intracellular proteins and may therefore be less immunogenic because they do not stimulate humoral immunity and are not or less amenable to uptake and presentation by host antigen-presenting cells. To address this question, intramuscular vaccination against the cytoplasmic MAGE proteins was tested for its ability to induce systemic anti-tumor immunity and result in rejection of MAGE-expressing tumors. The cDNAs for MAGE-1 and MAGE-3 were subcloned into the vector pBK-CMV in which transcription is controlled by the human cytomegalovirus (CMV) enhancer/promoter region. Plasmid DNAs encoding MAGE-1 (pCMV-MAGE-1) and MAGE-3 (pCMV-MAGE-3) were injected into muscles of mice, and the animals were challenged 2 weeks later with lethal doses of B16 melanoma cells. Two injections of 170 µg pCMV-MAGE-1 or pCMV-MAGE-3 expression plasmids significantly delayed tumor development and resulted in 80 and 20% of the mice surviving a challenge with 1.5 × 106B16 tumor cells expressing the corresponding antigens (Fig. 2A). As with the cellular vaccines, immunization against MAGE-1 resulted in higher protection than immunization against MAGE-3, but the reason for this is unknown. Even a single intramuscular injection of 100 µg pCMV-MAGE-1 resulted in 37.5% survival after challenge with 2 × 106 B16-MAGE-1 tumor cells and was at least as efficient at inducing tumor protection as vaccination with MAGE-1-transduced embryonic fibroblasts (Fig. 2B). The fact that in this experiment only one out of eight (12.5%) mice immunized with EF-MAGE-1 cells survived may be due to the higher dose of tumor cells used for challenge (2 × 106) compared with the previous experiment (Fig. 1A; 1.25 × 106 B16-MAGE-1 cells). To our knowledge, these results are the first demonstration that genetic immunization can induce rejection of tumors expressing cytoplasmic antigens, although this approach has been used to immunize against intracellular antigens from viruses (32,35).

Fig. 2
figure 2

Immunization against B16 tumor cells expressing MAGE-1 and MAGE-3 by intramuscular injection of plasmid DNA

Mice were immunized by injections of plasmids into both tibialis anterior muscles or subcutaneously with embryonic fibroblasts and challenged subcutaneously with tumor cells 2 weeks after the last immunization. (A) Mice (n = 5/group) were injected twice separated by 2 weeks with 0.9% saline (□; O), 170 µg (85 µg/muscle) of pCMV-MAGE-1 (♦), or 170 µg of pCMV-MAGE-3 (▴) and challenged with 1.5 × 106 B16 tumor cells expressing MAGE-1 (□; ♦) or MAGE-3 (O; ▴). (B) Mice (n = 8/group) were injected once with 0.9% saline (□), 100 µg (50 µg/muscle) of pCMV-MAGE-1 (♦), 2.3 × 106 control embryonic fibroblasts (O), or 2.3 × 106 embryonic fibroblasts expressing MAGE-1 (▴). Animals were challenged with 2 × 106 B16-MAGE-1.

Full size image

Granulocyte-Macrophage Colony-Stimulating Factor and B7-1 Significantly Enhance Tumor Protection

Vaccinating mice with irradiated tumor cells that secrete granulocyte-macrophage colony-stimulating factor (GM-CSF) has been shown to induce potent and long-lasting anti-tumor immunity against parental tumor cells (25,36). Because GM-CSF promotes the differentiation and maturation of dendritic cells (37), which are highly efficient antigen-presenting cells (38,39), it has been suggested that the induction of antitumor immunity by GM-CSF is due to enhanced tumor antigen presentation (25). This hypothesis, however, has not been directly verified experimentally. We therefore investigated whether coexpression of GM-CSF can enhance vaccination against tumor antigens by the routes described above. In addition, the effects of the T cell costimulatory molecule B7-1 (40) were studied. Normal embryonic fibroblasts and fibroblasts expressing MAGE-1 and MAGE-3 were infected with recombinant retroviruses encoding murine GM-CSF or B7-1. Comparable expression of antigens, GM-CSF, and B7-1 in singly and doubly infected fibroblasts was confirmed. Vaccination of mice with fibroblasts coexpressing MAGE-1 and GM-CSF (EF-MAGE-1-GM-CSF) or MAGE-1 and B7-1 (EF-MAGE-1-B7-1) resulted in 50 and 40% survival after challenge with 2 × 106 B16-MAGE-1 tumor cells, while only 10% of the animals immunized with fibroblasts expressing MAGE-1 alone (EF-MAGE-1) survived (Fig. 3A). The survival rates after challenge with 2.5 × 106 B16-MAGE-3 melanoma cells of mice immunized with EF-MAGE-3-GM-CSF, EF-MAGE-3-B7-1 and EF-MAGE-3 were 60, 40, and 20, respectively (Fig. 3B). Reducing the tumor challenge to 106 B16-MAGE-3 cells, a dose that was still highly lethal for control-immunized mice, resulted in 100% survival in the former two groups of animals, while 40% of mice vaccinated with EF-MAGE-3 alone survived under these conditions (Fig. 3C). The same vaccines did not protect mice against challenge with 106 B16-tat cells (Fig. 3D). Furthermore, fibroblasts expressing GM-CSF or B7-1 alone failed to induce protective immunity against B16-MAGE-3 (Figs. 3 B and C). These results demonstrate that GM-CSF increases tumor protection by enhancing immune responses against the tumor antigens MAGE-1 and MAGE-3. B7-1 most likely enhanced tumor protection by costimulation of tumor-antigen-specific T cells (40).

Fig. 3
figure 3

Effects of granulocyte-macrophage colony-stimulating factor (GM-CSF) and B7-1 on immunization with genetically modified embryonic fibroblasts and naked DNA

(A) Mice (n = 10/group) were injected subcutaneously with 2 × 106 fibroblasts expressing MAGE-1 (◇), MAGE-1 and GM-CSF (○), MAGE-1 and B7-1 (△), GM-CSF (■), B7-1 (◆), or mock-infected fibroblasts (□), and challenged 2 weeks later with 2 × 106 B16-MAGE-1 melanoma cells. (B through D) Mice (n = 5/group) were injected subcutaneously with 2.5 × 106 fibroblasts expressing MAGE-3 (◇), MAGE-3 and GM-CSF (○), MAGE-3 and B7-1 (△), GM-CSF (■), B7-1 (◆), or mock-infected fibroblasts (□). Animals were challenged subcutaneously 2 weeks later with 2.5 × 106 B16-MAGE-3 (B), 1 × 106 B16-MAGE-3 (C), or 1 × 106 B16 tat (D) melanoma cells. (E) Mice (n = 10/group) were injected twice separated by 2 weeks with 0.9% saline (□), 100 µg of pCMV-MAGE-1 (◇), 30 jug of pCMV-MAGE-1 (○), 30 µg of pCMV-MAGE-1 and 100 ◯g of pCMV-GMCSF (△), or 30 µg of pCMV-MAGE-1 and 100 µg of pCMV-B7-1 (■). Animals were challenged 2 weeks after the second immunization with 2.5 × 106 B16-MAGE-1 cells.

Full size image

In order to test whether GM-CSF and B7-1 also enhance anti-tumor immunity after intramuscular immunization, mice were injected twice with different amounts of DNA encoding tumor antigen MAGE-1, in the absence or presence of 100 µg of pCMV-GM-CSF or 100 µg of pCMV-B7-1. Control mice received two injections of saline. Mice were challenged 2 weeks after the second immunization with 2.5 × 106 B16 cells expressing MAGE-1 or with B16 cells expressing SIV tat. Fifty percent of the mice injected twice with 100 µg pCMV-MAGE-1 survived this challenge for at least 75 days (termination of experiment), and neither GM-CSF nor B7-1 increased tumor protection after immunization with 100 µg of pCMV-MAGE-1. However, when the amount of MAGE-1 antigen was reduced, the immune-stimulatory effects of GM-CSF and B7-1 became apparent. As shown in Fig. 3E, none of the animals immunized twice with 30 µg of pCMV-MAGE-1 survived; all animals of this group developed tumors within about 10 days similarly to saline-injected control mice. In contrast, two injections of 30 µg of pCMV-MAGE-1 together with 100/ig of pCMV-GM-CSF or 100 µg of pCMV-B7-1 caused a significant delay in tumor development and resulted in 20 and 30% long-term surviving animals, respectively (Fig. 3E). None of the mice survived a challenge with B16 cells expressing SIV tat protein, and immunization with pCMV-GM-CSF alone or pCMV-B7-1 alone did not induce any tumor protection against B16-MAGE-1. Comparable effects of GM-CSF and B7-1 were observed when mice were vaccinated against B16-MAGE-3 with pCMV-MAGE-3 (data not shown). Taken together, these experiments show that intramuscular immunization by DNA injection induces antigen-specific tumor protection in a dose-dependent manner and that coinjection of plasmids encoding GM-CSF or B7-1 converts undetectable immune responses after injection of a low amount of antigen DNA to appreciable tumor protection.

T Cell Responses Mediating Tumor Rejection

To determine whether helper T and cytotoxic T cells are required for tumor protection, normal C57BL/6 mice as well as CD4−/− (29) and CD8−/− (30) mice that had been backcrossed to the same genetic background were immunized once with either embryonic fibroblasts expressing MAGE-1 or intramuscularly with pCMV-MAGE-1, in the presence or absence of GM-CSF or B7-1, and injected 2 weeks later with 1.5 × 106 B16-MAGE-1 melanoma cells. Neither CD4−/− nor CD8−/− mice were protected against tumor challenge (Fig. 4), indicating that both CD4+ and CD8+ T cells are required for tumor protection.

Fig. 4
figure 4

Requirement of CD4 + and CD8 + T cells for tumor rejection

Mice were immunized once subcutaneously with 2.5 × 106 embryonic fibroblasts expressing MAGE-1 (EF-MAGE-1) or intramuscularly with 100 µg of plasmid pCMV-MAGE-1 and injected 2 weeks later with 1.5 × 106 B16-MAGE-1 cells. Wild type: normal C57BL/6 mice; CD4−/−; CD4-deficient C57BL/6 mice; CD8−/−: CD8-deficient C57BL/6 mice.

Full size image

Discussion

The isolation and characterization of tumor-specific and tumor-associated antigens that elicit specific cytotoxic T lymphocytes in patients has caused widespread interest in exploiting these molecules as potential targets for tumor immunotherapy (41). MAGE-1 and MAGE-3 are two clinically important members of the MAGE gene family, which are expressed in many melanomas and other human tumors, but not in normal tissues, except for some cells of the testis. Their high tumor specificity and expression in a variety of tumors makes them attractive targets for cancer immunotherapy. By transducing B16 melanoma cells with retroviruses encoding MAGE-1 and MAGE-3, we generated a mouse tumor system that allowed us to study whether immunization of syngeneic C57BL/6 mice against MAGE antigens could elicit protective responses against tumors expressing these antigens. We chose the B16 tumor model because B16 cells are nonimmunogenic (25) and introduction of MAGE antigens into B16 melanoma cells did not alter their growth rate or tumorigenicity in any way as compared to parental B16 cells. Thus, although MAGE antigens are foreign to the mouse, B16-MAGE melanoma cells were never rejected spontaneously and grew indistinguishably from wild-type B16 cells (data not shown). Here we investigated whether genetic immunization against MAGE-1 and MAGE-3 can induce specific anti-tumor immunity and cause rejection of B16 melanoma cells expressing these antigens, and compared this method to an ex vivo approach using genetically modified syngeneic fibroblasts as a vaccine. We show that both intramuscular expression of MAGE-1 and MAGE-3 by direct injection of plasmid DNA and subcutaneous injection of syngeneic embryonic fibroblasts expressing these antigens induces antigen-specific immune responses that delay and/or prevent the development of tumors expressing the corresponding antigens in a significant fraction of mice. In contrast, no protection was obtained against the same parental B16 cells expressing a different antigen, SIV tat. Both CD4+ and CD8+ T cells were required for tumor protection since immunized “knock-out” mice lacking these molecules developed tumors within a similar period as mock-immunized wild-type mice. Intramuscular immunization was at least as efficient as antigen-expressing fibroblasts at inducing protective immunity. To our knowledge, our results are the first demonstration that genetic immunization can induce rejection of tumors expressing cytoplasmic antigens.

In our hands, DNA vaccines did not affect the progression of day 7-established tumors (5 mm). There may be several reasons for this. Firstly, the amount of antigen expression in the muscle may be too low to induce sufficient immune responses against an established tumor burden. Secondly, because both the B16 and CT26 tumors used in these studies grew very quickly (mice in control groups had to be sacrificed between 15 and 20 days after tumor injection), there was no time for the booster immunizations which had increased tumor protection in the tumor challenge model (data not shown). Finally, it has been shown that established tumors can produce factors that suppress an antitumor immune response (42–45) and it is conceivable that such a mechanism may have been involved in our system as well.

Anti-tumor immunization by both the intramuscular and subcutaneous route was enhanced by GM-CSF and B7-1, resulting in fewer mice with tumors, delayed or arrested tumor growth, and significantly increased overall survival. Vaccination of mice with GM-CSF-secreting irradiated B16 melanoma cells has previously been shown to induce anti-tumor immunity against normal B16 melanoma cells. This effect has been attributed to enhanced tumor antigen presentation by GM-CSF by promoting the differentiation and maturation of dendritic cells (25). It has, however, been difficult to demonstrate that GM-CSF indeed enhances immune responses to specific tumor antigens, since the same (tumor) cells were used for both vaccination and challenge, and the antigen had not been defined on these tumors. In contrast, in our model MAGE-1 and MAGE-3 are likely to be the only antigens common to the modified fibroblasts, injected muscle cells, and B16 melanoma cells. Consequently, the increased tumor protection obtained by co-expressing GM-CSF should be the result of enhanced immune responses against these antigens. The fact that GM-CSF alone (in the absence of tumor antigen) failed to induce protective immunity against B16-MAGE-1 or B16-MAGE-3, and that protection was specific for tumors expressing MAGE-1 or MAGE-3, suggests that GM-CSF indeed causes increased tumor protection by enhancing the presentation of and immune responses against these tumor antigens. A similar effect of GM-CSF on intramuscular immunization against the rabies virus G protein was demonstrated previously (46). Taken together, the results strongly support the hypothesis that enhanced tumor protection after coexpression of GM-CSF is due to increased immune responses against specific tumor antigens, presumably mediated by enhanced antigen presentation by dendritic cells.

The stimulation of tumor protection by co-expressing B7-1 was most likely due to increased costimulation of MAGE-specific T cells (40,47,48). This notion is supported by a recent study which showed that mice immunized with a mixture of recombinant vaccinia viruses encoding the human carcinoembryonic antigen (CEA) and B7-1 have enhanced CEA-specific T cell responses and antitumor immunity as compared to mice immunized with either vaccinia virus alone (49). B7-1 has been shown to stimulate the development of Th1 type helper T cells (50) which secrete cytokines that induce cellular immunity (51) believed to be important for tumor rejection. However, the enhancement of antitumor immunity by B7-1 in our experiments may be more likely caused by direct costimulation of antigen-specific cytotoxic T cells (47,48), since embryonic fibroblasts and muscle cells do not express MHC class II molecules. Alternatively or in addition, expression of B7-1 by embryonic fibroblasts and muscle cells may have mediated their recognition and lysis by natural killer cells, as has been shown for B16 cells expressing high levels of B7-1 (52). This could have resulted in increased release of MAGE antigens for uptake and presentation by bone marrow-derived antigen-presenting cells, a mechanism that has been implicated in the generation of anti-tumor immunity caused by tumor cell vaccines (53).

Since MAGE antigens are not expressed in normal human tissues, except testis, it is unlikely that tolerance against them has been established (54). This is consistent with the presence of MAGE-specific cytotoxic T lymphocytes (CTLs) in melanoma patients expressing certain MHC class I haplotypes (10,19–21). Coexpression of GM-CSF and B7-1 with MAGE-1 and MAGE-3 in autologous antigen-presenting cells of patients may boost the immune response of these lymphocytes against the MAGE antigens and may be exploited as a tumor therapy. This is supported by the recent demonstration that immunization of melanoma patients with autologous antigen-presenting cells pulsed in vitro with a MAGE-1 nonapeptide stimulated tumor-reactive CTLs in situ (23). Our results further suggest that investigation of intramuscular immunization against MAGE antigens as a therapy against melanomas and other MAGE-expressing tumors in humans may be warranted in patients with slow tumor progression that would allow for multiple immunizations, or in combination with other immunotherapies. Genetic immunization, if proven safe, would have the advantage of circumventing the isolation and ex vivo manipulation of the patient’s antigen-presenting cells or tumor-infiltrating lymphocytes. In addition, mixing of Plasmids encoding tumor antigens and cytokines to enhance anti-tumor immunity could be easily accomplished. The significance of the fact that GM-CSF and B7-1 augmented tumor immunity only for low amounts of antigen-encoding DNA is unclear. The importance of this effect depends on whether the amount of antigen DNA that can be delivered is limiting and on the intrinsic immunogenicity of the antigen. The methods described in this work should be applicable to other tumor antigens such as the E6 and E7 proteins expressed by human papilloma virus-induced cervical carcinomas (55), HER-2/neu and prostate-specific antigen, which are overexpressed in ovarian (56) and prostate (57) cancers, respectively, as well as the melanoma antigens MART-1, tyrosinase, gp100 (54), BAGE (2), and GAGE (9).

References

  1. Bakker AB, Schreurs MW, de Boer AJ, et al. (1994). Melanocyte lineage-specific antigen gp100 is recognized by melanoma-derived tumor-infiltrating lymphocytes. J. Exp. Med. 179: 1005–1009.

    Article  CAS  PubMed  Google Scholar

  2. Boel P, Wildmann C, Sensi ML, et al. (1995). BAGE: A new gene encoding an antigen recognized on human melanomas by cytolytic T lymphocytes. Immunity 2: 167–175.

    Article  CAS  PubMed  Google Scholar

  3. Boon T, Cerottini JC, Van den Eynde B, van der Bruggen P, Van Pel A. (1994). Tumor antigens recognized by T lymphocytes. Annu. Rev. Immunol. 12: 337–365.

    Article  CAS  PubMed  Google Scholar

  4. Brichard V, Van Pel A, Wolfel T, et al. (1993). The tyrosinase gene codes for an antigen recognized by autologous cytolytic T lymphocytes on HLA-A2 melanomas. J. Exp. Med. 178: 489–495.

    Article  CAS  PubMed  Google Scholar

  5. Castelli C, Storkus WJ, Maeurer MJ, et al. (1995). Mass spectrometric identification of a naturally processed melanoma peptide recognized by CD8+ cytotoxic T lymphocytes. J. Exp. Med. 181: 363–368.

    Article  CAS  PubMed  Google Scholar

  6. Cox AL, Skipper J, Chen Y, et al. (1994). Identification of a peptide recognized by five melanoma-specific human cytotoxic T cell lines. Science 264: 716–719.

    Article  CAS  PubMed  Google Scholar

  7. Gaugier B, Van den Eynde B, van der Bruggen P, et al. (1994). Human gene MAGE-3 codes for an antigen recognized on a melanoma by autologous cytolytic T lymphocytes. J. Exp. Med. 179: 921–930.

    Article  Google Scholar

  8. Kawakami Y, Eliyahu S, Delgado CH, et al. (1994). Cloning of the gene coding for a shared human melanoma antigen recognized by autologous T cells infiltrating into tumor. Proc. Natl. Acad. Sci. U.S.A. 91: 3515–3519.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  9. Van den Eynde B, Peeters O, De Backer O, Gaugier B, Lucas S, Boon T. (1995). A new family of genes coding for an antigen recognized by autologous cytolytic T lymphocytes on a human melanoma. J. Exp. Med. 182: 689–698.

    Article  PubMed  Google Scholar

  10. van der Bruggen P, Traversari C, Chomez P, et al. (1991). A gene encoding an antigen recognized by cytolytic T lymphocytes on a human melanoma. Science 254: 1643–1647.

    Article  PubMed  Google Scholar

  11. De Plaen E, Arden K, Traversari C, et al. (1994). Structure, chromosomal localization, and expression of 12 genes of the MAGE family. Immunogenetics 40: 360–369.

    Article  CAS  PubMed  Google Scholar

  12. Muscatelli F, Walker AP, De Plaen E, Stafford AN, Monaco AP. (1995). Isolation and characterization of a MAGE gene family in the Xp21.3 region. Proc. Natl. Acad. Sci. U.S.A. 92: 4987–4991.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  13. Patard JJ, Brasseur F, Gil-Diez S, et al. (1995). Expression of MAGE genes in transitional-cell carcinomas of the urinary bladder. Int. J. Cancer 64: 60–64.

    Article  CAS  PubMed  Google Scholar

  14. Russo V, Traversari C, Verrecchia A, Mottolese M, Natali PG, Bordignon C. (1995). Expression of the MAGE gene family in primary and metastatic human breast cancer: Implications for tumor antigen-specific immunotherapy. Int. J. Cancer 64: 216–221.

    Article  CAS  PubMed  Google Scholar

  15. Takahashi K, Shichijo S, Noguchi M, Hirohata M, Itoh K. (1995). Identification of MAGE-1 and MAGE-4 proteins in spermatogonia and primary spermatocytes of testis. Cancer Res. 55: 3478–3482.

    PubMed  CAS  Google Scholar

  16. Amar-Costesec A, Godelaine D, Stockert E, van der Bruggen P, Beaufay H, Chen YT. (1994). The tumor protein MAGE-1 is located in the cytosol of human melanoma cells. Biochem. Biophys. Res. Commun. 204: 710–715.

    Article  CAS  PubMed  Google Scholar

  17. Kocher T, Schultz-Thater E, Gudat F, et al. (1995). Identification and intracellular location of MAGE-3 gene product. Cancer Res. 55: 2236–2239.

    PubMed  CAS  Google Scholar

  18. Schultz-Thater E, Juretic A, Dellabona P, et al. (1994). MAGE-1 gene product is a cytoplasmic protein. Int. J. Cancer 59: 435–439.

    Article  CAS  PubMed  Google Scholar

  19. Traversari C, van der Bruggen P, Luescher IF, et al. (1992). A nonapeptide encoded by human gene MAGE-1 is recognized on HLA-A1 by cytolytic T lymphocytes directed against tumor antigen MZ2-E. J. Exp. Med. 176: 1453–1457.

    Article  CAS  PubMed  Google Scholar

  20. van der Bruggen P, Bastin J, Gajewski T, et al. (1994). A peptide encoded by human gene MAGE-3 and presented by HLA-A2 induces cytolytic T lymphocytes that recognize tumor cells expressing MAGE-3. Eur. J. Immunol 24: 3038–3043.

    Article  PubMed  Google Scholar

  21. van der Bruggen P, Szikora JP, Boel P, et al. (1994). Autologous cytolytic T lymphocytes recognize a MAGE-1 nonapeptide on melanomas expressing HLA-Cw*1601. Eur. J. Immunol 24: 2134–2140.

    Article  PubMed  Google Scholar

  22. Hoon DS, Yuzuki D, Hayashida M, Morton DL. (1995). Melanoma patients immunized with melanoma cell vaccine induce antibody responses to recombinant MAGE-1 antigen. J. Immunol 154: 730–737.

    PubMed  CAS  Google Scholar

  23. Mukherji B, Chakraborty NG, Yamasaki S, et al. (1995). Induction of antigen-specific cytolytic T cells in situ in human melanoma by immunization with synthetic peptide-pulsed autologous antigen presenting cells. Proc. Natl Acad. Sci. U.S.A. 92: 8078–8082.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  24. Salgaller ML, Weber JS, Koenig S, Yannelli JR, Rosenberg SA. (1994). Generation of specific anti-melanoma reactivity by stimulation of human tumor-infiltrating lymphocytes with MAGE-1 synthetic peptide. Cancer Immunol Immunother. 39: 105–116.

    Article  CAS  PubMed  Google Scholar

  25. Dranoff G, Jaffee E, Lazenby A, et al. (1993). Vaccination with irradiated tumor cells engineered to secrete murine granulocyte-macrophage colony-stimulating factor stimulates potent, specific, and long-lasting antitumor immunity. Proc. Natl Acad. Sci. U.S.A. 90: 3539–3543.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  26. Riviere I, Brose K, Mulligan RC. (1995). Effects of retroviral vector design on expression of human adenosine deaminase in murine bone marrow transplant recipients engrafted with genetically modified cells. Proc. Natl Acad. Sci. U.S.A. 92: 6733–6737.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  27. Miller AD. (1990). Retrovirus packaging cells. Hum. Gene Ther. 1: 5–14.

    Article  CAS  PubMed  Google Scholar

  28. Danos O, Mulligan RC. (1988). Safe and efficient generation of recombinant retroviruses with amphotropic and ecotropic host ranges. Proc. Natl Acad. Sci. U.S.A. 85: 6460–6464.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  29. Rahemtulla A, Fung-Leung WP, Schilham MW, et al. (1991). Normal development and function of CD8+ cells but markedly decreased helper cell activity in mice lacking CD4. Nature 353: 180–184.

    Article  CAS  PubMed  Google Scholar

  30. Fung-Leung WP, Schilham MW, Rahemtulla A, et al. (1991). CD8 is needed for development of cytotoxic T cells but not helper T cells. Cell 65: 443–449.

    Article  CAS  PubMed  Google Scholar

  31. Tang DC, De Vit M, Johnston SA. (1992). Genetic immunization is a simple method for eliciting an immune response. Nature 356: 152–154.

    Article  CAS  PubMed  Google Scholar

  32. Ulmer JB, Donnelly JJ, Parker SE, et al. (1993). Heterologous protection against influenza by injection of DNA encoding a viral protein [see comments]. Science 259: 1745–1749.

    Article  CAS  PubMed  Google Scholar

  33. Conry RM, Lo Buglio AF, Loechel F, et al. (1995). A carcinoembryonic antigen polynucleotide vaccine has in vivo antitumor activity. Gene Ther. 2: 59–65.

    PubMed  CAS  Google Scholar

  34. Wang B, Merva M, Dang K, Ugen KE, Williams WV, Weiner DB. (1995). Immunization by direct DNA inoculation induces rejection of tumor cell challenge. Hum. Gene Ther. 6: 407–418.

    Article  CAS  PubMed  Google Scholar

  35. Major ME, Vitvitski L, Mink MA, et al. (1995). DNA-based immunization with chimeric vectors for the induction of immune responses against the hepatitis C virus nucleocapsid. J. Virol 69: 5798–5805.

    PubMed  PubMed Central  CAS  Google Scholar

  36. Levitsky HI, Lazenby A, Hayashi RJ, Pardoll DM. (1994). In vivo priming of two distinct antitumor effector populations: the role of MHC class I expression. J. Exp. Med. 179: 1215–1224.

    Article  CAS  PubMed  Google Scholar

  37. Inaba K, Inaba M, Romani N, et al. (1992). Generation of large numbers of dendritic 555 cells from mouse bone marrow cultures supplemented with granulocyte/macrophage colony-stimulating factor. J. Exp. Med. 176: 1693–1702.

    Article  CAS  PubMed  Google Scholar

  38. Guery JC, Adorini L. (1995). Dendritic cells are the most efficient in presenting endogenous naturally processed self-epitopes to class II-restricted T cells. J. Immunol. 154: 536–544.

    PubMed  CAS  Google Scholar

  39. Steinman RM. (1991). The dendritic cell system and its role in immunogenicity. Annu. Rev. Immunol. 9: 271–296.

    Article  CAS  PubMed  Google Scholar

  40. Allison JP. (1994). CD28-B7 interactions in T-cell activation. Curr. Opin. Immunol. 6: 414–419.

    Article  CAS  PubMed  Google Scholar

  41. Boon T, Coulie P, Marchand M, Weynants P, Wolfel T, Brichard V. (1994). Genes coding for tumor rejection antigens: perspectives for specific immunotherapy. In: DeVita VT, Hellmann S, Rosenberg SA (eds). Important Advances in Oncology. J.B. Lippincott Company: Philadelphia, pp. 53–69.

    Google Scholar

  42. Repique CJ, Kettering JD, Gridley DS. (1992). Immunosuppression derived from human B-lymphoblastoid and melanoma cell lines. Cancer Invest. 10: 201–208.

    Article  CAS  PubMed  Google Scholar

  43. Young MR, Wright MA, Coogan M, Young ME, Bagash J. (1992). Tumor-derived cytokines induce bone marrow suppressor cells that mediate immunosuppression through transforming growth factor beta. Cancer Immunol. Immunother. 35: 14–18.

    Article  CAS  PubMed  Google Scholar

  44. Kuppner MC, Hamou MF, Bodmer S, Fontana A, de Tribolet N. (1988). The glioblas-toma-derived T-cell suppressor factor/transforming growth factor beta 2 inhibits the generation of lymphokine-activated killer (LAK) cells. Int. J. Cancer 42: 562–567.

    Article  CAS  PubMed  Google Scholar

  45. Mizoguchi H, O’Shea JJ, Longo DL, Loeffler CM, McVicar DW, Ochoa AC. (1992). Alterations in signal transduction molecules in T lymphocytes from tumor-bearing mice [see comments]. Science 258: 1795–1798.

    Article  CAS  PubMed  Google Scholar

  46. ×iang Z, Ertl HC. (1995). Manipulation of the immune response to a plasmid-encoded viral antigen by coinoculation with plasmids expressing cytokines. Immunity 2: 129–135.

    Article  PubMed  Google Scholar

  47. Baskar S, Ostrand-Rosenberg S, Nabavi N, Nadler LM, Freeman GJ, Glimcher LH. (1993). Constitutive expression of B7 restores immunogenicity of tumor cells expressing truncated major histocompatibility complex class II molecules. Proc. Natl. Acad. Sci. U.S.A. 90: 5687–5690.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  48. Townsend SE, Allison JP. (1993). Tumor rejection after direct costimulation of CD8+ T cells by B7-transfected melanoma cells. Science 259: 368–370.

    Article  CAS  PubMed  Google Scholar

  49. Hodge JW, McLaughlin JP, Abrams SI, Shupert WL, Schlom J, Kantor JA. (1995). Admixture of a recombinant vaccinia virus containing the gene for the costimulatory molecule B7 and a recombinant vaccinia virus containing a tumor-associated antigen gene results in enhanced specific T-cell responses and antitumor immunity. Cancer Res. 55: 3598–3603.

    PubMed  CAS  Google Scholar

  50. Kuchroo VK, Das MP, Brown JA, et al. (1995). B7-1 and B7-2 costimulatory molecules activate differentially the Thl/Th2 developmental pathways: application to autoimmune disease therapy. Cell 80: 707–718.

    Article  CAS  PubMed  Google Scholar

  51. Seder RA, Paul WE. (1994). Acquisition of lymphokine-producing phenotype by CD4+ T cells. Annu. Rev. Immunol. 12: 635–673.

    Article  CAS  PubMed  Google Scholar

  52. Wu TC, Huang AY, Jaffee EM, Levitsky HI, Pardoll DM. (1995). A reassessment of the role of B7-1 expression in tumor rejection. J. Exp. Med. 182: 1415–1421.

    Article  CAS  PubMed  Google Scholar

  53. Huang AY, Golumbek P, Ahmadzadeh M, Jaffee E, Pardoll D, Levitsky H. (1994). Role of bone marrow-derived cells in presenting MHC class I-restricted tumor antigens. Science 264: 961–965.

    Article  CAS  PubMed  Google Scholar

  54. Pardoll DM. (1994). Tumour antigens. A new look for the 1990s [news; comment]. Nature 369: 357.

    Article  CAS  PubMed  Google Scholar

  55. zur Hausen H, and de Villiers EM. (1994). Human papillomaviruses. Annu. Rev. Microbiol. 48: 427–447.

    Article  PubMed  Google Scholar

  56. Rubin SC, Finstad CL, Federici MG, Scheiner L, Lloyd KO, Hoskins WJ. (1994). Prevalence and significance of HER-2/neu expression in early epithelial ovarian cancer. Cancer 73: 1456–1459.

    Article  CAS  PubMed  Google Scholar

  57. el-Shirbiny AM. (1994). Prostatic specific antigen. Adv. Clin. Chem. 31: 99–133.

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgments

We thank T. Boon for MAGE-1 and MAGE-3 complementary DNA clones and C. Gee for B16 tat cells. CD4−/− and CD8−/− mice were a kind gift of T. Mak. This work was supported by grants of the Schweizerische Nationalfonds (823A–037047) and the Roche Research Foundation (95–134) to HB and a grant of the National Cancer Institute (NCI CA63399) to RCM.
