Genetically Transferred Central and Peripheral Immune Tolerance via Retroviral-Mediated Expression of Immunogenic Epitopes in Hematopoietic Progenitors or Peripheral B Lymphocytes



Based on the hypothesis that IgGs are potent tolerogens and that immature lymphohematopoietic antigen-presenting cells (APC), and even mature peripheral B cells, may be effective APC for tolerance induction, we designed an immunoglobulin fusion protein retroviral expression vector to test the role of B cells in a novel gene therapy strategy for the transfer of immune tolerance.


An immunodominant epitope (residues 12–26 of the A repressor cI protein) was fused in frame to an IgG heavy chain in a retroviral vector, which was used to infect either bone marrow cells or activated peripheral B lymphocytes. These cells were transferred into syngeneic recipients, who were subsequently challenged with the 12–26 peptide in adjuvant.


Bone marrow (BM) chimeras generated with retrovirally transduced bone marrow were shown to be profoundly unresponsive to the 12–26 peptide at both the humoral and cellular levels, but were competent to respond to an unrelated protein (lysozyme or PPD). Importantly, we also show that immunocompetent adult recipients infused with transduced mature, activated B lymphocytes, are rendered unresponsive by this treatment. Surprisingly, lymphoid-deficient BM progenitors from syngeneic SCID donors could also be transduced to produce tolerogenic APC.


Our data suggest that activated B cells are sufficient to be effective tolerogenic APC in immunocompetent adult mice, but that nonlymphoid cells may also induce tolerance in reconstituted hosts. This approach for gene-transferred tolerogenesis has the potential to be maintained indefinitely, and it requires only knowledge of cDNA sequences of target antigens.


A variety of experimental procedures have been described for the induction of antigen-specific tolerance in neonates and adults (13). In the immunocompetent adult, however, tolerance induction has been generally more difficult. Tolerance to foreign transplantation antigens or viral cytotoxic T lymphocyte (CTL) epitopes, for example, has previously been shown to be most effective primarily in models where hematopoietic or lymphoid ablation is followed by reconstitution with antigen-expressing bone marrow (BM)-derived antigen-presenting cells (APC) (48). For autoimmune disease, a variety of studies have focused on the acquired induction of tolerance to autoantigens to prevent and/or ameliorate disease. For example, in murine models for multiple sclerosis and diabetes, prevention of disease has been successfully accomplished with thymic, oral, and intravenous, high-dose administration of target autoantigens (911).

A strategy for the induction of clinically relevant tolerance can be indirectly derived from the original experiments demonstrating tolerance induction to foreign major histocompatibility complex (MHC) antigens via the injection of allogeneic hematopoietic cells into neonates (1). In adults, however, attempts to induce tolerance to foreign grafts by injecting accessory cell-depleted splenocytes (12,13) or syngeneic transfected cells (14) has met with limited success. The advent of efficient methods for gene transfer into hematopoietic cells may in theory enable the expression of foreign antigens for the induction of tolerance via pathways similarly used for tolerance induction to naturally expressed determinants (e.g., MHC, Mls antigens) in bone marrow chimeras (1518). Since such approaches have usually required some degree of myeloablation, a more desirable approach would be to adoptively transfer genetically modified peripheral APC (19), which engraft more efficiently in the unconditioned host. An excellent candidate for such a strategy would be the peripheral B lymphocyte that has been described to possess immune-modulating characteristics. Previous studies have shown that, in some circumstances, antigen-presenting B cells are capable of inducing peripheral tolerance in mature, naive T cells in vivo (2023), or even previously activated T cell clones in vitro (24).

To test the potential for gene-transferring model target antigens into autologous APC, as well as the role of B cells in this process for the induction of specific immune tolerance, we created a recombinant, replication-defective retroviral vector for the expression of a foreign class II MHC-restricted immunodominant epitope. Our model determinant, residues 12–26 from cI λ repressor protein (p1-102), contains both a T and B cell epitope (25,26) and has been fused at the N terminus of a murine IgG H chain. Engineered Ig expressing heterologous epitopes has been described for the potentiation of peptidespecific immunity (27), and we have recently expanded this approach by describing the tolerogenic properties of a soluble engineered 12–26-IgG fusion protein (28). Here we show that bone marrow chimeras generated with retrovirally transduced marrow or even immunocompetent adult recipients infused with transduced mature, activated B lymphocytes are highly unresponsive to the peptide at both the humoral and cellular levels. The genetic transfer and expression of immunogenic epitopes or whole complex antigens by appropriate “nonprofessional” APC may have great utility for the specific elimination of undesirable immunity associated with autoimmune states (911), recombinant clotting factor administration (29), and gene therapy protocols (30,31).

Materials and Methods

Replication-Defective Retroviral Vectors and Gene-Transfer Protocols

The 12–26-IgG1 H chain cDNA was derived by reverse transcriptase-polymerase chain reaction (RT-PCR) from J558L myeloma cells, transfected with the rearranged genomic construct (28), and subcloned into retroviral vector MBAE (32) containing long terminal repeats (LTR), ψ+ packaging signals, a neomycin resistance gene, and cloned human β-actin promoter sequences. PCR primers encoded 5′ Ig H chain leader and 3′ IgG1 as well as Sal I restriction site sequences: “VH 5′ primer”: TGG ACT AAG TCG ACA CCA TGG GAT GGA GC; “G1 3′ primer”: TCG GAA GGG TCG ACG GAT CAT TTA CCA GGA GA. A single batch of the ψ-2 packaging line (F6P) was prepared with recombinant plasmid MBAE.BAK and assayed for helper virus via horizontal spread of neomycin resistance with NIH 3T3 cells. Each aliquot was assayed before use and found to contain 105–106 (usually ≥5 × 105) neomycin-resistant NIH 3T3 CFU/ml. Ecotropic F6P was prepared by “ping-pong” amplification using amphotropic line PA317. Producer lines were stored in liquid nitrogen and freshly thawed cells were re-titered and utilized for each individual experiment.

B cell lines (CH31, A20, J558L, and NS-1; all from ATCC, Rockville, MD) were transduced with recombinant retrovirus via co-culture with adherent F6P cells for 24–48 hr in the presence of 6 µg/ml polybrene (Sigma). Cells in suspension were washed and recultured in 1 mg/ml G418 for selection of stable transductants prior to genomic Southern blot, RT-PCR, ELISA, or antigen-presentation studies. Infection of BM progenitors and quantitation of G418-resistant colony-forming cells (CFC) have been described elsewhere (3335). BM was harvested from femurs and tibiae of 6- to 8-week-old BALB/c donors injected IV with 150 mg/kg 5-fluorouracil 3–4 days previously. Erythrocyte-depleted BM was co-cultured (5 × 106/ml) with irradiated (2,000 rads) F6P or ψ-2 parental cells (mock transduction). Ten-ml cultures in complete RPMI 1640 with 15% FCS were incubated at 37°C, 5% CO2 for 48 hr, and they included 200 U/ml each of IL-3, IL-6, and IL-7 (Genzyme). Four µg/ml polybrene was added to co-culture during the last 24 hr of infection.

Splenic B cells were similarly infected in vitro via co-culture with viral-producing F6P or parental ψ-2 (mock transduction). Peripheral B cells were purified with anti-T cell antibody cocktail plus complement and Percoll density gradients (60–70% layers). Purified B cells were prestimulated with 50 µg/ml bacterial lipopolysaccharide (LPS, E. coli 055:B5, Sigma) overnight, and recultured (3 × 106/ml, 5 ml cultures) with irradiated F6P in the presence of 4 µg/ml polybrene and 50 µg/ml LPS for an additional 24 hr.

Tolerance Induction and Measurement of Peptide-specific Cellular and Humoral Immunity

Adult (6- to 8-week-old) BALB/c recipients (Jackson Labs) were sublethally irradiated (200–600 rads total body irradiation) and injected intravenously (lateral tail vein) with 1–2 × 106 gene-transferred or mock-transduced BM progenitor cells. Unconditioned, normal BALB/c were similarly injected with >1 × 107 gene-transferred LPS blasts. All cells were washed extensively in serum-free medium and injected IV in a volume of 500 µl. Recipients were analyzed for expression of recombinant retrovirus as well as immune tolerance to 12–26 peptide 2–12 weeks later. Tolerized recipients were immunized for cellular or humoral immune responses essentially as described elsewhere (25,28). Animals were subcutaneously injected at the base of the tail with 50 µg synthetic 12–26 peptide emulsified 1:1 CFA. In some experiments, animals were also injected with 10 µg hen egg lysozyme (HEL) in CFA, intraperitoneally (IP) as a specificity control. Two weeks later, mice received an additional IP boost of 50 µg peptide and 10 µg HEL in saline. Antibody titers were determined from serum bleeds 8 days after secondary boosts. Splenic memory T cell responses were measured in vitro 6–8 weeks following these secondary challenges by reculturing (in triplicate) purified T cells (3 × 106/ml) with irradiated (2,500 rads) BALB/c splenocytes (1 × 106/ml) and dilutions of synthetic peptide. Serum peptide-specific or HEL-specific IgG responses were determined by ELISA by coating plates with 50 µg/ml synthetic peptide or 5 µg/ml HEL as described elsewhere (25,28). Cellular responses from draining popliteal and inguinal LN cells were assayed 9 days after immunizing mice in the hind footpads with 20 µg peptide emulsified in CFA. On Day 3, (triplicate) cultures were pulsed with 1 µCi/well of [3H]thymidine and incubated an additional 14–20 hr for the determination of proliferative responses. Cells were then harvested on glass fiber filters and incorporated 3H was detected using a direct β-counter (Packard, Matrix 9600). IL-2 and IL-4 cytokine production was quantitated by CTL line (CTLL) and CT.4S bioassays, respectively, using serial dilutions of LN or splenic culture supernatants and recombinant cytokine standards (Genzyme). Dilutions of anti-IL-2 mAb S4B6 and anti-IL-4 mAb 11B11 (ATCC) were included to establish specificity. Murine IFN-γ was determined with a commercially available ELISA kit (Intertest-γ, Genzyme).

RT-PCR and Immunologic Methods

Detection of 12–26-IgG transcripts in transduced cell lines or hematopoietic tissue from BM-injected mice was performed with a 12–26 sequence RNA-PCR assay. Primers were designed to amplify 5′ immunoglobulin leader sequence (VH5′ primer, as above) and 3′ 12–26 sequence, (3′ pep primer): GGC AAC AGA AGC TTT CAC TTC TTC TTC TCG TAT. Briefly, 1–5 µg of total RNA from various tissue was reverse transcribed (2 rounds) with AMV reverse transcriptase, dNTPs, and oligo dT and random hexamer primers (Invitrogen cDNA cycle kit) at 42°C. The resultant cDNA was amplified with 5′ and 3′ primers described above and Taq polymerase (Perkin-Elmer, Cetus). PCR conditions were 45 sec at 93°C, 2 min at 47°C, and 2 min at 72°C for 35–40 cycles. Amplified DNA products were loaded (1/10–1/100 sample) onto 2% agarose/TBE gels and subsequently transferred onto nylon membranes for Southern blot analysis. 12–26 sequences were confirmed in RT-PCR-amplified DNA samples with a γ-32P-labeled oligonucleotide (oligo Ig-one) encoding 12–26 but which does not overlap with the 3′ PCR primer: TGA TCT ACT GCA GCT GGA GGA CGC GCG GCG G. Tissue RNA samples were compared via β-actin RT-PCR using commercially available primers (Stratagene).

12–26-IgG H chain protein was detected in culture supernatants of transduced cell lines or in sera of mice injected with gene-transferred cells, via its ability to bind to the NIP (5-iodo-4-hydroxy-3-nitrophenylacetyl) hapten using a modified NIP-binding ELISA (36). Briefly, dilutions of culture supernatants or sera were incubated on ELISA plates coated with NIP-gelatin conjugate (10 µg/ml) and subsequently probed with goat anti-mouse IgGr-AP as a secondary reagent. Standard curves with affinity-purified 12–26-IgG from supernatants of transfected J558L were used for quantitation.

Results and Discussion

A recombinant retroviral vector (32) was modified by inserting a PCR-derived cDNA encoding the 12–26-IgG H chain sequence (Fig. 1A), and an ecotropic packaging line (F6P) was generated for the in vitro infection of cell lines and hematopoietic tissue via co-culture methods (3335). For initial studies, a variety of B cell lines at various stages of differentiation were transduced, including CH31 (immature), A20 (mature, activated), NS-1, and J558L (plasmacytomas). Intact proviral integration in transduced G418-resistant A20 cells could be verified by genomic Southern blotting using a DNA probe specific for 12–26 sequence (Fig. 1A). More importantly, 12–26-IgG heavy (H) chain can assemble with endogenous light chains in transduced B cell lines, which can be expressed as a membrane-surface protein (Fig. 1B) or secreted into cultured supernatants (50–80 ng/ml) in NS-1 and J558L myelomas. Immunoprecipitation of secreted 12–26-IgG and immunoblot analysis with a peptide-specific monoclonal antibody (B3.11) could directly demonstrate the expression of 12–26 peptide (Fig. 1C).

Fig. 1
figure 1

B cell expression, epitope recognition, and direct antigenic presentation of retrovirally synthesized peptide-IgG

(A) Structure and proviral integration of murine Moloney leukemia retroviral construct MBAE.BAK. Ten micrograms of genomic DNA from transduced, G418-resistant (+) or control (−) A20 cells was digested with Sac I, fractionated on 0.8% agarose. Southern-blotted, and probed with 32P-labeled DNA probe containing three tandem copies of 12–26 sequence. Sac I digestion releases an 5.1 kb proviral genome. (B) Surface IgG1 expression on transduced, G418-resistant (+) or control (−) A20 (sIgG2b+) or CH31 (sIgM+) B cell lines. Cells were probed with either goat anti-mouse IgG1 (adsorbed)-PE (Caltag) or biotinylated anti-mouse IgG1b (Pharmingen) plus streptavidin-FITC. Dashed lines show isotype-matched or secondary reagent controls. (C) Detection of 12–26 peptide on secreted Ig-peptide H chain. Culture supernatants from transduced, G418-resistant (+) or control (−) J558L myelomas were immunoprecipitated with either goat anti-mouse IgG1 agarose or NIP-sepharose beads. Samples were resolved on 10% SDS-PAGE, transferred onto nitrocellulose, blocked with 2% BSA, and probed with biotinylated mAb B3.11 (anti-12-26 epitope) plus streptavidin-AP as a secondary reagent. (D) Tissue expression of 12–26 mRNA in long-term (3 months) recipients of gene-transferred (+) or mocktransduced (−) BM progenitors. RNA from bone marrow (B), thymus (T), or spleen (S) was assayed by 12–26 sequence RT-PCR (25). One-tenth of each PCR reaction (except for A20 controls: 1/100th) was Southern blotted and probed with a noncomplementary 32P-labeled 12–26-specific oligonucleotide. For simplicity, only a subset of representative tissues are shown. (E) Direct presentation of endogenously synthesized peptide to 12–26-specific T cell hybrid, 9C127. Microcultures (200 µl) of transduced or control A20 cells were plated at various dilutions with 2 × 104 9C127 per well for 24 hr. T cell stimulation in the absence or presence of various blocking antibodies (lower right) was assayed via CTLL assay with serially diluted supernatants and recombinant IL-2 standards.

Although retrovirally synthesized gene products are expected to give rise primarily to processed peptides presented by MHC class I molecules, endogenously derived peptides can also be routed to endocytic class II MHC compartments in some cases (3739). Our initial hypothesis was that such a pathway would be enhanced for retrovirally encoded 12–26-IgG H chain due to the efficient nature of the immunoglobulin secretory pathway in targeting the endosomal compartment. To test for direct presentation of our model immunodominant class II-restricted peptide, we tested the ability of 12–26-IgG-transduced A20 cells to directly activate peptide-specific T cell hybrid 9C127, which recognizes 12–26 in the context of I-Ad (26). Efficient presentation of endogenously synthesized peptide could be demonstrated, and this effect could be blocked with antibodies to CD4 or class II MHC molecules (Fig. 1E). These studies predict that, in vivo, 12–26 peptide has the potential to be recognized directly by T cells from a variety of gene-transferred APC (lymphoid and nonlymphoid). Additionally, synthesis, light chain assembly, and secretion of 12–26-IgG H chain by B cells can potentially result in re-presentation by endogenous host APC.

Our next experiments tested the potential of genetically modified BM to specifically tolerize a regenerating immune repertoire (central tolerance induction). We therefore developed bone marrow chimeras in sublethally irradiated (200–600 rads) BALB/c by infusing 5-fluorouracil (FU)-pretreated donor BM that had been co-cultured with F6P. This protocol gives rise to newly developing lymphocytes and APC (lymphoid and nonlymphoid) that are derived from the transplanted BM progenitors expressing 12–26-IgG heavy chain, as well as radioresistant APC from the host. Mice were immunized 4–12 weeks post-infusion and 12–26 peptide-specific immune responses were measured (25,28). Analysis of hematopoietic tissue collected at sacrifice times using a peptide sequence-specific RT-PCR assay indicated that transcripts were expressed consistently and reproducibly in the bone marrow of all gene-transferred recipients, although variably in the thymus or spleen (a subset of these are illustrated in Fig. 1D). Furthermore, a very sensitive NIP-binding IgG1 ELISA was developed (36) that could detect secreted 12–26-IgG in the serum as a result of pairing with endogenous λ light chains specifically by stem cell-derived B lymphocytes. Although this assay detects only a fraction of H chain secreted by B cells (λ light chain-paired), expression could be detected in approximately one-third of all gene-transferred BM recipients (see also Table 1). Despite these variable serum expression patterns, dramatic and reproducible peptide-specific tolerance was observed in all recipients analyzed (22/22 total) of 12–26-expressing progenitor cells, which was demonstrated following immunization with synthetic peptide emulsified in complete Freund’s adjuvant (CFA). Specific T cell proliferative and cytokine responses of draining lymph node (LN) cells were significantly diminished (Fig. 2), as were anti-peptide antibody titers following priming and a secondary antigenic boost (Fig. 3).

Fig. 2
figure 2

Induction of peptide-specific cellular immune tolerance in adult bone marrow chimeras infused with peptide-Ig-expressing progenitor cells

BALB/c mice were sublethally irradiated (600 rads) and injected IV with 1−2 × 106 gene-modified or mocktransduced BM. Recipients were immunized with peptide in CFA 2 months post-infusion and draining LN cells were restimulated in vitro with dilutions of synthetic peptide and 25–50 µg/ml purified protein derivative (PPD, Connaught) in cRPMI 1640 with 0.5% heat-inactivated autologous serum. Stimulation indices (SI) represent ratios of proliferation to medium alone backgrounds (5,609 ± 2,271 cpm). IL-2 and IFN-γ were quantitated by CTLL and ELISA assays, respectively (24). Additional experiments also revealed a diminution of peptide-specific IL-4 release in LN of tolerized recipients (data not shown). Error bars signify standard error of the mean for 3 individual mice per group. This experiment was done at least twice with 3–4 mice per group with similar results.

Since our BM transduction protocol targets viral integration into early hematopoietic progenitors, and both the 5′ viral LTR and β-actin promoters are lineage-nonspecific, a variety of differentiated APC types may directly tolerize developing lymphocytes. We hypothesized that transduced, stem cell-derived nonlymphoid APC (e.g., monocytes, macrophages, and dendritic cells), which cannot synthesize light chains, and thus cannot secrete peptide-IgG, may also play a critical role in directly presenting transgenic peptide to developing lymphocytes. To test this hypothesis, we gene-transferred syngeneic BM from severe combined immunodeficiency (SCID) mice to analyze the tolerogenic potential of myeloid APC. Although hematopoietic tissue from SCID mice can be shown to be defective in developing mature lymphoid cells, myeloid lineage APC function remains intact (40). 5-FU-pretreated SCID or normal BALB/c donor BM was co-cultured with F6P, and stem cells were injected into sublethally irradiated normal BALB/c recipients (normal lymphocytes regenerate only from host stem cells in the case of SCID BM recipients). BM chimeras were rested for 2 months and subsequently immunized with 12–26 peptide for the measurement of humoral immune tolerance. Interestingly, peptide-specific tolerance induction was found to be comparable between recipients of either normal or lymphoid-deficient BM whereas mock-transduced BM recipients maintained high-titer humoral immunity (Fig. 3). Analysis of G418-resistant hematopoietic colony-forming cells from recipients of transduced normal or SCID BM showed that the proportion of BM-derived myeloid stem cells expressing our construct was similar (1–5%, Table 1).

Fig. 3
figure 3

Induction of peptide-specific humoral immune tolerance in adult bone marrow chimeras infused with peptide-Ig-expressing progenitor cells

BALB/c mice were sublethally irradiated with either (A) 200 rads, or (B) 600 rads and infused with 1−2 × 106 gene-transferred (+, triangles) or mock-transduced (−, circles) BM cells. Mice were primed and boosted for humoral responses either (A) 1 month or (B) 2 months post-infusion with synthetic 12–26 peptide, and with HEL as a specificity control. Nonmanipulated, immunized BALB/c always produced titers similar to recipients infused with mock-transduced BM cells (A, diamonds). Both total peptide-specific IgG (open symbols), or the main isotype IgG1 (closed symbols) were diminished in all experiments (both shown only for A). Normal BALB/c recipients in (B) received either 5-FU-pretreated normal BALB/c BM or SCID/BALB/c BM cells. Flow cytometry analysis at sacrifice time in (B) revealed comparable levels of CD4+ and Ig+ splenocytes in normal BALB/c reconstituted with either normal or SCID BM: (CD4+: 18–25%; Ig+: 40–65%). All experiments have been done at least twice with 3–5 mice per group with similar results.

Table 1 Expression of serum 12–26-IgG and G418-resistant BM progenitors in genetically tolerized BALB/c mice

Although antigenic shedding from 12–26-IgG heavy chain-“expressing” SCID myeloid cells and subsequent lymphoid APC re-presentation cannot be ruled out, these experiments strongly suggest that in addition to tolerogenesis by lymphoid APC (812), as well as secreted fusion IgG, transduced myeloid BM-derived APC can also share this potential, at least in the reconstituted recipient. This is important because engineered tolerogenic peptide may be “expressed” (processed) in professional, but nonactivated, APC that may would be capable of inducing tolerance in unprimed, developing T cells (cf. ref. 22). This result may explain the consistent tolerance observed in all recipients of normal transduced BM, regardless of detectable serum production of 12–26-IgG (B-lymphocyte-derived transgene). Thus, multiple pathways of tolerogenesis may be occurring in these hosts.

Although efficient induction of tolerance in developing lymphocytes could be readily and reproducibly accomplished with genetically modified BM, a more favorable approach for gene-transferred tolerogenesis would be to induce peptide-specific peripheral tolerance in the mature immune repertoire, without requirement for myeloablation. Since potent tolerance in normal, immune-competent recipients can be induced via injection of large numbers of mature B lymphocytes expressing H-Y (22) or Mls antigens (20), we wished to similarly test the tolerogenicity of peptide-IgG-transduced peripheral B cells. Our protocol consisted of stimulating Percoll gradient-purified splenic B cells to proliferate with bacterial lipopolysaccharide (LPS), brief co-culture with F6P, and subsequent IV injection into normal, immunocompetent BALB/c. This treatment resulted in an efficient suppression of peptide-specific humoral immunity comparable to that observed for bone marrow chimera experiments. Splenic memory T cell responses were measured approximately 3 months after immunization in these tolerized animals, and revealed a potent IL-2 and IL-4 cytokine reduction, which is indicative of effective tolerization in both Th1 and Th2 compartments, respectively (Fig. 4A). Furthermore, G418-resistant hybridomas could be generated from LPS-activated spleens of these tolerized mice by fusion with A20 lymphoma cells using polyethylene glycol (PEG). These hybrids were capable of stimulating peptide-specific 9C127 T cells directly (Fig. 4B), thus displaying that gene-transferred peripheral B cells are capable of persisting and presenting 12–26-IgG self-antigen for long periods of time for the induction and maintenance of peptide-specific tolerance. Whether this is due to tolerogenic B cell antigenic presentation or secretion of the fusion IgG in these recipients is not known, although both are likely. Such long-term persistence (>3–6 months) is in agreement with similar results for injection of normal (41) as well as genetically modified, LPS-activated peripheral B cells (19).

Fig. 4
figure 4

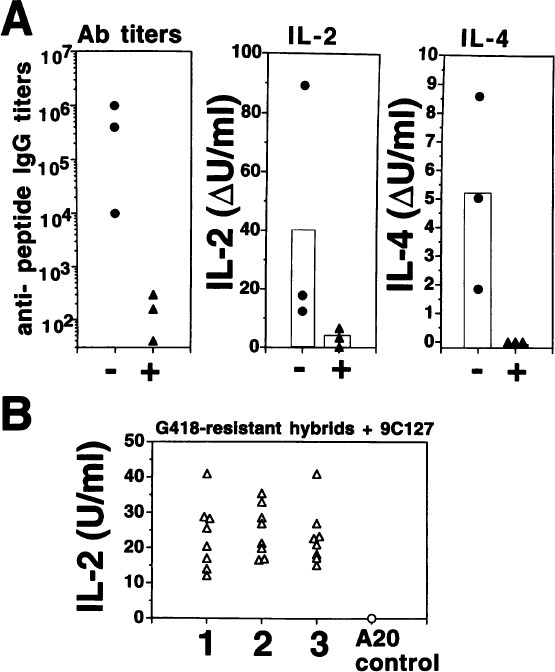

Peripheral tolerance induction in immunocompetent adults with gene-transferred peripheral B cells expressing engineered peptide-Ig

(A) Humoral and cellular tolerance induction. Nonirradiated BALB/c were injected with >1 × 107 LPS blasts co-cultured with retrovirus-producing F6P (+) or mock-transducing ψ-2 (−). One week later, mice were primed and boosted for humoral responses as before, and subsequently sacrificed 3 months later for analysis of splenic memory T cell responses (24). Cytokine release in individual splenic cultures was determined at 24 hr (IL-2) or 48 hr (IL-4); medium-alone background values were <1–2 U/ml and were subtracted for clarity (ΔU/ml). (B) Persistence of gene-transferred B cells. Hybridomas were also generated from spleens of tolerized mice by PEG fusion of A20 cells with LPS-activated splenocytes (48 hr, 50 µg/ml LPS). Hybridomas were selected in 1 mg/ml G418 and tested for their ability to activate the 9C127 T cell hybrid as above. Eight representative A20 hybridomas from each recipient (13) are shown.

These model studies outline a novel, efficient strategy by which foreign immunogens and target autoantigens may be delivered to the immune system in a tolerogenic manner as a soluble Ig fusion protein expressed in hematopoietic tissue. Genetic transfer of antigenic sequences either into a multipotential stem cell or in a peripheral B cell may permit the induction, and more importantly, the long-term maintenance of specific immune self-tolerance in the autologous host. Our choice of a model immunodominant peptide capable of inducing both high-titer IgG antibody responses (Th2-mediated), as well as vigorous cellular (Th1-mediated) responses underscores the versatility of our method. Although gene transfer of BM with class I MHC-restricted CTL epitopes efficiently induces tolerance (42), our approach of fusing antigenic sequence to immunoglobulin molecules likely allows for the efficient presentation of a retrovirally synthesized class II MHC-restricted epitope by both lymphoid and nonlymphoid cells, although we have not yet formally compared a membrane and secretable form of the fusion IgG. Furthermore, in addition to effective Th tolerance induction, the bivalent nature of the secreted form of the Ig-epitope molecule can also independently mediate effective peptide-specific B cell tolerance, most likely via Fc-mediated antibody feedback mechanisms (28). Thus, the potency of tolerance induction in our model system may be due to the efficiency of very low level expression of this unique tolerogen and may follow multiple pathways.

The use of tolerogenic peptide-Ig constructs may facilitate “tailor-designing” the immune response to a whole antigen by selectively inducing immunity (27) or tolerance to selected immunodominant as well as cryptic epitopes. Furthermore, in contrast to expressing heterologous epitopes in the CDR3 region of Ig H chains (27), fusion of antigenic sequences at the N terminus is not limited by size restrictions, and it can thus be adapted for expressing whole autoantigenic proteins such as factor VIII (29), myelin basic protein (10,11), or glutamic acid decarboxylase (9). Delivery of tolerogen as a gene sequence has many theoretical advantages over present tolerance induction protocols, since only the cDNA sequence of the target antigen needs to be known (thus bypassing protein purification strategies). More importantly, since experimentally acquired tolerance eventually wanes, expression and persistence of tolerogen in long-lived or multipotential hematopoietic tissue can potentially modulate a specific immune response permanently.

Another compelling application of genetic tolerogenesis is that an important obstacle to immune elimination of genetically altered cells that is encountered with gene therapy protocols. It has been demonstrated that autologous cells genetically modified with adenoviral and retroviral vectors have resulted in immune recognition of vector-encoded products and subsequent elimination of these transduced cells via both cellular and humoral immunity in immunocompetent recipients (30). Although immunity to low-level expression of viral proteins of first-generation. E1-deleted adenovirus will undoubtedly be reduced with further deletion or modification of vectors, rejection of the foreign transgenes expressed by such vectors has been revealed as an even more significant obstacle (31). Our data suggest that tolerogenic pretreatment of immunocompetent recipients with vector-transduced autologous APC expressing viral or foreign transgenes will allow for the prolonged expression and multiple administration of therapeutic transgenes in immunocompetent recipients without need for nonspecific immunosuppression.

Although solid evidence exists for the tolerogenic role of lymphohematopoietic APC in irradiated bone marrow chimeras, our experiments have exploited the potential for mature peripheral B cells to induce efficient peripheral tolerance in unconditioned adults. Our studies have for the first time utilized transduced LPS blasts as tolerogenic vehicles, although the mechanism involved for this approach is presently unknown. Previous reports describing tolerance induction via presentation of antigen by resting B cells to naive T cells has been proposed to stem from the poor expression of costimulatory molecules such as B7-1 and B7-2 (43). Antigen presentation by resting B cells has thus far been useful for the induction of tolerance in naive recipients, but ineffective in primed (22) or allo-MHC-reactive recipients (23) unless anti-gp39 (CD40-ligand) antibodies were simultaneously injected to prevent up-regulation of B cell costimulatory function. Paradoxically, however, as in our experiments, costimulation-competent LPS blasts have also been shown to be efficient tolerogenic APC in vivo for antigen-naive recipients (22) or in vitro for previously activated T cell clones (24). In parallel studies (44), we describe transgenic mice expressing a peptide-Ig construct specifically in the B cell compartment, which provides even more support on this point. Indeed, while both purified resting or LPS-activated 12–26-IgG transgenic B cells are highly tolerogenic if injected into normal, antigen-naive adults, only LPS-activated transgenic B cells are effective in tolerizing an ongoing immune response for previously primed recipients. These cells, of course, would have the advantage of both B cell antigen presentation plus secretion of the tolerogenic IgG.

Finally, modification of our protocol for the transduction of proliferating bone marrow-derived dendritic cells with peptide-Ig molecules may also allow for the efficient priming of Th and CTL for viral and tumor peptides and antigens. In summary, genetic transfer of antigenic sequences into peripheral APC, perhaps combined with transgenic expression of immune-modulating molecules such as CD95 (Fas ligand) (45) and CTLA-4 (46), is a very powerful approach for manipulating immune responses associated with autoimmunity, transplantation, and the administration of viral gene therapy vectors.
