Requirements for Enhanced Transgene Expression by Untranslated Sequences from the Human Cytomegalovirus Immediate-Early Gene

Abstract

Background

The cytomegalovirus immediate early (CMV IE) promoter has been widely used for heterologous expression. Further enhancements of gene expression from this potent promoter may allow for the development of improved gene transfer strategies. We aimed to determine whether inclusion of the first exon (5′ untranslated) and first intron of the CMV IE gene would increase heterologous transgene expression in primary target cells and to determine the sequences required for any observed increases.

Materials and Methods

Comparisons of reporter gene expression were made following transient transfection of vascular smooth muscle cells (VSMCs) with plasmids containing the first exon and intron from the CMV IE gene or deletional mutations. Comparisons were also made using a heterologous promoter (RSV).

Results

Gene expression from the CMV IE promoter was increased 5.7-fold in VSMC with the inclusion of the first exon and intron. Similar increases were seen with other target cells and from the heterologous RSV promoter. This increase was associated with an increase in steady-state mRNA. Deletion analyses demonstrated that the enhancement was dependent on the presence of the 5′ portion of the first exon while deletion of large segments within the intron was associated with similar levels of expression compared with the parental plasmid.

Conclusions

Inclusion of the first exon and intron from the CMV IE gene increases expression from the CMV IE promoter. This enhancement is seen with the heterologous RSV promoter and is associated with an increase in steady-state mRNA. Deletion analyses suggest that this enhancement is associated with inclusion of sequences within the 5′ portion of the first exon and inclusion of an intron.

Introduction

A goal of gene transfer is to modulate gene expression in host cells by the introduction of genes encoding native or foreign proteins. Although viral vectors have several actual and theoretic advantages over nonviral vectors, limitations related to their immunogenicity and toxicity remain. Nonviral gene transfer has several important features, including its overall safety and lack of toxicity, but has been limited by the duration and extent of recombinant gene expression in primary target cells (1,2). The use of plasmid DNA to express transgenes from skeletal muscle for either systemic expression or immunization in vivo has been an important demonstration of its potential (3). Strategies to improve the efficacy of nonviral vectors include the development of new cationic liposomes and the development of enhanced expression plasmids. Novel cationic liposomes, including GAP DLRIE/DOPE (4,5) have increased in vivo gene expression. Enhancement of gene expression from plasmids might be obtained by developing plasmids that are capable of episomal replication (6), by creating tissue specificity, or by altering the regulation of gene expression from the plasmid. The cytomegalovirus immediate early (CMV IE) promoter has been widely used as a potent constitutive viral promoter in expression plasmids for nonviral transfection (7,8). Addition of intronic sequences to expression plasmids has been shown to increase transgene expression in transient transfections in some transformed cell lines (9,10) and in the development of transgenic animals (11,12). It has been suggested that the 5′ untranslated portion (first exon) and first intron of the CMV IE gene may be involved in the regulation of gene expression (9,10) from the CMV IE promoter. However, the extent and mechanism of regulation may vary with target cell and the transgene to be expressed. To increase gene expression following nonviral delivery of DNA, we investigated whether addition of untranslated sequences from the CMV IE gene would increase transgene expression in vascular smooth muscle cells (VSMCs), a target for vascular gene transfer, and to determine the sequences required for this effect.

Materials and Methods

Plasmid Development

The eukaryotic expression plasmid pCMVintCAT was obtained from Vical Inc. (San Diego, CA); it expresses the chloramphenicol acetyl transferase gene under the control of the CMV IE enhancer/promoter (Fig. 1). This plasmid also contains the first exon (5′ untranslated) and first intron from the CMV IE gene and a bovine growth hormone polyadenylation sequence. The plasmid pCMVCAT contains the same backbone as pCMVintCAT with the entire 5′ untranslated and first intron sequences deleted. The plasmid pCMVint-(SacII)CAT contains 69 bp of the 5′ untranslated sequences with deletion of the intron. The plasmid pCMVint(S/N)CAT contains an internal intron deletion from the SphI restriction site to the NcoI restriction site and contains 72 bp of the intron. The plasmid pCMVint(X/N)CAT contains an internal intron deletion from the XcmI restriction site to the NcoI restriction site and contains 179 bp of the intron. The plasmid pCMVint(S/H)CAT contains an internal intron deletion from the SphI restriction site to the HpaI restriction site and contains 165 bp of the intron. The plasmid pCMVint(X/H)CAT contains an internal intron deletion from the XcmI restriction site to the HpaI restriction site and contains 273 bp of the intron.

Fig. 1
figure 1

A map of the plasmid pCMVintCAT including restriction sites used to develop deletional mutations.

The plasmid pRSVCAT expresses CAT under the control of the RSV promoter with the bovine growth hormone polyadenylation signal. The plasmid pRSVintCAT contains the 5′ untranslated and first intron from the CMV IE gene upstream of the CAT cassette. The plasmid pRSV-int(SacII)CAT contains 69 bp of the 5′ untranslated sequences with deletion of the intron. All plasmids were purified by double cesium chloride banding.

Transfection Protocol

Porcine aortic vascular smooth muscle cells were obtained by standard explantation methods and used for transfection studies within the first six passages (13). Cells were grown to 30–40% confluence in 6- or 24-well plates (for duration of expression studies) in Medium 199 (Gibco/BRL) containing 10% fetal bovine serum. Cells were washed twice with phosphate-buffered saline (PBS) prior to addition of DNA liposomes. DNA liposomes were prepared by adding 5 µg of plasmid DNA to 0.5 ml of Opti-MEM (Gibco/BRL). A cationic lipid, DMRIE/DOPE (Vical), was prepared by adding 10 µg of DMRIE/DOPE to 0.5 ml of Opti-MEM (Gibco/BRL). Prior to transfection, the DNA solution was added to the liposomes and gently mixed. The transfection solution was then added to each well and plates were kept at 37°C for 2 hr. Following transfection, the cells were washed twice with PBS, Medium 199 was added and the cells were kept at 37°C. The cells were harvested at 1, 5, 9, or 20 days following transfection. Transfections were performed in triplicate. Transfections were performed in an identical fashion for 293 cells (American Type Culture Collection, Rockville, MD).

CAT Assay

To determine the extent of CAT expression within each sample, protein was extracted by freezing and thawing three times. Protein was quantified by means of a calorimetric assay (Bio-Rad, Hercules, CA). The amount of protein used in each assay was the same among each group of comparisons and ranged from 0.2 µg to 20 µg. CAT activity was determined during a 20- to 30-min incubation as previously described (14) and expressed as % acetylation of [C14] chloramphenicol.

Northern Blot Analysis

293 cells were grown in 10-cm dishes and transfected with either pCMVCAT or pCMVintCAT as above. Nontransfected 293 cells were used as controls. Cells were harvested 24 hr after transfection. Total RNA was isolated using RNAZOL B (Tel-Test, Inc., Friendswood, TX). Northern blot analysis was performed using standard techniques (Northern Max, Ambion Inc, Austin, TX). Briefly, 20 µg of total RNA was electrophoresed on a 1 % denaturing formamide gel and transferred to a nitrocellulose membrane using the Turbo Blot (Schleicher & Schuell; Keene, NH) method of capillary transfer. Membranes were cross-linked, then prehybridized for 2 hr at 42°C, followed by hybridization overnight at 42°C with a random prime-labeled (α-32P-dCTP) cDNA probe (Prime It II Random Prime Labeling Kit, Stratagene, La Jolla, CA). CAT mRNA bands were subsequently visualized on X-ray film. To control for variations in RNA loading, membranes were stripped of previous labeled CAT probe by boiling in 1% SDS solution and rehybridized with a cDNA probe to human GAPDH (Ambion).

Statistics

Results are expressed as a mean and a standard error of the mean (S.E.M.). Each transfection was treated as an independent observation. Comparisons were made between samples when identical amounts of protein and incubation times were used and thin-layer chromatography was performed simultaneously. The means of groups were compared by an unpaired two-tailed Student’s t-est or by analysis of variance (ANOVA) with Dunnet t-test. Statistical significance was assumed if a null hypothesis could be rejected at the 0.05 level.

Results

To examine the effect of the entire CMV IE untranslated sequences on transgene expression in VSMCs, comparisons were made between pCMVintCAT and pCMVCAT. Addition of the complete untranslated sequence from the CMV IE gene downstream of the CMV enhancer/promoter resulted in a 5.7-fold increase in gene expression (p = 0.002) (Fig. 2). A similar enhancement was seen in other cell types, including peripheral blood lymphocytes and human embryonic kidney (293) cells (data not shown).

Fig. 2
figure 2

Enhanced gene expression using the untranslated sequences from the CMV IE gene. The eukaryotic expression plasmid pCMVintCAT was obtained from Vical Inc. (San Diego, CA) and expresses the chloramphenicol acetyl transferase gene under the control of the CMV IE enhancer/promoter. This plasmid also contains the 5′ untranslated and first intron from the CMV IE gene and a bovine growth hormone polyadenylation sequence. The plasmid pCMVCAT contains the same backbone as pCMVintCAT with the entire 5′ untranslated and first intron sequences deleted (BsmBI to EcoRV). Porcine aortic vascular smooth muscle cells were obtained by standard explantation methods and used for transfection studies within the first six passages. Cells were grown to 30–40% confluence in 6-well plates in Medium 199 (Gibco/BRL) containing 10% fetal bovine serum and transfected with 5 µg of plasmid DNA and 10 µg of a cationic liposome, DMRIE/DOPE (Vical) (23). Transfections were performed in triplicate. Detection of CAT activity was performed as previously described (14). *p = 0.002 using unpaired two-tailed Student’s t-est.

To determine the mechanism for this enhancement, Northern blot analyses were performed. Transfections were performed and RNA was isolated 24 hr following transfection. These studies demonstrate an increase in steady-state RNA associated with the inclusion of the 5′ untranslated sequences. However, this increase is primarily due to the presence of a higher-molecular-weight (MW) band from the cells transfected with pCMVintCAT (Fig. 3). The higher-MW (1.6 kb) form from the pCMVintCAT transfected cells was the dominant band compared to the 0.7 kb band expected for CAT seen with both transfections. Thus, the increase in transgene expression with inclusion of the 5′ untranslated sequences was associated with a dominant higher-MW form of RNA than that expected for CAT mRNA.

Fig. 3
figure 3

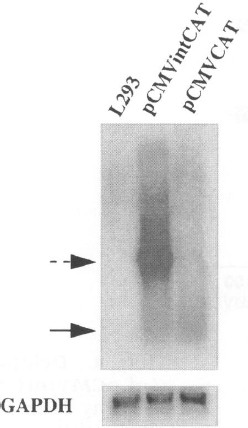

Addition of 5′ sequences from CMV IE gene is associated with an increase in steady-state mRNA. Northern analysis of RNA from 293 cells transfected with pCMVintCAT (lane 2) or pCMVCAT (lane 3) with nontranfected 293 cells (lane 1). The upper band (1.6 kb) (dotted arrow) is the predominant band from pCMVintCAT transfections compared with the expected 0.7 kb band (solid arrow) also seen in the pCMVCAT transfections consistent with CAT mRNA.

To determine the requirements for the 5′ untranslated exon and the first intron, a series of deletional mutations was created using inherent restriction sites (Fig. 4A). Large internal deletions from within the intron failed to significantly decrease gene expression (65–101%), although the larger deletions were associated with a trend toward lower gene expression. Deletion of the entire intron and the 3′ portion of the first exon [pCMVint(Sac II)CAT] decreased gene expression by 56% (p = 0.01). This deletion spares the sequences from the 5′ untranslated sequences previously identified as a positive regulatory domain (15).

Fig. 4
figure 4

Deletion analysis of pCMVintCAT. (A) CAT activity 24 hr after transfection relative to pCMVintCAT. *p = 0.01 compared to pCMVintCAT by analysis of variance (ANOVA) with Scheffe’s F-test. (B) Time course of transgene expression from plasmids containing untranslated sequences from the CMV IE gene. See text for description of plasmids.

To determine the effects of these sequences on the duration of gene expression following transfection, transfected VSMCs were maintained without splitting for up to 20 days. The pattern of decline in gene expression over time was similar to the comparison at 1 day; internal intron deletions did not affect the extent of gene expression, while deletion of the entire intron decreased gene expression (Fig. 4B). The degree of expression at any point appeared to be more dependent on the overall initial degree of expression rather than the rate of the decline in expression over time.

To determine the effects of adding the 5′ untranslated sequences downstream of a promoter with lower basal activity, a series of similar constructs were made with the RSV promoter. Addition of the entire untranslated sequences resulted in increased expression in VSMCs by 10.3-fold (Fig. 5) (p = 0.02). The addition of the first 69 bp of the 5′ untranslated sequence from the CMV IE gene increased gene expression to a nonsignificant degree in VSMCs by 1.83-fold (p = NS). Therefore, the enhanced expression with addition of untranslated sequences from the CMV IE gene is not specific for expression from the CMV IE promoter but is present with a heterologous viral promoter. The degree of increase with these sequences is greater than with the homologous promoter perhaps because the CMV promoter/enhancer is 100-fold more active than the RSV promoter in this system (data not shown).

Fig. 5
figure 5

Comparison of transgene expression from plasmids containing RSV promoter and untranslated sequences from CMV IE gene. See above for description of plasmids. *p < 0.05 compared to pRSVCAT by analysis of variance (ANOVA) with Scheffe’s F-test.

Discussion

Gene transfer studies may provide important insights into the pathophysiology and potential treatments of human disease. A limitation of gene transfer has been the difficulty in obtaining high levels of gene expression using nonviral methods of transfer. Vascular smooth muscle cells are potential targets for the treatment of vasculoproliferative diseases, such as restenosis and atherosclerosis. Although virally mediated gene transfer has proven effective in VSMCs, there are several advantages to nonviral approaches, including the lack of toxicity and simplicity. The safety of DNA liposomes and DNA alone have now been documented in several animal toxicity and human trials (1,1520).

In this report, gene expression using nonviral methods was enhanced by the addition of untranslated sequences from the CMV IE gene. Gene expression from the CMV IE promoter was increased 6-fold in target cells. This enhancement with these untranslated sequences is associated with a dominant higher-MW form of RNA than that expected for CAT. A previous study by Chapman et al. also noted this higher-molecular-weight form of RNA associated with this intron, but they attributed this form to read-through of the weak SV40 polyadenylation sequence that was used in their study (9). Our study differs from this study in that our plasmids used the bovine growth hormone polyadenylation sequence and comparisons to intronless plasmids were performed. It is the presence of this higher-MW form that differentiates between the results from the two constructs. A possible explanation for this higher-MW form of RNA might be that it is unspliced and that its presence is associated with increased protein expression in these steady-state studies.

Deletion analyses demonstrated that the enhancement was dependent upon the presence of the 5′ untranslated exon and the presence of an intron. Deletion of large segments within the intron was associated with similar levels of expression compared with the parental plasmid. The greater degree of expression was seen throughout the time course of in vitro expression, but was not associated with a different time course of extinction. Expression from the weaker heterologous RSV promoter was increased 10-fold with inclusion of these nontranslated sequences. Thus, the enhancement observed with inclusion of the sequences is not limited to the homologous promoter and is dependent on inclusion of sequences within the first exon and at least a minimal intron.

Intronic sequences may increase gene expression from plasmids by either stabilizing mRNA by splicing or polyadenylation (21) or by acting as an enhancer (22), and they have been used to enhance transgene expression in transgenic animals (11,12). Some functional analyses of the 5′ untranslated and intron from CMV IE gene have been reported previously. A regulatory domain within the first exon was identified by Ghazal and Nelson and was shown to enhance the number of functional initiation complexes by binding two discrete cellular proteins, named leader transcription factors A and B (LTFA and LTFB) (10). A separate analysis of the entire untranslated sequence demonstrated a variable effect on expression associated with an NF1 site within the first intron (9). This variability appeared to be due to the specific transgene expressed.

The current studies were designed to determine whether inclusion of these untranslated sequences would enhance expression in target cells for gene transfer. In these studies, the significance of the initial portion of first exon is demonstrated by a 3-fold increase in gene expression. This increase may be due to the presence of the sequence previously shown to bind LTFA and LTFB. The additional increase in expression seen with the intron does not appear to be related to the NF1 site as previously described. This site was deleted from all of the internal intron deletions without a significant decrease in gene expression. However, the presence of a minimal intron is associated with increased gene expression, suggesting either a transcriptional or post-transcriptional mechanism, such as mRNA stability as shown in previous studies. Taken together, these findings suggest that the inclusion of the first exon and intron from the CMV IE gene increases gene expression in transient transfections in VSMCs. This increase is seen in the presence of heterologous promoters and is dependent on the presence of the untranslated exon and a minimal intron. These findings might be used to develop potent gene delivery strategies that could achieve biological effects and avoid the potential toxicity of viral strategies.
