Characterization of a Novel Hemoglobin-Glutathione Adduct That Is Elevated in Diabetic Patients



Typically, a diagnosis of diabetes mellitus is based on elevated circulating blood glucose levels. In an attempt to discover additional markers for the disease and predictors of prognosis, we undertook the characterization of HbA1d3 in diabetic and normal patients.

Material and Methods

PolyCAT A cation exchange chromatography and liquid chromatography-mass spectroscopy was utilized to separate the α- and β-globin chains of HbA1d3 and characterize their presence in normal and diabetic patients.


We report the characterization of HbA1d3 as a glutathionylated, minor hemoglobin subfraction that occurs in higher levels in diabetic patients (2.26 ± 0.29 %) than in normal individuals (1.21 ± 0.14%, p < 0.001). The α-chain spectrum displayed a molecular ion of m/z 15126 Da, which is consistent with the predicted native mass of the HbA0 α-globin chain. By contrast, the mass spectrum of the β-chain showed a mass excess of 307 Da (m/z = 16173 Da) versus that of the native HbA0 β-globin chain (m/z = 15866 Da). The native molecular weight of the modified β-globin chain HbA0 was regenerated by treatment of HbA1d3 with dithiothreitol, consistent with a glutathionylated adduct.


We propose that HbA1d3 (HbSSG) forms normally in vivo, and may provide a useful marker of oxidative stress in diabetes mellitus and potentially other pathologic situations.


Once a mammalian red cell is released into the blood stream, it loses its capacity to synthesize protein. During a red cell’s 120-day life span, its proteins are susceptible to several posttranslational modifications, including nonenzymatic glycation and oxidation. The accumulation of such protein modifications is considered to be typical of the cellular and molecular changes associated with the aging process (14). Accordingly, an important clinical marker of diabetes mellitus is the hemoglobin species known as HbA1c. HbA1c occurs when the amino terminal valine residue of the β-chain of globin becomes covalently derivatized with an Amadori product via the Maillard reaction (5,6). Because the formation of the slowly reversible Amadori product depends on circulating glucose levels, this marker accumulates to a higher degree in the red cells of those diabetics with higher hyperglycemia. Similarly, the accumulation of advanced glycation endproducts (AGEs) on hemoglobin and other proteins has been used as a long-term marker of glucose control in diabetes. Using AGEs as a marker, rather than HbA1c, has the advantage of presenting an indication of circulating glucose levels over an extended period of time (14,710).

Although no de novo protein synthesis takes place in erythrocytes, the cells exhibit very active enzymatic synthesis of reduced glutathione (GSH), which is present at an intracellular concentration of 2.3 mM. In the red cell, GSH is an essential component for the maintenance of HbA0 in a physiologically active form. Glutathione disulfide (GSSG), the oxidized form of GSH (present at a concentration of 4.0 µM) is either continuously reduced by the glutathione reductase system or actively transported out of the erythrocyte so as to maintain a high intracellular GSH/GSSG ratio. It has been widely reported that diabetics have lower intracellular levels of GSH, and this is considered to be indicative of increased oxidative stress in these patients (1114). Reduced GSH levels are believed to be a result of at least three circumstances within the cell: (1) a decrease in the activity of γ-glutamyl-cysteine synthetase (the enzyme that is responsible for the first step in glutathione synthesis), possibly due to nonenzymatic glycation of the enzyme (15); (2) a decrease in the activity of glutathione reductase, the enzyme that catalyzes the reduction of GSSG to GSH (also a result of enzyme glycation) (16); and (3) a decrease in the activity of the Mg+2 ATPase transporter responsible for GSSG export resulting in an increase of the intraerythrocytic level of GSSG (13). These factors result in decreased synthesis of new glutathione, as well as decreased regeneration of GSH from GSSG, and decreased transport of GSSG to the outside of the red cell. This creates an ideal environment for the formation of hemoglobin (and other protein)-glutathione adducts (HbSSG).

HbSSG can be synthetically prepared by reacting GSSG (1719) with human hemoglobin in vitro. Successful experimental formation of HbSSG in vitro led to the suggestion that HbSSG might also form under in vivo conditions, but this has been shown only to occur under extraordinary circumstances of long-term therapy with red-ox active drugs. In a population of patients treated with the anti-epileptic agents phenobarbital and caramazepin, Niketic et al. (20) detected by isoelectric focusing a minor hemoglobin, designated HbA1x, which they propose to be a glutathione-modified form.

Although a simple diagnosis of “diabetes mellitus” can be made on the basis of abnormally elevated blood sugar levels, additional markers may be valuable in the diagnosis and management of the disease and in the formation of a prognosis of the development of multi-organ complications (3). Herein, we report the isolation and molecular characterization of a variant of hemoglobin, termed HbSSG (HbA1d3), which occurs at higher levels in Type I diabetics than in normal subjects. Its formation from GSSG suggests that this novel hemoglobin species may represent a specific marker of oxidative stress.

Materials and Methods

Hemolysate Preparation

Human diabetic whole blood, preserved in EDTA, was generously provided by Dr. Helen Vlassara (Mount Sinai School of Medicine, NY, NY, USA). Control blood was obtained from age-matched, nondiabetic volunteers. Blood samples were centrifuged at 1800 ×g for 10 min at 4°C to obtain packed red blood cells (RBCs). To 1 ml of packed RBCs, 3 ml dH2O was added to lyse cells and 2 ml of toulene was added for delipidation. Vigorous vortexing for 3 min ensured complete extraction of lipids. Hemolysates then were centrifuged at 1800 ×g for 10 min at 4°C to separate the aqueous from the nonaqueous phases. The nonaqueous phase was removed by aspiration and a glass pipette was used to remove the hemolysate. Hemolysates were stored at −70°C until use.

Fractionation of Hemoglobin Species

To achieve separation of the various glycated hemoglobin species, PolyCAT A (PolyLC, Columbia, MD, USA) cation exchange chromatography (200 × 4.6 mm) was employed. The chromatographic system consisted of a Waters 600E controller, a 60F pump, a 996 photodiode array detector, and a 717 plus auto sampler. Buffer A was 35 mM Bis-Tris (all chemicals in buffers purchased from Sigma, St. Louis, MO, USA), 16.85 mM ammonium acetate, 90 mM sodium acetate, and 1.5 mM potassium cyanide, and was buffered to a pH of 6.8 with acetic acid. Buffer B was 35 mM Bis-Tris, 3 mM ammonium acetate, and 1.5 mM potassium cyanide, and was buffered to pH 6.5 with acetic acid. The gradient started isocratically at 22% A, 78% B for the first 3 min and was maintained at a flow rate of 3.0 ml/min throughout the run. From 3–30 min, buffer A increased linearly to 50%, and then linearly to 100% from 3040 min. Buffer A was maintained at 100% until 40.5 min and then decreased to 22% over the next 5 min. The column then was equilibrated over the next 20 min with the initial solvent ratio. Fractions were collected upon monitoring absorbance at 415 nm.

LC-MS Methods

A C4-reversed phase column (1 × 50 mm) (Vyadec, 5 µM) at a flow rate of 50 µλ/min was used for α- and β-chain separation. Solvent C contained 0.05% triflouroacetic acid (TFA) in ddH2O, and solvent D contained 0.05% TFA in acetonitrile. The column was eluted with a binary C:D solvent gradient beginning at 40% D and linearly increasing to 60% D in 20 min. Column eluate was monitored at 214 nm, and peaks were analyzed by electrospray ionization mass spectrometry (combined LC-ESI) wherein ESI spectra were scanned from 10,00–35,000 mass units at a scan cycle of 5 sec/scan.


Isolation of Human Hemoglobin

Figure 1 illustrates the fractionation scheme we used to isolate the various human hemoglobin species in this study. Whole blood hemolysates were obtained from 20 patients with a wide spectrum of severity and duration of diabetes. Results of PolyCAT cation exchange chromatographic fractionation of the hemolysate of one representative patient is illustrated in Figure 2. The HbA1c peak was found to represent 14.0% of total hemoglobin and was confirmed by LC-MS (21). As indicated in Figure 2A, the minor hemoglobin species conventionally have been designated according to their elution order. The HbA1d3 subfraction contained 2.26 ± 0.29% of total hemoglobin in the samples. By comparison with previously published chromatograms (21), the identity of this subfraction was expected to represent HbA0 in which globin had become modified either by glutathione or a glycation product.

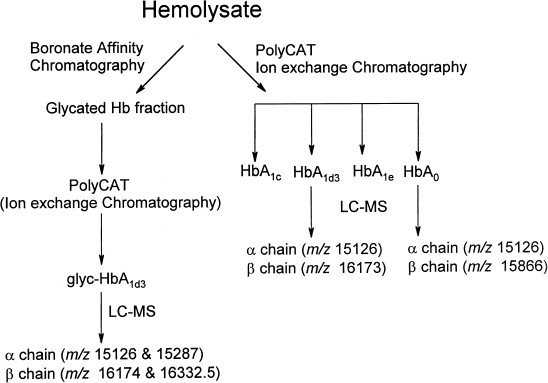

Fig. 1

Schematic diagram for the isolation of different hemoglobin extracts separated by PolyCAT and LC-MS.

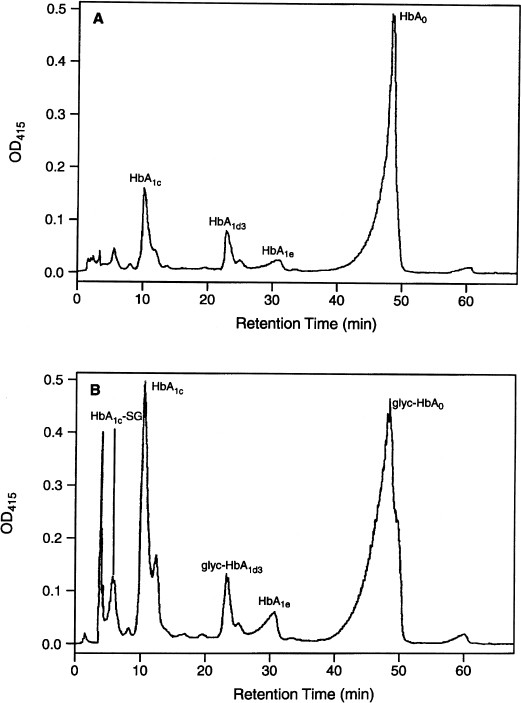

Fig. 2

Cation exchange and boronate affinity chromatography analyses of human diabetic hemoglobin. (A) Elution of hemoglobin peaks from a delipidated whole blood hemolysate obtained from a human diabetic patient and fractionated by cation exchange chromatography. Hemoglobin subfractions were assigned by identification of constituent globin chains as determined by subsequent HPLC and LCMS analyses. HbA0, hemoglobin with no modification to either the α- or β-chains; HbA1c, hemoglobin with an Amadori glycation product attached to the amino terminal valine of the globin β-chain; HbA1d3, hemoglobin modified by attachment of oxidized glutathione (HbASSG) as a mixed disulfide with the cysteine side chain at position 93 of the globin β-chain; Hb1e, hemoglobin with an Amadori glycation product attached to the amino terminal valine of the globin α-chain. (B) Fractionation of glycated hemoglobin fraction obtained by boronate affinity chromatography by ion exchange chromatography. glyc-HbA0, hemoglobin that is glycated at the lysine side chain of either the α- or β-chains (Al-Abed et al. unpublished data); HbA1c-SG, hemoglobin with a simultaneous Amadori glycation product and glutathionylation at cysteine side chain at position 93; glyc-HbA1d3, glycated hemoglobin that is also modified by attachment of glutathione (HbASSG) to the cysteine side chain at position 93 of the globin β-chain; HbA1e, hemoglobin with an Amadori glycation product attached to the amino terminal valine of the globin α-chain.

Separation and Characterization of the α- and β-Globin Chains of HbA1d3

Liquid chromatography-mass spectrometry (LC-MS) was applied to separate the α- and β-globin chains of HbA1d3 (Fig. 3A). The α-chain spectrum displayed a molecular ion of m/z 15126 Da, which is consistent with the predicted mass of native HbA0 α− globin chain (Fig. 3B). By contrast, the mass spectrum of the β-chain showed a mass excess of 307 Da versus that of the native HbA HbA0 β-globin chain (Fig. 3C). To establish that this modification was due to glutathione (m/z 307 Da), the HbA1d3 was incubated with DTT in phosphate-buffered saline (PBS) under N2 for 24 hr and then analyzed by ion exchange chromatography and LC-MS. The ion exchange elution profile indicated that the reduced HbA1d3 was eluted in a similarly to native HbA0. Moreover, the mass spectrum of the β-chain from DTT-reduced HbA1d3 was identical to that of HbA0. The β-chain of hemoglobin contains two cysteinyl residues at position β-93 and β-112, and the α-subunit has one cysteinyl residue at position α-104. The β-112 and α-104 residues are internally oriented and are involved in subunit contact, but do not form a disulfide bridge, making them generally unavailable for modification. Taken together, these data are consistent with the modification of the β-globin Cys93 by oxidized gluthatione. (The expected mass for the β-chain of HbA0 is 15,866 plus 307 for covalent glutathione adduct = 16,172, versus the measured HbA1d3 m/z = 16,173 [M + H]+.)

Fig. 3

LC-MS analyses of HbA1d3 (HbSSG). (A) Fractionation of hemoglobin subfraction HbA1d3 into component globin chains by C4-reversed phase HPLC. (B) Mass spectrum of globin α-chain. (C) Mass spectrum of globin β-chain.

Susceptibility of Glycated Hb to Glutathione Modification

To determine whether glycated fractions of the same diabetic hemolysates are susceptible to glutathione modification, hemolysates were subjected to boronate affinity chromatography, which selectively retains glycated Hb species. Then, the bound fractions then were eluted and further fractionated using ion exchange chromatography (Fig. 1B). The fraction corresponding to glycated HbA1d3 (glyc-HbA1d3) was isolated and subjected to LC-MS. Data presented in Figure 4 indicate the molecular weight of each chain in this glyc-HbA1d3 subfraction. As expected, the mass of the β-chain was consistent with simultaneous covalent glutathionylation and glycation. Mass spectrometry analysis of this fraction after DTT treatment revealed a mass ion consistent only with glycation modification (mass excess = 162), the glutathione adduct having been removed by reduction (data not shown). We also detected glycated species that are glutathionylated, such as the glutathionylated HbA1c (HbA1c-SG) shown in Figure 2B. On the basis of LC-MS and analysis, it is apparent that multiple hemoglobin variants such as HbA0, HbA1c, and HbA1d3, are susceptible to glutathionylation, indicating that there is an underestimation of the total glutathionylated hemoglobin content by simple ion exchange chromatography.

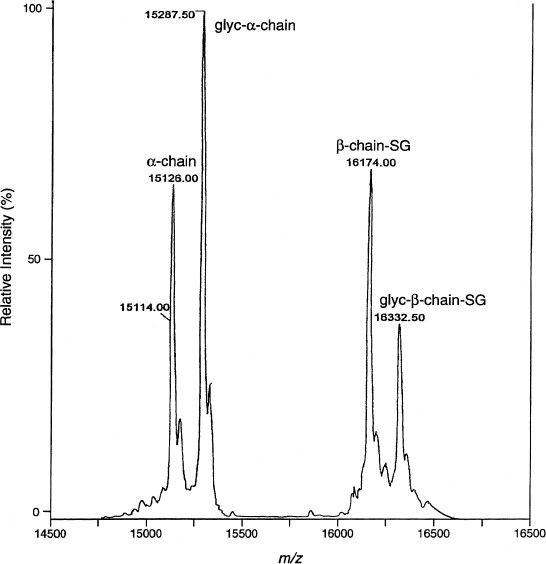

Fig. 4

Mass spectrum of glyc-HbA 1d3 subfraction obtained by ion exchange chromatography of the glycated hemoglobin as shown in Figure 1B .

HbA1d3 and HbA1d3 Levels in Non-diabetic and Diabetic Individuals

We next measured the level of HbA1d3 in nine healthy volunteers and compared the values with those from diabetic subjects. Hemolysates were prepared and fractionated by ion chromatography as above. HbA1c was found to be 2.2 ± 0.77% of total hemoglobin, and its identity (glycated at NH2-terminal valine of β-globin chain) was confirmed by LC-MS (data not shown). The HbA1d3 peak was quantified and found to represent 1.21 ± 0.14% of total Hb. These values were significantly different from those of diabetic patients, whose HbA1c levels were 9.30 ± 2.49% of total hemoglobin, and whose HbA1d3 levels were 2.26 ± 0.29% of total hemoglobin (Fig. 5A).The levels of gluthionylated Hb adducts in diabetic patients correlated wit the level of HbA1c, as shown in Figure 5B. Moreover, the level of HbA1d3 in diabetic and normal individuals was comparable to the levels of the newly characterized glycated hemoglobin HbA1e, (Figs. 2AB) in which an Amadori glycation product is attached to the amino terminal valine of the globin α-chain (Al-Abed et al., in preparation).

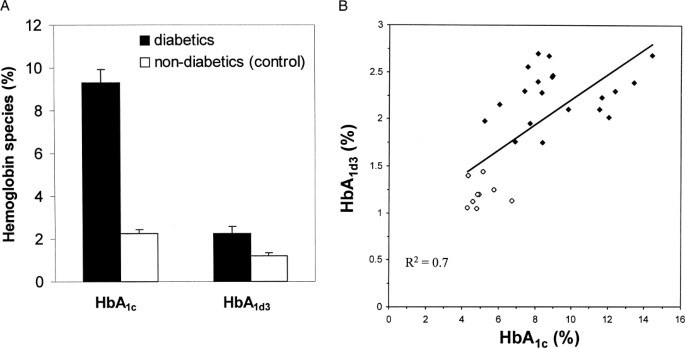

Fig. 5

HbA1d3 and HbA1c levels. (A) Comparison of concentrations of HbA1d3 and HbA1c in diabetic (n = 20) and non-diabetic individuals (n = 9), p < 0.001 for diabetic versus nondiabetic HbA1c and p < 0.001 for diabetic versus nondiabetic HbA1d3. (B) Correlation plot between HbA1d3 and HbA1c in diabetic (♦) and nondiabetic () individuals, y = 0.1341x + 0.8634.


We previously identified a glutathionylated hemoglobin in diabetic rats using ion exchange chromatography and LC-MS (21). Niwa et al. (22,23) recently reported the identification of a glutathionylated HbA0 that is present at higher levels in diabetic (Type I) and hyperlipidemic patients. It was concluded in that study that there is no correlation between the formation of HbA1c and HbA1d3 in diabetic and hyperlipidemic patients. Their finding was based however on detecting a mass unit of 16,173 Da for a modified β-globin subfraction that corresponds to glutathionylated β-globin and runs parallel with the native β-globin chain in reverse phase HPLC. The elevated level of this glutathionylated Hb in diabetic (Type I) and hyperlipidemic patients was based on a nonquantitative mass spectra analysis.

In summary, we have isolated and characterized HbA1d3, a normally occurring minor hemoglobin subfraction that results from a glutathione adduct at the β-93 cysteine residue (HbSSG). This adduct accounts for 1.21 ± 0.14% versus 2.26 ± 0.29% of the total hemoglobin in normal individuals and diabetic patients, respectively. We propose that the minor hemoglobin species HbA1d3, or HbSSG, forms normally in vivo, and may provide a useful marker of oxidative stress in a variety of pathologic situations.


  1. 1.

    Dryer DG, Dunn JA, Thorpe SR, et al. (1993). Accumulation of Maillard reaction products in skin collagen in diabetes and aging. J. Clin. Invest. 91: 2463–2469.

  2. 2.

    Ledl F, Schleicher E. (1990). The Maillard reaction in food and in human body-New results in chemistry, biochemistry and medicine. Angew. Chem. Int. Ed. Engl. 6: 565–594.

  3. 3.

    Brownlee M, Cerami A, Vlassara H. (1998). Advanced glycosylation end products in tissue and the biochemical basis of diabetic complications. N. Engl. J. Med. 318: 1315–1321.

  4. 4.

    Bucala R, Cerami A. (1992). Advanced glycosylation: chemistry, biology, and implications for diabetes and aging. Adv. Pharmacol. 23: 1–34.

  5. 5.

    Rahbar S. (1968). Hemoglobin H disease in two Iranian families: Clin. Chim. Acta. 22: 296–299.

  6. 6.

    Koenig RJ, Blobstein SH, Cerami A. (1977). Structure of carbohydrate of hemoglobin AIc. J. Biol. Chem. 252: 2992–2997.

  7. 7.

    Makita Z, Vlassara H, Cerami A, Bucala R. (1992). Immunochemical detection of advanced glycosylation end products in vivo. J. Biol. Chem. 267: 5133–5138.

  8. 8.

    Schleicher E, Wagner E, Nerlich AG. (1997). Increased accumulation of the glycoxidation product N(epsilon)-(carboxymethyl)lysine in human tissues in diabetes and aging. J. Clin. Invest. 99: 457–468.

  9. 9.

    Makita Z, Vlassara H, Rayfield E, et al. (1992). Hemoglobin-AGE: a circulating marker of advanced glycosylation. Science 258: 651–653.

  10. 10.

    Wolffenbuttel BH, Giordano D, Founds HW, Bucala R: (1996). Long-term assessment of glucose control by hemoglobin-AGE measurement. Lancet 347: 513–515.

  11. 11.

    Gandhi CR, Roy Chowdhury RD. (1979). Effect of diabetes mellitus on sialic acid & glutathione content of human erythrocytes of different ages. Indian J. Exp. Biol. 17: 585–587.

  12. 12.

    Jain SK, McVie R. (1994). Effect of glycemic control, race (white versus black), and duration of diabetes on reduced glutathione content in erythrocytes of diabetic patients. Metabolism 43: 306–309.

  13. 13.

    Ciuchi E, Odetti P, Prando R. (1996). Relationship between glutathione and sorbitol concentrations in erythrocytes from diabetic patients: Metabolism 45: 611–613.

  14. 14.

    Murakami K, Kondo T, Ohtsuka Y, Fujiwara Y, Shimada M, Kawakami Y. (1989). Impairment of glutathione metabolism in erythrocytes from patients with diabetes mellitus. Metabolism 38: 753–758.

  15. 15.

    Murakami K. (1991). Glutathione metabolism in erythrocytes from patients with diabetes mellitus. Hokkaido Igaku Zasshi 66: 29–40.

  16. 16.

    Blakytny R, Harding JJ. (1992). Glycation (non-enzymic glycosylation) inactivates glutathione reductase. Biochem J 288: 303–307.

  17. 17.

    Birchmeier W, Tuchschmid PE, Winterhalter KH. (1973). Comparison of human hemoglobin A carrying glutathione as a mixed disulfide with the naturally occurring human hemoglobin A. Biochemistry 12: 3667–3672.

  18. 18.

    Wodak SJ, De Coen JL, Edelstein SJ, Demarne H, Beuzard Y. (1986). Modification of human hemoglobin by glutathione. III. Perturbations of hemoglobin conformation analyzed by computer modeling. J. Biol. Chem. 261: 14717–14724.

  19. 19.

    Garel MC, Domenget C, Caburi-Martin J, Prehu C, Galacteros F, Beuzard Y. (1986). Covalent binding of glutathione to hemoglobin. I. Inhibition of hemoglobin S polymerization. J. Biol. Chem. 261: 14707–14724.

  20. 20.

    Niketic V, Beslo D, Raicevic S, Sredic S, Stojkovic M. (1992). Glutathione adduct of hemoglobin (Hb ASSG) in hemolysates of patients on long-term antiepileptic therapy. Int. J. Biochem. 24: 503–507.

  21. 21.

    Al-Abed Y, Mitsuhashi T, Li H, et al. (1999). Inhibition of advanced glycation endproduct formation by acetaldehyde: role in the cardioprotective effect of ethanol. Proc. Natl. Acad. Sci. U.S.A. 96: 2385–2390.

  22. 22.

    Niwa T, Naito C, Mawjood AHM, Imai K. (2000). Increased glutathionyl hemoglobin in diabetes mellitus and hyperlipidemia demonstrated by liquid chromatography/electrospray ionization-mass spectrometry. Clin. Chem. 46: 82–88.

  23. 23.

    Naito C, Kajita M, Niwa TJ. (1999). Determination of glutathionyl hemoglobin in hemodialysis patients using electrospray ionization liquid chromatography-mass spectrometry. Chromatogr. B 731: 121–124.
