Transmission of Scrapie by Steel-surface-bound Prions

Abstract

Background

Prions are unusually resistant to conventional disinfection procedures. An electrode used intracerebrally on a Creutzfeldt-Jakob disease (CJD) patient transmitted the disease to two patients in succession and finally to a chimpanzee, despite attempted disinfection. Concerns that surgical instruments may transmit variant CJD have been raised by the finding of PrPSc, a surrogate marker for infectivity, in various tissues other than brain.

Materials and Methods

Stainless steel wire was exposed to scrapie-infected brain or brain homogenate, washed exhaustively and inserted into the brain of indicator mice to measure infectivity.

Results

A contact time of 5 min with scrapie-infected mouse brain suffices to render steel wire highly infectious and insertion of infectious wire into the brain of an indicator mouse for 30 min suffices to cause disease. Infectivity bound to wires persists far longer in the brain than when injected as homogenate, which can explain the extraordinary efficiency of wire-mediated infection. No detectable amounts of PrP could be eluted with NaOH, however the presence of PrP on infectious wires was demonstrated by chemiluminescence. Several recommended sterilisation procedures inactivated wire-bound mouse prions, but exposure to 10% formaldehyde was insufficient.

Conclusions

Prions are readily and tightly bound to stainless steel surfaces and can transmit scrapie to recipient mice after short exposure times. This system mimics contaminated surgical instruments and will allow an assessment of sterilisation procedures.

Introduction

Prions are more resistant to inactivation than most conventional pathogens (14). An electrode used intracerebrally on a patient suffering from sporadic CJD (sCJD) transmitted the disease to two patients in succession and finally to a chimpanzee, despite exposure to benzene, 70% ethanol and formaldehyde vapour after each use (5,6). Concerns that surgical instruments may transmit variant CreutzfeldtJakob disease (vCJD) have been raised by the finding of PrPSc not only in nervous, but also in lymphatic tissue (710). We examined the ability of steel surfaces to bind scrapie prions by incubating steel wires overnight with scrapie-infected brain homogenates and inserting them permanently into the brain of indicator mice. This procedure resulted in efficient transmission of disease (11).

However, long-time exposure of steel wires to brain homogenate does not reflect conditions obtaining during surgical interventions. We now show that wires inserted into intact brain for as little as 5 min suffices to render the wires far more infectious than overnight exposure to brain homogenate and as infectious as 0.03 ml of 1% scrapie-infected brain homogenate injected directly into the brain. Furthermore, a contact time of 30 min was sufficient to elicit infection. Our experiments provide a model to assess the effectiveness of sterilisation procedures for steel bound prions and suggest a minimally invasive approach to assess infectivity in organs such as brain and tonsils.

Materials and Methods

Preparation of Infectious Wire

Stainless steel wire segments (diameter 0.15 mm; 5 mm length) were cut from “Stainless steel suture monofilament wire”, Art.Nr. 01614037, USP 4/0, B.Braun Melsungen AG, D-34209 Melsungen, Germany; batch 1/7502 or 1/8452). Gold wire segments (5 × 0.13 mm, Alfa Aesar Johnson Matthey GmbH Germany) were washed ultrasonically for 15 min in 2% Triton X-100, thoroughly rinsed in distilled water, dried at 37°C for 1 h as described (12). Brains were homogenized in 1 × Dulbecco’s phosphate-buffer saline (D-PBS; Gibco BRL, Glasgow, UK) by passing through 21G and 25G needles 8 times each, to give 10% (w/v) homogenates. These were centrifuged at 1,000 rpm (Eppendorf centrifuge 5415c, Hamburg, Germany) for 5 min at room temperature and the supernatants were recovered. We have recently determined that the centrifugation step result in the precipitation of about 80–90% of the PrPSc present in the sample (P. Klöhn, unpublished results) so that this step is better avoided. Wires were incubated with centrifuged 10% brain homogenate in PBS for 16 h and washed 5 times 10 min in 50 ml PBS, all at room temperature. The wires were air-dried, stored at room temperature for 1 day and inserted into brain of deeply anaesthetized indicator mice, using a 25-gauge injection needle as a trocar.

Chemiluminescence of Surface-bound PrP

Twenty stainless wire segments (0.15 × 5 mm) were inserted into one brain hemisphere for 5 minutes. The other hemisphere was homogenized and centrifuged as described above. Twenty stainless wire segments were incubated with 0.5 ml 10% centrifuged homogenate for 5 min at room temperature, washed five times for 10 min with 50 ml D-PBS, dried for 24 h and immediately assayed for PrP. Wires were incubated with 0.2 ml of D-PBS containing 5% non-fat dry milk (w/v; Marvel, Premier Brands UK Ltd., Wirral, Merseyside, U.K.) for 1 h with agitation. After removal of the blocking reagent, they were incubated for 1 h with 200 ng/ml of anti-PrP antibody (6H4; Prionics AG, Zürich, Switzerland) in D-PBS containing 1% non-fat dry milk and washed 3 times for 5 min with 0.2 ml of D-PBS, followed by incubation for 1 h with horseradish peroxidase-conjugated rabbit antimouse IgG1 (1: 5000 dilution; Zymed, South San Francisco, California, USA). After washing 5 times for 5 min with D-PBS, the wires were exposed to 0.2 ml of SuperSignal ELISA Femto Maximum Sensitivity Substrate (Pierce, Rockford, ILL, USA) according to the manufacturer’s instructions. Chemiluminescence was determined by luminometer (AutoLumat LB953; EG&G Berthold GmbH, Bad Wildbad, Germany).

Results

The ability of stainless steel surfaces to bind scrapie infectivity has been previously demonstrated by incubating steel wires (5 × 0.15 mm) for 16 h with 10% w/v brain homogenate of terminally scrapie-sick mice, referred to below as “standard conditions” (11). To model the exposure of surgical instruments to infected tissue more realistically, we inserted wire segments for 5, 30 or 120 min into brains of scrapieinoculated wild-type mice culled two months before the expected appearance of scrapie symptoms. These “transiently inserted” wires were washed, dried and assayed by permanent implantation into the brain of Tga20 indicator mice (13). Incubation times of the three groups lay between 65 ± 4 and 69 ± 5 days (Table 1, experiment 1), showing that even the shortest exposure to scrapie-infected brain rendered wires as infectious as intracerebral inoculation with 0.03 ml of 1% homogenate of the same brain homogenate (incubation time of 68 ± 8 days). Gold wires exposed to brain homogenate into brain also acquired infectivity (Table 1, experiment 2).

Table 1 Infectivity of steel or gold wires after exposure to intact brain or to brain homogenate of scrapie-infected mice

A second important question regards the length of time an infectious wire must contact brain tissue in order to initiate disease. Infectious wires were prepared by insertion for 5 min into the brain of an infected wild-type mouse culled one month before the expected onset of scrapie symptoms. After washing, the wires were inserted transiently into the brains of anaesthetised indicator mice. As shown in Table 2, all mice exposed to a wire for 30 min or 2 h developed symptoms after 94 ± 10 and 100 ± 18 days, respectively. The infectious wires, with or without subsequent exposure to brain tissue, were ultimately assayed in indicator mice and in all cases caused scrapie disease after about 70 days, showing that no detectable amounts of infectivity were lost by exposure to brain.

Table 2 Transient insertion of infectious wires into brains of indicator mice

Earlier experiments had shown that no detectable protein could be eluted with 2 M NaOH (<50 ng protein per wire) from wires exposed to 10% brain homogenate (11). To determine whether wires exposed to brain homogenate or to intact brain had surface-bound PrP, they were incubated with monoclonal PrP antibody 6H4 (14), followed by horseradish peroxidase-conjugated rabbit anti mouse IgG1 and chemiluminescence was measured in the presence of substrate. Fig. 1 shows that chemiluminescence of wires transiently inserted into infected brain of terminally sick indicator mice was about 5.5 times above reagent background. After background subtraction, the values were about 4 times higher than for wires exposed to infected brain homogenate and about 1.8 times higher than for those transiently inserted into uninfected brain. This experiment shows that PrP was bound to the wire surface; the higher chemiluminescence of the sample from infected brain is in keeping with the finding that total PrP content in terminally infected mouse brain is around 5 times higher than in uninfected controls (13,15), due to accumulation of PrPSc. We were not able to differentiate between PrPC and PrPSc on wires because proteinase K treatment abolished immunofluorescence in all cases (data not shown). In an attempt to desorb PrP, we extracted 40 wire segments that had been transiently inserted into scrapie-infected brain with 0.05 ml 2 M NaOH for 1 h, neutralised the eluate with HCl and analysed half the sample by Western blot analysis. No PrP-specific immunoreactivity was detected under conditions where 0.3 ng purified glycosylated murine PrP, dissolved in NaOH and neutralised as described above, was clearly detectable (data not shown). Therefore, one wire released less than 15 pg PrP, that is less than 3 × 108 molecules. Assuming that one log LD50 unit of infectivity is associated with 105 PrPSc molecules (16), one wire released less than 3000 LD50 units. Yet, the incubation time resulting from one wire is about the same as that following injection of 0.03 ml 1% brain homogenate, which corresponds to about 20,000 LD50 units. This somewhat speculative calculation suggests that the amount of PrP that could have been released from the wire surface does not readily account for the wire’s infectivity, raising the question whether infectivity is due to irreversibly bound PrPSc (or PrP*) (17) rather than to desorbed prions.

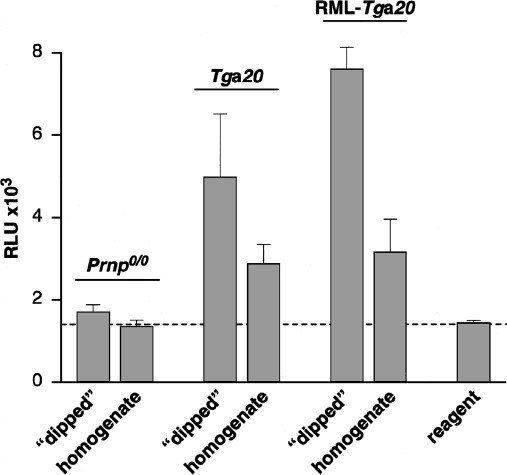

Fig. 1
figure1

Chemiluminescence of surface-bound PrP on stainless steel wires exposed to brain or brain homogenates. Stainless steel wire segments were transiently inserted into brains (“dipped”) or incubated with 10% brain homogenates (homogenate) from PrP knockout mice (Prnp0/0), uninfected (Tga20) and RML-infected, terminally sick Tga20 mice (RML-Tga20). Wires were washed, treated with anti-PrP antibody 6H4 and horseradish peroxidase-conjugated anti-mouse IgG1 antibody, and chemiluminescence was determined. The dotted line indicates the background level, given by reagents alone (reagent). Averages and standard deviations were calculated from three samples each. RLU, relative light units.

Why are wire-bound prions as infectious as concentrated homogenates? Upon intracerebral inoculation with brain homogenate, infectivity is rapidly distributed throughout the mouse (18) and after 4 days or less prions are no longer detectable in the brain (19). Perhaps wire-bound prions are more stable and can therefore act over a longer period of time. We assayed infectious wires directly or after leaving them for 1 or 5 days in brains of Prnp+/+ or Prnp0/0 mice. Table 3. shows that wires remained infectious even after residing in brain tissue for 5 days, albeit at a lower level, as evidenced by incubation times of about 90 days in indicator mice. Because wire-bound infectivity remains at a locally high concentration for 5 days or longer, it may result in a greater total exposure than injected homogenate.

Table 3 Infectivity of prion-coated wire after exposure to brain homogenate, PBS or brain of uninfected mice

The wire model will ultimately serve as model for the sterilisation of surgical instruments by recommended (1,3,20) or novel procedures. In a preliminary experiment, infectious wire segments were subjected to different treatments and assayed. Sodium hydroxide (1 M, 1 h) or guanidinium thiocyanate (4 M, 16 h) rendered the wires completely non-infectious to the limits of the bioassay (Table 4), however all 6 indicator mice challenged with formaldehyde-treated, prion-coated wires succumbed to scrapie after 92 ± 8 days.

Table 4 Infectivity of surface-bound mouse prions after various treatments

These preliminary decontamination studies should not be extrapolated to the level of instruments used in surgery. First, we used RML mouse prions, a mouse-adapted scrapie isolate (21) which is less heat stable than mouse-passaged BSE (301V) or the hamster strain 263K (3,22). It is clearly necessary to conduct sterilisation experiments of surface-bound infectivity using CJD, vCJD and BSE prions in an appropriately sensitive host. Second, the area of contact between wire surface and tissue is very small, compared with that of surgical instruments and it will ultimately be necessary to use scaled-up surfaces, such as could be provided by small steel beads introduced into larger indicator animals, to validate results obtained in the mouse.

Finally, it may become possible to use wires “dipped” for short times into brain or tonsils instead of biopsied tissue to determine the presence of PrPSc by chemiluminescence or infectivity in an appropriate indicator mouse or susceptible cultured cell line.

References

  1. 1.

    Ernst DR, Race RE. (1993) Comparative analysis of scrapie agent inactivation methods. J. Virol. Methods 41 2: 193–201.

    Article  CAS  PubMed  Google Scholar

  2. 2.

    Taylor DM, Fraser H, McConnell I, et al. (1994) Decontamination studies with the agents of bovine spongiform encephalopathy and scrapie. Arch. Virol. 139 (3–4): 313–326.

    Article  CAS  PubMed  Google Scholar

  3. 3.

    Taylor DM. (2000) Inactivation of transmissible degenerative encephalopathy agents: A review. Vet. J. 159 1:10–17.

    Article  CAS  PubMed  Google Scholar

  4. 4.

    Brown P, Gibbs CJ Jr, Amyx HL, et al. (1982) Chemical disinfection of Creutzfeldt-Jakob disease virus. N. Engl. J. Med. 306 (21): 1279–1282.

    Article  CAS  PubMed  Google Scholar

  5. 5.

    Bernoulli C, Siegfried J, Baumgartner G, et al. (1977) Danger of accidental person-to-person transmission of Creutzfeldt-Jakob disease by surgery. Lancet 1 (8009): 478–479.

    Article  CAS  PubMed  Google Scholar

  6. 6.

    Gibbs CJ Jr, Asher DM, Kobrine A, et al. (1994) Transmission of Creutzfeldt-Jakob disease to a chimpanzee by electrodes contaminated during neurosurgery. J. Neurol. Neurosurg. Psychiatry 57 (6): 757–758.

    Article  PubMed  PubMed Central  Google Scholar

  7. 7.

    Hill AF, Zeidler M, Ironside J, Collinge J. (1997) Diagnosis of new variant Creutzfeldt-Jakob disease by tonsil biopsy. Lancet 349 (9045): 99–100.

    Article  CAS  PubMed  Google Scholar

  8. 8.

    Hill AF, Desbruslais M, Joiner S, et al. (1997) The same prion strain causes vCJD and BASE. Nature 389 (6650): 448–450.

    Article  CAS  PubMed  Google Scholar

  9. 9.

    Hill AF, Butterworth RJ, Joiner S. (1999) Investigation of variant Creutzfeldt-Jakob disease and other huma prion diseases with tonsil biopsy samples. Lancet 353 (9148): 183–189.

    Article  CAS  PubMed  Google Scholar

  10. 10.

    Wadsworth JD, Joiner S, Hill AF, et al. (2001) Tissue distribution of protease resistant prion protein in variant Creutzfeldt-Jakob disease using a highly sensitive immunoblotting assay. Lancet 358 (9277): 164–165.

    Article  Google Scholar

  11. 11.

    Zobeley E, Flechsig E, Cozzio A, et al. (1999) Infectivity of scrapie prions bound to a stainless steel surface. Mol. Med. 5 (4): 240–243.

    PubMed  PubMed Central  CAS  Article  Google Scholar

  12. 12.

    Williams RL, Williams DF. (1988) Albumin adsorption on metal surfaces. Biomaterials 9 (3): 206–212.

    Article  CAS  PubMed  Google Scholar

  13. 13.

    Fischer M, Rülicke T, Raeber A, et al. (1996) Prion protein (PrP) with aminoproximal deletions restoring susceptibility of PrP knockout mice to scrapie. EMBO J. 15 (6): 1255–1264.

    PubMed  PubMed Central  CAS  Article  Google Scholar

  14. 14.

    Korth C, Stierli B, Streit P, et al. (1997) Prion (PrPSc)-specific epitope defined by a monoclonal antibody. Nature 390 (6655): 74–77.

    Article  CAS  PubMed  Google Scholar

  15. 15.

    Büeler H, Raeber A, Sailer A, Fischer M, Aguzzi A, and Weissmann C. (1994) High prion and PrPSc levels but delayed onset of disease in scrapie-inoculated mice heterozygous for a disrupted PrP gene Mol. Med. 1 (1): 19–30.

    PubMed  Google Scholar

  16. 16.

    Bolton DC, Rudelli RD, Currie JR, Bendheim PE. (1991) Copurification of Sp33-37 and scrapie agent from hamster brain prior to detectable histopathology and clinical disease. J. Gen. Virol. 72(Pt 12): 2905–2913.

    Article  CAS  PubMed  Google Scholar

  17. 17.

    Weissmann C. (1991) Spongiform encephalopathies. The prion’s progress. Nature 349(6310): 569–571.

    Article  CAS  PubMed  Google Scholar

  18. 18.

    Millson GC, Kimberlin RH, Manning EJ, Collis SC. (1979) Early distribution of radioactive liposomes and scrapie infectivity in mouse tissues following administration by different routes. Vet. Microbiol. 1979, 89–99.

  19. 19.

    Büeler H, Aguzzi A, Sailer A, et al. (1993) Mice devoid of PrP are resistant to scrapie. Cell 73 (7): 1339–1347.

    Article  PubMed  Google Scholar

  20. 20.

    Manuelidis L. (1997) Decontamination of Creutzfeldt-Jakob disease and other transmissible agents. J. Neurovirol. 3 (1): 62–65.

    Article  CAS  PubMed  Google Scholar

  21. 21.

    Chandler RL. (1961) Encephalopathy in mice produced by inoculation with scrapie brain material. Lancet 1:1378–1379.

    Article  CAS  PubMed  Google Scholar

  22. 22.

    Taylor DM, Fernie K, McConnell I, Steele PJ. (1998) Observations on thermostable subpopulations of the unconventional agents that cause transmissible degenerative encephalopathies. Vet. Microbiol. 64 (1): 33–38.

    Article  CAS  PubMed  Google Scholar

Download references

Acknowledgements

We thank Dr. Adriano Aguzzi for his constant support and advice, and Mr. Rob Bond and Mr. Joseph Ecsödi for help with the animal work. This work was funded by the UK Department of Health and the Medical Research Council.

Author information

Affiliations

Authors

Corresponding author

Correspondence to Charles Weissmann.

Additional information

These authors contributed equally to this work.

Communicated by C. Weissmann.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Flechsig, E., Hegyi, I., Enari, M. et al. Transmission of Scrapie by Steel-surface-bound Prions. Mol Med 7, 679–684 (2001). https://doi.org/10.1007/BF03401958
