Islet Amyloid Development in a Mouse Strain Lacking Endogenous Islet Amyloid Polypeptide (IAPP) but Expressing Human IAPP
© Picower Institute Press 2000
- Accepted: 8 September 2000
- Published: 1 December 2000
Several mouse strains expressing human islet amyloid polypeptide (IAPP) have been created to study development of islet amyloid and its impact on islet cell function. The tendency to form islet amyloid has varied strongly among these strains by factors that have not been elucidated. Because some beta cell granule components are known to inhibit IAPP fibril formation in vitro, we wanted to determine whether a mouse strain expressing human IAPP but lacking the nonamyloidogenic mouse IAPP is more prone to develop islet amyloidosis.
Materials and Methods
Such a strain was created by cross-breeding a transgenic mouse strain and an IAPP null mouse strain.
When fed a fat-enriched diet, male mice expressing only human IAPP developed islet amyloid earlier and to a higher extent than did mice expressing both human and mouse IAPP. Supporting these results, we found that mouse IAPP dose-dependently inhibits formation of fibrils from human IAPP.
Female mice did not develop amyloid deposits, although small extracellular amorphous IAPP deposits were found in some islets. When cultivated in vitro, amyloid deposits occurred within 10 days in islets from either male or female mice expressing only human IAPP. The study shows that formation of islet amyloid may be dependent on the environment, including the presence or absence of fibril inhibitors or promoters.
Islet amyloid polypeptide (IAPP, amylin) is a regulatory peptide, expressed by pancreatic islet beta cells and stored and released together with insulin (1). The normal function of IAPP is insufficiently understood but experimentally many different effects have been described (e.g., on insulin and glucagon release, peripheral glucose utilization, satiety, and gastric emptying) (2).
IAPP was discovered as a component of extracellular amyloid deposits in the islets of Langerhans of diabetic individuals (3). This is a long recognized pathological phenomenon in which islets may gradually be converted to amyloid. Islet amyloid deposition is seen in conjunction with aging but is especially common and pronounced in association with type 2 diabetes mellitus. Up to 95% of individuals with type 2 diabetes have been found to have some degree of islet amyloidosis (4). Islet amyloid was long ignored as a possible pathogenetic factor in diabetogenesis. However, an increasing interest in this pathological feature has arisen in recent years, and islet amyloid is now generally considered to be of pathogenic importance for the late beta cell impairment in type 2 diabetes (5,6).
The mechanism underlying the aggregation of normally soluble IAPP molecules into insoluble amyloid fibrils in vivo is unclear. The 37 amino acid residue IAPP has a central segment (residues 20–29) that determines its aggregation properties (7). Amino acid variations in this segment explain why IAPP only gives rise to islet amyloid in certain species. Specifically, proline residues at positions 24 and 28 as in the rat and mouse IAPP are believed to disrupt β-structure, a necessary feature for amyloid fibril formation, whereas the amino acid sequences found in human and cat IAPP facilitate amyloidogenesis (8).
No easily available animal models exist for the study of pathogenesis or impact of the islet amyloid. Because human IAPP (hIAPP) is amyloidogenic whereas mouse IAPP (mIAPP) is not, several transgenic mouse strains have been created to study the process of amyloidogenesis and the subsequent islet lesions (9–12). The constructs have varied but all expression of IAPP has been directed to the beta cells by the use of insulin gene promoters. Consequently, the production of IAPP in these mice has been much higher than normal resulting in a higher than normal IAPP to insulin ratio in the pancreas and plasma. However, the occurrence of amyloid deposition in these transgenic mouse strains has been highly variable. In one of the strains, islet amyloid has been reported to occur when the animals have been placed on a high fat diet (13). In other strains, amyloid developed when the animals were treated with growth hormone or when crossed into insulin-resistant mouse strains (14–16). In one of the strains, islet amyloid has been reported to occur spontaneously in male homozygous mice (15). Other strains, despite comparably high levels of hIAPP, fail to develop significant islet amyloid deposits.
We have been working with a transgenic mouse strain, which expresses hIAPP driven by the rat insulin I promoter (11). This mouse strain has plasma IAPP levels that are 5–10 times higher than normal. The mice, however, do not develop islet amyloid at any age, even if the animals have been made insulin-resistant by corticosteroid treatment or by crossing into ob/ob genetic background (17). Similar to another hIAPP-expressing mouse strain, islet amyloid forms rapidly when isolated islets from the mice are cultivated in vitro (17–19). The reasons for these discrepancies among the different transgenic mouse strains are unknown.
It is possible that the endogenous mIAPP may interfere with amyloid fibril formation. This is a not unreasonable possibility because we (20) as well as others (21) have carried out experiments that indicate that various beta cell granule components affect fibril formation from hIAPP in vitro. Recently, a mouse strain that lacks IAPP has been created by gene targeting (22). These mice have normal fasting blood glucose and plasma insulin concentrations and they reproduce normally. However, adult males of the IAPP null strain have a significantly increased plasma insulin response upon glucose loading (22). We have crossed this IAPP null mouse strain with homozygous hIAPP transgenic animals to create a mouse strain that expresses only hIAPP. In this communication, we provide some basic data regarding this novel strain, and demonstrate that these animals are more susceptible to islet amyloid formation than mice expressing both mIAPP and hIAPP.
A strain expressing hIAPP but not mIAPP was established by stepwise breeding of transgenic mice carrying the human IAPP gene (11) with IAPP null mutant (mIAPP−/−) mice (22). To assess the presence of the human IAPP gene, DNA was extracted from blood samples and analyzed by polymerase chain reaction (PCR) with the human IAPP-specific primers 5′ AAATGCAACACTGCCACATGT and 3′ CCATATATTCACACTGGAG. Presence of the mouse IAPP gene was detected by Southern blotting (22). The mice used were inbred for at least ten generations, and were either homozygous (+/+) or heterozygous (+/−) with regard to the hIAPP gene.
Weight Gain in Animals on Ordinary Diet
The weight gain was monitored over 15 months in a group of 14 male hIAPP+/−/mIAPP−/− mice and in 14 male mLAPP−/− mice. These animals were housed individually with free access to standard chow and water and were kept on a 12-hr light and dark cycle.
Effects of Fat-rich Diet
Because islet amyloid was reported to occur in one hIAPP transgenic mouse strain after being fed a fat-rich diet (13), and because high-fat diet increases the plasma IAPP: insulin molar ratio in normal mice (23), animals were fed a fat-rich diet. The diet was based on lard and contained 24% fat (AnalyCen, Lidköping, Sweden). Control mice were fed normal standard chow containing 4.5% fat. The percentage of saturated fatty acids was 47% and 22%, respectively. Thirty-eight hIAPP+/+/mIAPP−/− male mice were housed individually and divided into two equal groups each fed the separate diet. The weight gain and blood glucose levels were determined monthly. Six animals from each group were sacrificed after 6, 9, or 12 months (three animals died during the experimental time, and the group of five animals fed a low-fat diet were sacrificed after 12 months). Twenty-four hIAPP+/+/mIAPP−/− female mice were divided into two equal groups and fed different diets. The animals were housed in four groups, each containing six individuals. These animals were sacrificed after 9 and 12 months.
Blood glucose concentrations were determined in blood samples obtained from the orbital sinus in mice that had been fasted for 12 hr. Animals were sacrificed by cervical dislocation after which the thoracic and abdominal cavities were opened and blood was collected from the heart. Pieces of the pancreas were fixed in formalin (vide infra). IAPP and insulin plasma concentrations were measured by radioimmunoassays as described (17).
Pancreatic Tissue Analyses
Pancreatic tissue was fixed in 10% buffered neutral formalin and embedded in paraffin. For the demonstration of amyloid in tissue sections, alkaline Congo red and thioflavin T were used on 10-µm thick sections (24). Deparaffinized sections (5 µm) were immunolabeled with guinea pig antiinsulin serum (Dako, Copenhagen, Denmark; 1:1000). These sections were subsequently incubated with peroxidase conjugated rabbit anti-guinea pig antibodies (Dako) diluted 1:1000. Other sections were incubated with mouse monoclonal antibody to glucagon (Novaclone, Malmö, Sweden; 1:4000), rabbit anti-somatostatin serum(Dako; 1:2000) and anti-pancreatic polypeptide (PP) serum (Dako; 1:2000). Islet amyloid polypeptide immunoreactivity was visualized with the rabbit antisera A110 and A133, diluted 1:1000 and 1:400, respectively. Antiserum A110 reacts with both human and mouse IAPP whereas A133 is specific for human IAPP (17). The reactions were detected by incubation with biotinylated swine anti-rabbit antibodies or biotinylated goat anti-mouse antibodies 1:200 followed by streptavidinperoxidase (Dako; 1:500). 3,3′-diaminobenzidine tetrahydrochloride was used to visualize the reactions.
The islet areas and areas of cells containing insulin, glucagon, somatostatin, and pancreatic polypeptide were measured in pancreata from five male and five female hIAPP+/+/ mIAPP−/− mice and from five male and five female IAPP deficient mice. In all mice, ten randomly chosen islets in each of three sections from different levels of the pancreatic tissue block were measured. For this, an image analysis program was applied as described (25). The areas of the respective cells were expressed as percentage of the islet area. The islet size was estimated by measuring the islet areas in sections stained with hematoxylin and eosin from three different levels of the pancreatic body.
Amyloid Formation in Islets Cultivated In Vitro
Islet amyloid has been mainly described to occur in male mice and to a much lesser extent in female mice. We wanted to investigate whether this also was true for amyloid developed in vitro.
Islets were isolated from six female and six male hIAPP+/+/mIAPP−/− mice, 3–6 months of age. Pancreatic tissue was excised and cut into small pieces and digested under vigorous shaking in collagenase P (1.5 mg/pancreas) for 10 min at 37°C. Individual islets were hand-picked and cultured in RPMI medium supplemented with 10% fetal calf serum. Half of the islet material was harvested from culture after 10 days and the remaining islets after 14 days. The islets were fixed in a mixture of 2% paraformaldehyde and 0.25% glutaraldehyde in 0.1 M phosphate buffer, pH 7.4, and thereafter embedded in Unicryl (British BioCell, Cardiff, UK). Ultrathin sections were immunolabeled with the human-specific antibody A133 against IAPP, diluted 1:100. Bound antibodies were visualized with 10 nm protein A-gold labeled goat anti-rabbit antibodies (British Biocell).
Kinetic Studies of the Effect of mIAPP on hIAPP Amyloid Fibril Formation
Synthetic mIAPP (Chiron, Australia) and hIAPP (Keck Center, Yale University, New Haven, CT, Yale, PA, USA) were dissolved 10 mg/ml in dimethylsulfoxide (DMSO). The assay was performed in 50 mM Glycine −25 mM sodium phosphate buffer, pH 7.0, containing 10 µM Thioflavin T, at 20°C (26). The final concentration of hIAPP was 1 µmol/100 µl in 4% DMSO. The fluorescence was measured every 15 min in an Ascent fluorescence plate reader (Labsystems, Helsinki, Finland) with excitation 444 nm and emission 485 nm.
Mean areas of pancreatic islets in hIAPP+/+ mIAPP − / − mice and mIAPP−/− mice
Male mice (n = 5)
324 ± 16
255 ± 33
Female mice (n = 5)
275 ± 42
347 ± 56
Compositional analysis of pancreatic islets in hIAPP+/+ mIAPP−/− mice and mIAPP−/− mice
hIAPP+/+ mIAPP−/− mice (n = 5) male
67.2 ± 1.0
7.2 ± 0.3
4.9 ± 0.3
4.4 ± 0.9
mIAPP−/− mice (n = 5) male
65.6 ± 0.9
8.4 ± 0.6
6.4 ± 0.7
4.8 ± 1.0
hIAPP+/+ mIAPP−/− mice (n = 5) female
66.4 ± 1.2
7.6 ± 0.5
5.8 ± 0.4
3.2 ± 0.9
mIAPP−/− mice (n = 5) female
67.3 ± 0.9
7.8 ± 0.7
5.2 ± 0.8
3.6 ± 0.9
At the age of 3 weeks, there was a tendency toward higher body weight in hIAPP+/−/mIAPP−/− male mice, but this difference did not reach statistical significance (p = 0.08). From the age of 10 weeks, the weight curves had changed, and there was a tendency for the mIAPP−/− males to gain more weight than the hIAPP+/−/mIAPP−/− males (p = 0.07). At 20 and 30 weeks, these latter differences in weight gain were statistically significant (p < .04 and p < .03, respectively).
Weight Gain, Blood Glucose and Islet Amyloid in Male and Female hIAPP+/+/mIAPP−/− on Fat-rich Diet
In Vitro Studies
Islets from hIAPP+/−/mIAPP−/− mice, cultivated in vitro at a glucose concentration of 11 mM/l and harvested after 10 and 14 days, contained small extracellular deposits of IAPP-immunoreactive amyloid fibrils. There was no difference in amyloid content between islets from male and from female mice. Most deposits were extracellular but, as found with the in vivo-formed amyloid, minor deposits occurred intracellularly. The extracellular deposits were usually associated with basement membranes and were in close contact with the islet beta cells (data not shown).

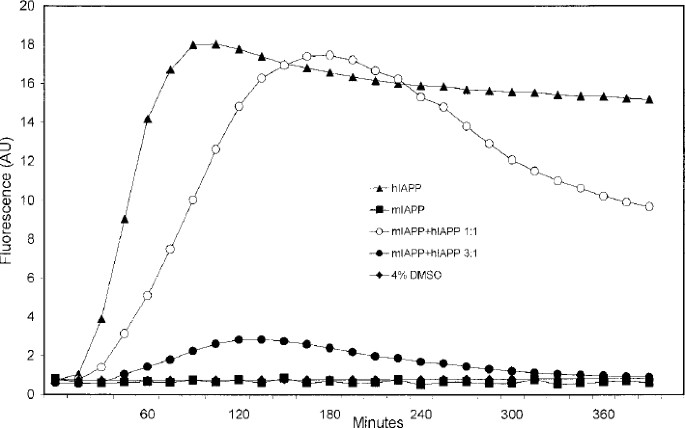

Effects of mIAPP on hIAPP Amyloid Fibril Formation
Deposition of amyloid is a highly characteristic pancreatic islet abnormality in type 2 diabetes. Although the biochemical nature of the amyloid has been elucidated and some mechanisms important for fibril formation from IAPP in vitro are known, its formation in vivo is poorly understood. Overexpression of IAPP has been believed to be the sole major factor, but the absence of islet amyloid in several transgenic mouse strains with very high production of hIAPP have contradicted this supposition. Obviously, an amyloidogenic IAPP is a prerequisite for amyloid formation, but additional factors must operate in the IAPP amyloidogenesis. Such factors may be the existence of components facilitating fibril formation (27), but the possible loss of a protective mechanism that normally suppresses conformational changes or aggregation should also be considered. Among the former are heparan sulfate proteoglycan (28) and nidus formation (29), and among the latter, are beta cell granule components (20). A delicate balance among the various beta cell granule components could be important for a nonaggregated state of hIAPP (and any other putative amyloidogenic IAPP species).
We postulated that the presence of mIAPP in beta cell granules of hIAPP transgenic mice might partially inhibit islet amyloid formtion. This supposition was verified in the in vitro experiment where it was found that murine IAPP in ratios of 3/1 or above almost completely abolishes fibrillogenesis. At lower mIAPP concentrations, fibril formation by hIAPP did occur, but it was significantly delayed. We therefore reasoned that a mouse strain expressing hIAPP but lacking mIAPP should more closely mimic the situation in human islets. The finding that islet amyloid occurred earlier than we previously have recorded in this hIAPP transgenic mouse strain clearly supports the theory that the presence of mIAPP affects the formation of amyloid fibrils from hIAPP.
It has been found that amyloid deposits form much faster in islets from hIAPP transgenic mice that had been isolated and cultivated in vitro (17,18) compared to islets in vivo. Also, in normal human isolated islets, transplanted under the renal capsule in nude mice, development of amyloid is rapid, although initially this amyloid occur intracellularly (30). The same rapid development of islet amyloid was recorded in the present study with the hIAPP+/+/ mIAPP−/− mice. The reason for the discrepancy between in vivo and in vitro situations is not clear, but it has been suggested that clearance of IAPP may be lower in in vitro-cultivated islets, creating an abnormally high concentration of hIAPP outside beta cells (31). It is also possible that other changes in the extracellular micromilieu of the beta cells occur in vitro that may promote fibril formation.
It has been seen repeatedly that male hIAPP transgenic mice are much more prone to develop islet amyloid as compared to their female counterparts. Whether or not this is a hormonal effect has not been shown. From our in vitro study, however, it is evident that islet amyloid forms to the same degree in islets obtained from either female or male hIAPP transgenic animals.
The slight but statistically significant lower weight gain in male hIAPP+/−/mIAPP−/− mice is of potential interest. Infusion of IAPP has been shown to alter eating habits in rats and to reduce their weight gain, probably by affecting the central nervous system (32,33). However, the mechanism behind the lower weight gain in the mice expressing human IAPP may be multifactorial, and further studies are needed to make clear a role for IAPP.
This work was supported by the Swedish Medical Research Council (project No 5941), the Research Fund of the Swedish Diabetes Association, and the Novo Nordisk Foundation.
- Westermark P, Johnson KH, O’Brien TD, Betsholtz C. (1992) Islet amyloid polypeptide a novel controversy in diabetes research. Diabetologia 35: 297–303.View ArticlePubMedGoogle Scholar
- Schmitz O, Nyholm B, Juhl CB, Lund S, Ørskov L. (1999) Aspects on secretion and actions of amylin: interplay between amylin and other hormones. J. Endocrin. Invest. 22(suppl 5): 33–36.Google Scholar
- Westermark P, Wernstedt C, Wilander E, Sletten K. (1986) A novel peptide in the calcitonin gene related peptide family as an amyloid fibril protein in the endocrine pancreas. Biochem. Biophys. Res. Commun. 140: 827–831.View ArticlePubMedGoogle Scholar
- Westermark P. (1996) Islet pathology of non-insulin-dependent diabetes mellitus (NIDDM). Diabet. Med. 13: S46–48.PubMedGoogle Scholar
- Kahn SE, Andrikopoulos S, Verchere CB. (1999) Islet amyloid: a long-recognized but underappreciated pathological feature of type 2 diabetes. Diabetes 48: 241–253.View ArticlePubMedGoogle Scholar
- Janson J, Ashley RH, Harrison D, McIntyre S, Butler PC. (1999) The mechanism of islet amyloid polypeptide toxicity is membrane disruption by intermediate-sized toxic amyloid particles. Diabetes 48: 491–498.View ArticlePubMedGoogle Scholar
- Betsholtz C, Svensson V, Rorsman F, et al. (1989) Islet amyloid polypeptide (IAPP): cDNA cloning and identification of an amyloidogenic region associated with the species-specific occurrence of age-related diabetes mellitus. Exp. Cell Res. 183: 484–493.View ArticlePubMedGoogle Scholar
- Westermark P, Engström U, Johnson KH, Westermark GT, Betsholtz C. (1990) Islet amyloid polypeptide: pinpointing amino acid residues linked to amyloid fibril formation. Proc. Natl. Acad. Sci. U.S.A. 87: 5036–5040.View ArticlePubMedPubMed CentralGoogle Scholar
- D’Alessio DA, Verchere CB, Kahn SE, et al. (1994) Pancreatic expression and secretion of human islet amyloid polypeptide in a transgenic mouse. Diabetes 43: 1457–1461.View ArticlePubMedGoogle Scholar
- de Koning EJ, Höppener JW, Oosterwijk C, et al. (1993) Localisation of islet amyloid polypeptide (IAPP) in pancreatic islets of transgenic mice expressing the human or rat IAPP gene. Biochem. Soc. Trans. 21: 26S.View ArticlePubMedGoogle Scholar
- Fox N, Schrementi J, Nishi M, et al. (1993) Human islet amyloid polypeptide transgenic mice as a model of non-insulin-dependent diabetes mellitus (NIDDM). FEBS Lett. 323: 40–44.View ArticlePubMedGoogle Scholar
- Yagui K, Yamaguchi T, Kanatsuka A, et al. (1995) Formation of islet amyloid fibrils in beta-secretory granules of transgenic mice expressing human islet amyloid polypeptide/amylin. Eur. J. Endocrinol. 132: 487–496.View ArticlePubMedGoogle Scholar
- Verchere CB, D’Alessio DA, Palmiter RD, et al. (1996) Islet amyloid formation associated with hyperglycemia in transgenic mice with pancreatic beta cell expression of human islet amyloid polypeptide. Proc. Natl. Acad. Sci. U.S.A. 93: 3492–3496.View ArticlePubMedPubMed CentralGoogle Scholar
- Soeller WC, Janson J, Hart SE, et al. (1998) Islet amyloid-associated diabetes in obese A(vy)/a mice expressing human islet amyloid polypeptide. Diabetes 47: 743–750.View ArticlePubMedGoogle Scholar
- Janson J, Soeller WC, Roche PC, et al. (1999) Spontaneous diabetes mellitus in transgenic mice expressing human islet amyloid polypeptide. Proc. Natl. Acad. Sci. U.S.A. 93: 7283–7288.View ArticleGoogle Scholar
- Höppener JWM, Oosterwijk C, Nieuwenhuis MG, et al. (1999) Extensive islet amyloid formation is induced by development of type 2 diabetes mellitus and contributes to its progression: pathogenesis of diabetes in a mouse model. Diabetologia 42: 427–434.View ArticlePubMedGoogle Scholar
- Westermark G, Arora MB, Fox N, et al. (1995) Amyloid formation in response to beta cell stress occurs in vitro, but not in vivo, in islets of transgenic mice expressing human islet amyloid polypeptide. Mol. Med. 1: 542–553.View ArticlePubMedPubMed CentralGoogle Scholar
- de Koning EJ, Morris ER, Hofhuis FM, et al. (1994) Intra- and extracellular amyloid fibrils are formed in cultured pancreatic islets of transgenic mice expressing human islet amyloid polypeptide. Proc. Natl. Acad. Sci. U.S.A. 91: 8467–8471.View ArticlePubMedPubMed CentralGoogle Scholar
- MacArthur DLA, de Koning EJP, Verbeek JS, Morris JF, Clark A. (1999) Amyloid fibril formation is progressive and correlates with beta-cell secretion in transgenic mouse isolated islets. Diabetologia 42: 1219–1227.View ArticlePubMedGoogle Scholar
- Westermark P, Li ZC, Westermark GT, Leckström A, Steiner DF. (1996) Effects of beta cell granule components on human islet amyloid polypeptide fibril formation. FEBS. Lett. 379: 203–206.View ArticlePubMedGoogle Scholar
- Janciauskiene S, Eriksson S, Carlemalm E, Ahrén B. (1997) B cell granule peptides affect human islet amyloid polypeptide (IAPP) fibril formation in vitro. Biochem. Biophys. Res. Commun. 236: 580–585.View ArticlePubMedGoogle Scholar
- Gebre-Medhin S, Mulder H, Pekny M, et al. (1998) Increased insulin secretion and glucose tolerance in mice lacking islet amyloid polypeptide (amylin). Biochem. Biophys. Res. Commun. 250: 271–277.View ArticlePubMedGoogle Scholar
- Westermark GT, Leckström A, Ma Z, Westermark P. (1998) Increased release of IAPP in response to long-term high fat intake in mice. Horm. Metab. Res. 30: 256–258.View ArticlePubMedGoogle Scholar
- Westermark GT, Johnson KH, Westermark P. (1999) Staining methods for identification of amyloid in tissue. Meth. Enzymol. 309: 3–25.View ArticlePubMedGoogle Scholar
- Ma Z, Westermark GT, Johnson KH, O’Brien TD, Westermark P. (1998) Quantitative immunohistochemical analysis of islet amyloid polypeptide (IAPP) in normal, impaired glucose tolerant, and diabetic cats. Amyloid 5: 255–261.View ArticlePubMedGoogle Scholar
- LeVine H III. (1999) Quantification of β-sheet amyloid fibrils structures with thioflavin T. Meth. Enzymol. 309: 274–284.View ArticlePubMedGoogle Scholar
- Wisniewski T, Frangione B. (1992) Apolipoprotein E a pathological chaperone protein in patients with cerebral and systemic amyloid. Neurosci. Lett. 135: 235–238.View ArticlePubMedGoogle Scholar
- Young ID, Ailles L, Narindrasorasak S, Tan R, Kisilevsky R. (1992) Localization of the basement membrane heparan sulfate proteoglycan in islet amyloid deposits in type II diabetes mellitus. Arch. Pathol. Lab. Med. 116: 951–954.PubMedGoogle Scholar
- Ashburn TT, Lansbury PT. (1993) Interspecies sequence variation affects the kinetics and the thermodynamics of amyloid formation: peptide models of pancreatic amyloid. J. Am. Chem. Soc. 115: 11012–11013.View ArticleGoogle Scholar
- Westermark P, Eizirik D, Pipeleers DG, Hellerström C, Andersson A. (1995) Rapid deposition of amyloid in human islets transplanted into nude mice. Diabetologia 38: 543–549.View ArticlePubMedGoogle Scholar
- Clark A, Charge SB, Badman MK, de Koning EJ. (1996) Islet amyloid in type 2 (non-insulin-dependent) diabetes. A.P.M.I.S. 104: 12–18.Google Scholar
- Arnelo U, Permert J, Adrian TE, Larsson J, Westermark P, Reidelberger RD. (1996) Chronic infusion of islet amyloid polypeptide causes anorexia in rats. Am. J. Physiol. 271: R1654–1659.PubMedGoogle Scholar
- Arnelo U, Blevins JE, Larsson J, et al. (1996) Effects of acute and chronic infusion of islet amyloid polypeptide on food intake in rats. Scand. J. Gastroenterol. 31: 83–89.View ArticlePubMedGoogle Scholar
