Functional Characterization of Three Mutations of the Endothelin B Receptor Gene in Patients With Hirschsprung’s Disease: Evidence for Selective Loss of Gi Coupling



Hirschsprung’s disease (HSCR) is one the most common congenital intestinal disease. It leads to aganglionic megacolon in the early childhood. Several susceptibility genes have been identified: RET protooncogene and its ligand, glial cell derived neutrophic factor (GDNF), Sox 10, Endothelin-3 (EDN3) and its receptor B (EDNRB). EDNRB mutations are found in 5% of familial or sporadic HSCR. Only few EDNRB mutations found in HSCR have been explored and some of them seem to be non fonctional variants.

Materials and Methods

The properties of three mutant human endothelin B receptor (hETB) (G57S, R319W and P383L) in isolated HSCR were analyzed. Stable recombinant cells expressing the three mutants and the wild-type (WT) were established. The hETB receptors were characterized for 125I ET-1 binding, ET-1 induced signaling: calcium transient, AP-1 transcriptional factor activation and cAMP accumulation.


Immunofluorescence experiments showed normal cellular distributions of the mutant G57S, R319W and WT hETB receptors. In contrast, the P383L hETB mutant receptor was concentrated near the nucleus and essentially no ET-1 binding was detected. The two other mutants (G57S and R319W) bound ET-1 normally, induced calcium transients and activated the AP-1 pathway in the same way as wild type, but did not inhibit adenylate cyclase. The G57S hETB mutant even stimulated cAMP accumulation which was blocked by pertussis toxin.


The absence of the P383L mutant receptor from the membrane clearly indicates that this mutation could be involved in HSCR. The G57S and R319W mutant receptors, despite their normal coupling to Gαq, have a defect in the Gαi signaling pathway and the G57s mutation couples to Gαs. These observations allow us to hypothesize that cAMP signaling might be involved in the differenciation of neural cells in the bowel.


Hirschsprung’s disease (HSCR) is a frequent congenital intestinal malformation affecting 1 in 5000 live births (1), characterized by the absence of ganglion cells in the distal portion of the intestinal tract. HSCR causes severe neonatal intestinal obstruction that requires surgical treatment, which currently ensures a favorable prognosis. The enteric nervous system is formed by the migration and differentiation of neural crest cells (2). HSCR is believed to be caused by the premature differentiation of these migrating neural crest cells before they reach the entire bowel (3).

Genetic and animal studies have uncovered several genes that make children susceptible to HSCR, two ligand/receptor pairs and a transcription factor. For a recent review see Chakravarti et al. (4). The gene that is most often mutated in HSCR is the RET protooncogene. There may also be mutations in its ligand gene: glial cell-derived neutrophic factor (GDNF) in HSCR (5,6). The Sox 10 gene, which encodes a transcriptional factor expressed in neural crest cells, is mutated in some cases of aganglionic bowel (7) and its murine homologue (Dom) leads to dominant megacolon when mutated (8).

Endothelin (ET)-3 and its receptor ETB is another ligand/receptor combination that plays an important role in the development of the enteric nervous system (9). ET-3/ETB inhibit the differentiation of neural crest cells. Both ETB and ET-3 are needed to prevent the premature differentiation of crest-derived cells that leads to aganglionosis (3). Mice with a targeted null disruption of either EDNRB or EDN3 have the same phenotype, coat colors spotting, and aganglionic megacolon, which is similar to those of “lethal spotted” and “piebald lethal” phenotypes in mice(10) and HSCR or Shah-Waardenburg syndrome in humans (11,12).

The endothelins (ET-1, ET-2 and ET-3) are 21 amino acids, vasoactive peptides. They act via two distinct high-affinity endothelin receptor subtypes, ETA (13) and ETB (14), which are seven-transmembrane G protein-coupled receptors. The ETA receptor binds ET-1 and ET-2, but not ET-3 at physiological concentrations, whereas ETB binds all three ETs with similar affinities.

Several mutations of EDNRB have also been reported in HSCR patients (1521). But few studies to date have reported a functional analysis of the mutations identified. Three mutant hETB receptors were analyzed by Tanaka et al. (1998) (22). The N104I receptor had almost the same functional properties as the wild-type hETB receptor, the C109R receptor was not translocated into the plasma membrane and the S390R mutation impaired all intracellular signalings. A recent paper from Imamura et al. (23) described the impairment of Gq coupling protein associated with the mutation W276A/C, whereas Gi coupling was not affected.

We have examined the functionality of three mutant human ETB receptors. Amiel et al. (19) found these heterozygous hETB missense mutations (G57S, R319W and P383L) in isolated cases of Hirschsprung disease children. The three mutations correspond to three transitions, G to A at nucleotide 399, C to T at nucleotide 1185, and C to T at nucleotide 1378. The first transition results in the substitution of glycine for serine at position 57 (G57S), the second in the substitution of arginine for tryptophan at position 319 (R319W), and the third for the substitution of a proline for leucine at position 383 (P383L). The G57S mutation is in the extracellular N-terminal region of the ETB receptor, R319W is within the third cytoplasmic loop and P383L is in the end of the seventh transmembrane domain (Fig. 1, top). Alignment with other species shows that the sequences surrounding the mutations R319W and P383L are highly conserved, contrasting with the G57S region (Fig. 1).

Fig. 1

Representation of the three mutant hETB receptors. Locations of the three mutations in a schematic representation of ETB and sequence homologies between species—Comparisons of human (44), rat (45), mouse (10), bovine (46), and horse (47) ETB sequences using the programme MacVector. Sequences around the R319W and P383L mutations are highly conserved among species, whereas those around the G57S mutation are not.

Each mutation occurs sporadically in HSCR patients and they are inherited from an asymptomatic carrier, the mother. We investigated the relationship between the G57S, R319W and P383L hETB mutant receptors described by Amiel et al. (19) and HSCR by analyzing the functional properties of these mutant hETB receptors using transfected wild-type or mutant hETB receptors into CHO and HEK-293 cells to study the signaling cascades of their activations.

Experimental Procedures

Plasmid Constructs

Human ETB (hETB) cDNA (14) was subcloned into pcDNA3 (Invitrogen®) to create pcDNA3-ETB. The 6xTRE-Coll-LUC plasmid (24) and pCH110 (25) have been described elsewhere.

The cDNAs encoding the mutant hETB receptors, G57S, R319W and P383L were constructed by site-directed mutagenesis.

G57S SITE-DIRECTED MUTAGENESIS. The plasmid pcDNA3-G57S was constructed with two PCR amplified fragments using the following oligonucleotides: T7 59-TAATACGACTCAACTAT AGGG-39 and G57S-Rev 59-CCCGGGTGGCGTCATTATCTCT-GCGGTTTG-39 to amplify the first fragment and oligonucleotides: G57S-Fr 59-AGTACTAAGACCT-TATGGC CCAAGAGTTCCA-39 and EcoRV-Rev59-AAGCAACAGCTCGATATCTGTCAA TAC-39 to amplify the second fragment. The first amplified PCR fragment was digested with BamHI and SmaI and the second with ScaI and EcoRV. The two digested fragments were then ligated by blunt end sites: Sma I and Sca I, and inserted into the plasmid pcDNA3-ETB digested with BamHI and EcoRV to create pcDNA3-G57S.

R319W SITE-DIRECTED MUTAGENESIS. The plasmid pcDNA3-R319W was constructed with two PCR reactions, using EcoRV-Fr 59-GTATTGACGATATC-GAGCTGTTG-CTT-3′ and R319W-Rev 5′-TTTTGGCCACTTCCCATCTCT-GCTTTAGGT-3′ to amplify the first fragment, and R319W-Fr 5′-GCTTTAAATGATCACCTAAAGCAGAGATGGGA AGTGG-3′ and EcoRI-Rev 5′-GCAGGAATTCAGTGAAG-CGAGTT-3′ to amplify the second fragment. These two PCR products were mixed and subjected to a new PCR reaction with the oligonucleotides EcoRV-Fr and EcoRI-Rev. The overlapped amplified fragment containing the mutation was then digested with EcoRI and EcoRV and inserted into pcDNA3-ETB plasmid digested with EcoRI/EcoRV to create pcDNA3-R319W.

P383L SITE-DIRECTED MUTAGENESIS. The plasmid encoding the mutation P383L in hETB receptor was named pcDNA3-P383L and created by fragment mutagenesis. The mutated fragment was amplified by PCR using the following oligonucleotides: P383L 59-TTCACTGAATTCCTGCATTAACCTAATTGCTCGTA-39 and SP6 59-GCATTTA GGTGACACTATAGAATAG-39. The plasmid pcDNA3-ETB and the amplified fragment containing the mutation were digested with EcoRI and XbaI, and then ligated to create pcDNA3-P383L.

The plasmids corresponding to the different mutant hETB receptors were characterized by restriction enzyme analysis and verified by DNA sequencing on an ABI Prism 377 DNA Sequencer (PE Applied Biosystems).

Cell Culture and Transfection

Chinese hamster ovary (CHO) (ATCC n8CRL 9606) were cultured in Ham’s F-12 Nutrient Mixture (HAM F-12) (Gibco BRL) and HEK-293 cells (ATCC n8CRL 1573) were cultured in Dulbecco’s modified eagle medium (DMEM) (Gibco BRL), both supplemented with 10 nM glutamine and 10% fetal calf serum (FCS), in a humified atmosphere of 5% CO2 and 95% air. Cell transfections for transient and stable expression were performed using FuGENE™6 transfection reagent (Roche Diagnostics). For stable expression, CHO cells expressing the wild type (WT) and the mutant hETB receptors were grown in the presence of geneticin (750 µg/ml) to select the transfected cells. The resulting cloned cells were routinely cultured in the presence of 300 µg/ml geneticin.

CHO cells were made to stably express the æquorin gene (26) by Parnot et al. (27). These cells were then cultured routinely as described above for the other CHO recombinant cells.

Radioligand Binding Assays

The CHO cells expressing the WT or mutant hETB receptors were plated in 24-well plates for competitive binding experiments. They were incubated at 48C for 15 min in buffer A (50 mM Tris HCl pH 7.4, 150 mM NaCl, 5 mM MgCl2 and 40 mg/l bacitracin) and then for 90 min at room temperature in buffer A containing 10 mg/ml bovine serum albumin (Sigma Aldrich), 50 µM phosphoramidon (Sigma Aldrich) and 125I ET-1 (106cpm/well) (Amersham Pharmacia Biotech). Competition experiments were carried out with various concentrations of unlabeled ET-1, or the selective ETB agonist, succinyl-(Glu9, Ala11,15)-endothelin-1(821) (IRL 1620) (28). Bound and free ligands were separated by washing cells 4 times with 50mM Tris-HCl pH 7.4 at 48C, and the cells were then counted in a gamma counter (TopCount, Packard) with Microscint 20 (Packard). Non-specific binding was defined as the binding measured in the presence of 100 nM unlabeled ET-1

Measurement of Calcium Transient

Æquorin containing CHO cells were grown in 96-well plates and transiently transfected with cDNA encoding WT or mutant hETB receptors cDNA. Twenty-four hours later the cells were incubated for 120 min at 378C in 50 µl/well medium supplemented with 0.5 µM cœlenterazine (Molecular Probes, Eugene USA), washed twice and then incubated for 30 min at room temperature in 50µl ÆQ buffer (0.3 mM CaCl2, 1 mM MgCl2, 125 mM NaCl, 5 mM KCl, 5.5 mM glucose, 20 mM Hepes, pH 7.3). Activation was performed by adding 50 µl ET-1 per well at various concentrations and counting luminescence 30 sec later (TopCount, Packard).

Characterization of AP-1 Pathway

Recombinant CHO cell lines bearing the WT or the mutant hETB receptors were plated in 12-well plates and transiently transfected with 1.4 µl FuGENE™6 transfection reagent, 0.5 µg 6xTRE-Coll-LUC plasmid (24) and 200 ng pCH110 (25) overnight. The culture medium was then changed and the cells stimulated with various concentrations of ET-1 or IRL 1620 (29) for 24 hours. The cells were washed three times with cold 1X phosphate-buffered saline (PBS) and lysed with 200 µl Reporter Gene Assay Lysis Buffer (Roche Diagnostics). A 30 µl aliquot was mixed with 30 µl Luciferase Reporter Buffer (PROMEGA) in a scintillation microplate and the luminescence was counted (TopCount, Packard) to measure luciferase activity. β-galactosidase activity was determined by measuring the luminescence of a 30 µl aliquot using β-galactosidase Reporter Gene Assay (Roche Diagnostics).

cAMP Accumulation Assay

CHO and HEK-293 cells were grown in 24-well plates to 80% confluency and transfected with cDNA for WT or mutant hETB receptors for 48 hours. The cells were incubated for 2 hours in Kreb-Ringer buffer (10 mM Hepes, 118 mM NaCl, 2.5 mM CaCl2, 4.75 mM KCl, 1.2 mM MgSO4, 1.2 mM KH2PO4, 24 mM NaHCO3, 11.1 mM glucose, 0.3% BSA) at 37 8C and then in Kreb-Ringer buffer containing 1024 M 3-isobutyl-1-methylxanthine (IBMX) (Sigma Aldrich) at 378C for 30 min. The medium was then changed and the cells stimulated at 378C with various concentrations of ET-1 in Kreb-Ringer solution containing 1024 M IBMX for 30 min. The medium was then removed and the cells were treated for 15 min with 1.5 ml cold 65% ethanol on ice. One milliliter of ethanol was saved and dried in a Speed-Vac. The cAMP contents were then measured by radioimmunoassay using the Biotrak™ cAMP[125I] assay system (Amersham).


The cells were fixed for 1 hour in 4% paraformaldehyde containing 3% sucrose and then immersed in 50% ethanol in PBS for 10 min. They were blocked by incubation for 1 hour with 10% fetal calf serum in PBS, and then incubated with 4 µg/ml anti-hETB receptor antibody for 12 hours at 48C. The antiserum was raised against a peptide (CLKFKANDHGYD-NFRSSNKYSSS) corresponding to the carboxyl terminus (420–442) of the hETB receptor (30). The cells were washed and incubated in PBS containing 1% fetal calf serum and the Cy3-conjugated sheep antirabbit F(ab′)2 fragment antibody for 3 hours at room temperature. Fluorescent images were photographed under a microscope (Zeiss) and digitalized using a coolsnap camera (Kodak). Cells were treated with 102 6 M ET-1 for 30 min at 48C, fixed and examined for internalization of WT and mutant hETB receptors.


Affinities of the Wild-Type and Mutant hETB Receptors for ET-1

We looked for the implication of these mutations in a predisposition to HSCR by examining their affinities for ET-1. We carried out competitive binding experiments using intact CHO cells transiently and permanently bearing WT or mutant hETB receptors. The specific binding of ET-1 to G57S and R319W receptors was similar to its binding to the WT hETB receptor (Fig. 2). Untransfected CHO cells showed no specific binding. In competitive binding experiments unlabeled ET-1 was similarly displaced from G57S, R319W and the WT hETB receptors. These results indicate that the affinities of G57S and R319W mutant receptors for ET-1 are very similar to those of the WT hETB receptor. In contrast, P383L mutant receptors bound 125I ET-1 very poorly (Fig. 2).

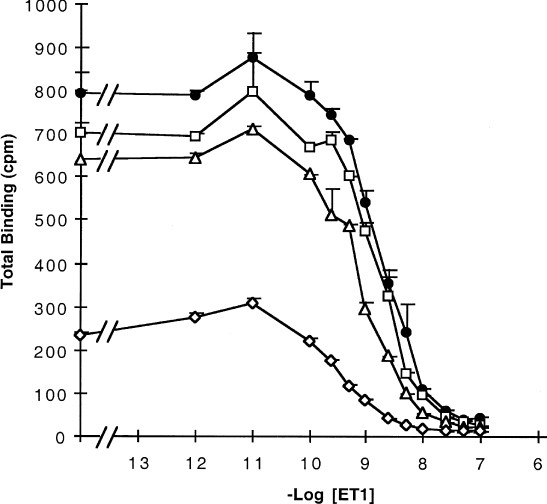

Fig. 2

Characterization of the recombinant CHO cell lines permanently bearing the WT or mutant hETB receptors. The binding assay was performed on intact cells using 100-pM labeled 125I ET-1. 125I ET-1 binding to CHO cells bearing the WT hETB receptor (d), or the mutant hETB receptors G57S (□), R319W () and P383L () was displaced with various concentrations of unlabeled ET-1. Results are expressed in counts per minute (cpm) and correspond to the means 6 SEM of triplicates.

Subcellular Distributions of Wild-Type and Mutant hETB Receptors in CHO Cells

CHO cells were immunostained with an anti-hETB receptor antibody to show that the mRNAs for each receptor transfected were actually produced and translated. This antibody (30) was raised against a peptide (420–442) corresponding to the C-terminal part of the human ETB receptor and was used to determine the subcellular distributions of all the mutant receptors.

The synthesis and presence of the receptor was shown by immunostaining CHO cells transfected with the wild-type receptor or each of the three mutant receptors (Fig. 3). CHO cells transfected with empty pcDNA3 showed no immunostaining (not shown). The distributions of the wild-type (Fig. 3A), G57S (Fig. 3C) and R319W (Fig. 3E) mutant hETB receptors were all similarly diffusely distributed around the periphery of the cells. In contrast, the P383L mutant hETB receptor was observed near and around the nucleus (Fig. 3G), indicating limited access of ET-1.

Fig. 3

Localization and internalization of WT and mutant hETB receptors in CHO cells. hETB was detected using a specific antibody (30). The cells were fixed in 4% paraformaldehyde and permeabilized with 50% ethanol. (A,B) WT, (C,D) G57S, (E,F) R319W, and (G) P383L. For internalization, the cells were treated with 102 6 M ET-1 for 30 min at 48C before fixing and treatment. (B) WT, (D) G57S, and (F) R319W. Control reactions performed using untransfected CHO cells showed no staining (data not shown).

The internalization of WT, G57S and R319W hETB receptors was analyzed by treating the cells with 102 6 M ET-1 for 30 min at 48C and immunostaining for ET-1. The wild-type (Fig. 3B), G57S (Fig. 3D) and R319W (Fig. 3F) mutant hETB receptors all behaved similarly; they were all in the cytoplasm of the cells with a punctuated distribution.

Intracellular Signaling of the Mutant hETB Receptors

LIGAND-INDUCED INTRACELLULAR CA21 TRANSIENTS. In-tracellular calcium transients were analyzed using CHO cells permanently containing æquorin in their cytoplasm (27). The binding of three calcium ions to the æquorin/cœlenterazine complex allows cœlenterazine to be cleaved by æquorin, emitting light. The luminescence increases proportionally with the intracellular calcium concentration.

CHO cells producing æquorin were transiently transfected with the expression vectors encoding the wild-type, G57S, R319W or P383L hETB receptors. The wild-type hETB receptor in CHO-æquorin cells was activated by endothelin to produce a dose-dependent intracellular calcium transient (Fig. 4). Activation was maximal with 102 10 M ET-1. The G57S and R319W mutant hETB receptors caused intracellular calcium transients in response to ET-1 stimulation similar to those of the WT hETB receptor, over a similar range of ET-1 (Fig. 4). In contrast, cells transfected with the P383L hETb receptor produced no intracellular calcium transient when stimulated with ET-1, in agreement with its poor binding of ET-1 and its location (Fig. 2).

Fig. 4

Measurement of ET-1-induced calcium transients in CHO cells bearing WT and mutant hETB receptors. CHO cells producing æquorin (27) were transiently transfected with cDNA encoding WT (d), or mutant G57S (□), R319W () and P383L () hETB receptors. Light emission was measured immediately after stimulation with various concentrations of ET-1 in presence of cœlenterazine. The light emission measured is representative of the calcium transients. Results are expressed in counts per second (cps) and represent the means 6 SEM of three independent experiments.

LIGAND-INDUCED AP-1 PATHWAY. Activation of the AP-1 pathway was measured using the ability of AP-1 transcription factors to bind to the TRE (TPA-responsive element) sequence, which will activate the transcription of genes carrying this sequence in their promoter. CHO cells bearing WT or mutant hETb receptors were transfected with a luciferase reporter gene construct carrying 6 TRE sequences upstream of the minimal promoter of collagenase (24). The binding of agonist to its receptor activated the signaling pathway stimulating AP-1. The AP-1 then bound to the TRE sequences, and stimulated luciferase synthesis. The luciferase activity measured by luminescence was an indicator of AP-1 activation. ET-1 (Fig. 5) and the specific ETB agonist, IRL 1620 (insert panel Fig. 5) bound to the wild-type or the mutant G57S or R319W hETb receptors and caused the same luciferase activity, indicating the same stimulation of the AP-1 pathway. The P383L receptor produced no stimulation of this pathway, either when stimulated with ET-1 or IRL 1620 (data not shown).

Fig. 5

Measurement of AP-1 pathway induced by activation of WT and mutant hETB receptors. CHO cells bearing WT (d), or mutant G57S (□) and R319W (δ) hETB receptors were transiently transfected with the 6xTRE-Coll-LUC plasmid. The AP-1 pathway was induced by various concentrations of ET-1 or specific ETB agonist: IRL 1620 (inset). Luciferase activity is expressed as a percentage of the luminescence of 102 6M agonist. Results are the means 6 SEM of three independent experiments.

LIGAND-INDUCED ADENYLYL CYCLASE ACTIVITY. ET-1 inhibited adenylate cyclase in a dose dependent manner on CHO cells transiently transfected to produce the wild-type hETB receptor. This occurred after stimulation with 1025 M forskolin (data not shown) and in basal conditions (Fig. 6). In contrast, neither G57S nor R319W mutant hETB receptors inhibited the accumulation of cAMP in CHO cells in response to ET-1, with or without forskolin stimulation. Comparable results were obtained using CHO cells stably transfected with genes for WT and mutant hETB receptors (data not shown).

Fig. 6

Effects of ET-1 on cAMP accumulation in CHO cells bearing WT or mutant hETB receptors. Cells with WT receptor (j) or mutant hETB receptors G57S (□) and R319W (j) were treated or not with 1028 M ET-1. Increasing concentrations of ET-1, from 10212 to 102 6 M, had no effect on cAMP accumulation in cells transfected with G57S or R319W mutant hETB receptors (data not shown). The intracellular cAMP was determined by RIA, and the values are expressed as percentage of the basal cAMP accumulation. Results are the means 6 SEM of three independent experiments.

The same results were obtained in HEK-293 cells transiently transfected with genes encoding the wild-type and R319W hETB receptors (Fig. 7A). The G57S hETB receptor even caused an increase in cAMP accumulation in response to ET-1 (Fig. 7A) that was blocked by treating the HEK-293 cells with pertussis toxin (Fig. 7B). As a control, pertussis toxin has no effect on the ET-1 blockade of adenylyl cyclase production via the wild-type hETB receptor (Fig. 7B).

Fig. 7

Effects of ET-1 on cAMP accumulation in HEK-293 cells bearing WT or mutant hETB receptors. (A) Cells bearing WT receptor (d) or mutant hETB receptors G57S (□) and R319W () were treated with increasing concentrations of ET-1. (B) Cells with WT receptor (d) or mutant hETB receptors G57S (□) were treated with increasing concentrations of ET-1 without (lines) or with pertussis toxin (dots). The intracellular contents of cAMP were determined as in Fig. 6.


We analyzed three new mutant hETB receptors that have been found in sporadic HSCR patients. The mutation in each case was heterozygous and inherited from an asymptomatic carrier (19). We explored their functionalities to determine whether these natural mutated receptors were involved in HSCR. The data also provide new information on the relationship between the structure and the function of hETB receptors.

Human ETB is a G protein-coupled receptor (GPCR) that binds all three endothelin peptides equally well and is involved in the intracellular signaling pathway via heterotrimeric G proteins (31,32). Sakamoto et al. (33) reported that the classic “message-address” concept can be used for the endothelin receptor interaction. Recently, Masaki et al. (34) proposed that the endothelin receptor has two functions, a “message” and an “address” function, with each function assigned to different domains of the receptor. Takasuka et al. (35) showed that the 29 amino acids of the N-terminal part, starting from Lys 73, are responsible for the formation of the stable ligand-receptor complex. Sakamoto et al. (33) demonstrated that the region containing the first transmembrane domain (TMD1) to TMD3 and the adjacent intracellular, and extracellular loops, and the TMD7 are involved in endothelin binding and that TMD4 to TMD6 and the adjacent loops are involved in the subtype selectivity. It was shown that the third intracellular loop contains the major determinants for the selective coupling of each endothelin receptor subtype. More recently, Vichi et al. (36) demonstrated that TMD7 regulates the AP-1 transcriptional pathway and that the cytoplasmic tail is important for coupling to G protein, as in many GPCR. The third intracellular loop and the TMD6 also appear to be involved in the G proteins interactions. Several G proteins can be activated after ETB receptor stimulation. The major signaling pathway for ETB activation is an increase in intracellular calcium concentration after activation of phospholipase C, which is stimulated by activation of a Gq/11. It was also recently shown that Gα13 is implicated, which will activate a Jun N-terminal kinase (JNK) after the binding of ET to ETB receptor. The minor signaling pathway for hETB is activation of Gαi, which inhibits adenylate cyclase.

In this report, we performed functional analysis of three new mutants of hETB receptors based on analysis of their coupling to heterotrimeric G proteins. The intracellular signaling pathway involved was analyzed and compared to that of the wild-type hETB receptor.

The P383L mutant hETB receptor bound essentially no ET-1 and had no functional activity (induction of calcium transient and AP-1 stimulation). This was explained by the lack of functional receptors at the plasma membrane. Immunofluorescence experiments showed that the protein resulting from mRNA translation clustered mainly around the nucleus. The P383L mutation that occured in the C-terminal region of TMD7 impaired the translocation of the mutant hETB receptor to the plasma membrane. Such ectopic hETB receptor clearly cannot bind its agonist and cannot transduce a functional signal. This mutation affects the spatial structure of the seventh transmembrane helix that might be the cause of the sequestration of the mutant receptor into the Golgi apparatus. Only one mutation of the hETB receptor has been previously found to have impaired translocation to the plasma membrane. This C109R mutation lies in the amino-terminal region of TMD1 (22). We can speculate that both C109R and P383L mutations are involved in creating a topogenic region that allows the transport of the receptor from the endoplasmic reticulum to the plasma membrane. A recent paper by Vichi et al. (21) examined the functionality of the P382K mutant rat ETB receptor (corresponding to P383L in humans (Fig. 1) and found an impaired binding, as for the P383L mutant. But the immunofluorescence of transiently transfected cells with an antibody against a Tag sequence showed that the subcellular distribution of the mutant was normal, in contrast with our data. The discrepancy of the results could be due to the substituted aminoacid (from proline to lysine in the rat ETB, and to leucine in the human ETB receptor), or from the antibodies used, in our case a specific antibody against hETB and in their case against a Tag sequence, or even from the Tag itself, which could alter the cellular trafficking of the receptor.

In contrast, the two other mutant receptors analyzed, G57S and R319W hETB were distributed, like the wild-type, at the periphery of the transfected cells, showing the proper trafficking of the receptor from the endoplasmic reticulum to the plasma membrane. Immunofluorescent labeling of cells incubated for 30 min with ET-1 showed similar internalization of the mutants compared to the WT hETB receptor. ET-1 induced a patchy distribution both below the plasma membrane and around the nucleus, presumably being located in lysosomes in accordance with a recent paper of Abe et al. (37). Most of the properties of the two mutants G57S and R319W were identical to those of the WT receptor. The same binding of 125I ET-1 was observed for both mutants and WT hETB receptors, showing functional binding sites of ET-1. There were also no changes in affinity binding using the specific ETB agonist IRL 1620. We tested the effect of ET activation of hETB on the calcium transient using a recombinant CHO cell line containing æquorin. This allows us to measure the light emission in live cells caused by increasing intracellular calcium in response to activation of hETB by ET-1 (27). As expected, there was no stimulation of calcium transient by the P383L mutant hETB receptor, in agreement with the non access of ET-1 to the mutant receptor. In contrast, for G57S, R319W and WT hETB receptor all gave the same activation. These results show that there is normal coupling with Gαq/11 of these mutant hETB receptors after activation by ET-1.

Vichi et al. (36) have shown recently that some TMD7 mutants of the rat ETB receptor have normal ERK activation by ET-1 but a reduced AP-1 transcriptional activation. We tested the activation of AP-1 transcription by the mutant G57S and R319W hETB receptors by transient transfection of an AP-1/luciferase reporter construct. The two mutants gave the same activation as the wild-type human ETB receptor, showing a normal Gαq coupling. G57S mutation is in the N-terminal part of the receptor, which is believed to be responsible for the formation of a stable ligand-receptor complex, but which does not seem to be important for the signaling coupling. R319W mutation is located within the third intracytoplasmic loop which have been shown to be a major determinant of selective coupling of ETB (32). ET-1 and the specific ETB agonist, IRL 1620 interacted with both mutants to give the same activation of AP-1 transcription, showing that the mutations are not in the subdomains involved in the selectivity of ET subtypes (33).

ET-1 has opposite effects on cAMP formation when acting via ETA and ETB, with pharmacological evidence for the selective coupling of each receptor subtype with Gαs/αi (32). The effect of ET-1 on cAMP accumulation was tested on G57S and R319W and compared to the WT hETB receptors. Neither G57S nor R319W hETB mutant receptors inhibited cAMP accumulation in the CHO cells, expressing transiently or permanently the mutant receptors. As CHO cells have low level of Gαs/αi, WT and mutant hETB receptors were also transfected into HEK-293 cells. Furthermore HEK-293 cells are derived from human embryonic kidney and might have a better transduction of human endothelin receptor. Activation of the G57S mutant hETB receptor by ET-1 stimulated cAMP accumulation in HEK-293 cells, and the accumulation was blocked by pertussis toxin. Mutation G57S caused a switch of the G protein coupling from Gαi to Gαs. WT and R319W mutant hETB receptors have the same type of responses in CHO cells and HEK-293 cells. Arg319 lies within the third intracellular loop where other mutations have been associated with HSCR, such as Ser305 (38). This loop might be important for the interaction of the ETB receptor with Gαi protein involved in the cAMP pathway, whereas it might not affect the Gq protein that is said to cause the intracellular calcium transient and activate AP-1 pathway (39). A mutation in an other GPCR, the parathyroid hormone (PTH)/PTH-related peptide (PTHrp) receptor, results in a selective loss of a signaling pathway (40). Mutations in the second cytoplasmic loop of the PTH/PTHrp receptor cause a selective loss of PTH-stimulated phospholipase C activity without affecting the cells’s capacity to generate cAMP.

The three mutations of the hETB receptor explored in this paper impair the subcellular distribution of the receptor (P383L) or the cAMP signaling pathway (G57S and R319W). Thus the P383L hETB receptor mutation can be involved in HSCR. The links between the two other hETB receptor mutations (G57S and R319W) and HSCR are less clear. The G57S mutation has also been found in ECTIM population with a low frequency (12 carriers in 1223 individuals), but not associated with blood pressure or hypertension (41), which could be explained by the normal Gαq coupling of this mutant receptor.

Our findings allow us to make the hypothesize that a defect in the Gαi signaling pathway of the hETB receptor might be involved in HSCR etiology. The heterozygosity of the human ETB receptor would predispose to isolated HSCR with incomplete penetrance and ETB may be a susceptibility locus in non-syndromic HSCR.

The absence of ganglion cells from the distal portion of the intestinal tract in HSCR is a consequence of the premature arrest of the cranio-caudal migration of neural crest cells (9). The proposed explanation of this phenomenon is that ET/ETB prevents the differentiation of neural crest-derived precursors during their migration (3). Furthermore, cyclic AMP has been shown to induce cell differentiation of Trypanosoma cruzi (42,43). Taken together this suggests that the intracellular signaling of hETB receptors via cAMP might be involved in neural crest cell differentiation into neurons and glial cells induced by GDNF/RET protooncogene.


  1. 1.

    Lesser PB, El-Nahas AM, Lukl P, Andrews P, Schuler JG, Filtzer HS. (1979) Adult-onset Hirschsprung’s disease. JAMA 242: 747–748.

  2. 2.

    Le Douarin NM, Teillet MA. (1974) Experimental analysis of the migration and differentiation of neuroblasts of the autonomic nervous system and of neurectodermal mesenchymal derivatives, using a biological cell marking technique. Dev. Biol. 41: 162–184.

  3. 3.

    Wu JJ, Chen JX, Rothman TP, Gershon MD. (1999) Inhibition of in vitro enteric neuronal development by endothelin-3: mediation by endothelin B receptors. Development 126: 1161–1173.

  4. 4.

    Chakravarti A, Lyonnet S. (2000) Hirschsprung disease. In: Scriver CR, Beaudet AL, Sly WS, Valle D, eds. Metabolic and Molecular Bases of Inherited Disease, 8th edition, McGraw Hill, New York.

  5. 5.

    Salomon R, Attie T, Pelet A, et al. (1996) Germline mutations of the RET ligand GDNF are not sufficient to cause Hirschsprung disease. Nat. Genet. 14: 345–347.

  6. 6.

    Angrist M, Bolk S, Halushka M, Lapchak PA, Chakravarti A. (1996) Germline mutations in glial cell line-derived neurotrophic factor (GDNF) and RET in a Hirschsprung disease patient. Nat. Genet. 14: 341–344.

  7. 7.

    Kuhlbrodt K, Schmidt C, Sock E, et al. (1998) Functional analysis of Sox10 mutations found in human Waardenburg-Hirschsprung patients. J. Biol. Chem. 273: 23033–23038.

  8. 8.

    Kapur RP. (1999) Early death of neural crest cells is responsible for total enteric aganglionosis in Sox10(Dom)/Sox10(Dom) mouse embryos. Pediatr. Dev. Pathol. 2: 559–569.

  9. 9.

    Gershon MD. (1999) Endothelin and the development of the enteric nervous system. Clin. Exp. Pharmacol. Physiol. 26: 985–988.

  10. 10.

    Hosoda K, Hammer RE, Richardson JA, et al. (1994) Targeted and natural (piebald-lethal) mutations of endothelin-B receptor gene produce megacolon associated with spotted coat color in mice. Cell 79: 1267–1276.

  11. 11.

    Edery P, Attie T, Amiel J, et al. (1996) Mutation of the endothelin-3 gene in the Waardenburg-Hirschsprung disease (Shah-Waardenburg syndrome). Nat. Genet. 12: 442–444.

  12. 12.

    Hofstra RM, Osinga J, Tan-Sindhunata G, et al. (1996) A homozygous mutation in the endothelin-3 gene associated with a combined Waardenburg type 2 and Hirschsprung phenotype (Shah-Waardenburg syndrome). Nat. Genet. 12: 445–447.

  13. 13.

    Hosoda K, Nakao K, Hiroshi A, et al. (1991) Cloning and expression of human endothelin-1 receptor cDNA. FEBS Lett. 287: 23–26.

  14. 14.

    Sakamoto A, Yanagisawa M, Sakurai T, Takuwa Y, Yanagisawa H, Masaki T. (1991) Cloning and functional expression of human cDNA for the ETB endothelin receptor. Biochem. Biophys. Res. Commun. 178: 656–663.

  15. 15.

    Puffenberger EG, Hosoda K, Washington SS, et al. (1994) A missense mutation of the endothelin-B receptor gene in multigenic Hirschsprung’s disease. Cell 79: 1257–1266.

  16. 16.

    Attie T, Till M, Pelet A, et al. (1995) Mutation of the endothelin-receptor B gene in Waardenburg-Hirschsprung disease. Hum. Mol. Genet. 4: 2407–2409.

  17. 17.

    Kusafuka T, Wang Y, Puri P. (1996) Novel mutations of the endothelin-B receptor gene in isolated patients with Hirschsprung’s disease. Hum. Mol. Genet. 5: 347–349.

  18. 18.

    Auricchio A, Casari G, Staiano A, Ballabio A. (1996) Endothelin-B receptor mutations in patients with isolated Hirschsprung disease from a non-inbred population. Hum. Mol. Genet. 5: 351–354.

  19. 19.

    Amiel J, Attie T, Jan D, et al. (1996) Heterozygous endothelin receptor B (EDNRB) mutations in isolated Hirschsprung disease. Hum. Mol. Genet. 5: 355–357.

  20. 20.

    Svensson PJ, Anvret M, Molander ML, Nordenskjold A. (1998) Phenotypic variation in a family with mutations in two Hirschsprung-related genes (RET and endothelin receptor B). Hum. Genet. 103: 145–148.

  21. 21.

    Syrris P, Carter ND, Patton MA. (1999) Novel nonsense mutation of the endothelin-B receptor gene in a family with Waardenburg-Hirschsprung disease. Am. J. Med. Genet. 87: 69–71.

  22. 22.

    Tanaka H, Moroi K, Iwai J, et al. (1998) Novel mutations of the endothelin B receptor gene in patients with Hirschsprung’s disease and their characterization. J. Biol. Chem. 273: 11378–11383.

  23. 23.

    Imamura F, Arimoto I, Fujiyoshi Y, Doi T. (2000) W276 mutation in the endothelin receptor subtype B impairs Gq coupling but not Gi or Go coupling. Biochemistry 39: 686–692.

  24. 24.

    Parnot C, Le Moullec JM, Cousin MA, Guedin D, Corvol P, Pinet F. (1997) A live-Cell assay for studying extracellular and intracellular endothelin-converting enzyme activity. Hypertension 30: 837–844.

  25. 25.

    Hall CV, Jacob PE, Ringold GM, Lee F. (1983) Expression and regulation of Escherichia coli lacZ gene fusions in mammalian cells. J. Mol. Appl. Genet. 2: 101–109.

  26. 26.

    Rizzuto R, Simpson AW, Brini M, Pozzan T. (1992) Rapid changes of mitochondrial Ca21 revealed by specifically targeted recombinant aequorin [published erratum appears in Nature 360(6406):768, 1992]. Nature 358: 325–327.

  27. 27.

    Parnot C, Bardin S, Miserey-Lenkei S, Guedin D, Corvol P, Clauser E. (2000) Systematic identification of mutations that constitutively activate the angiotensin II AT1A receptor by screening a randomly mutated cDNA library with an original pharmacological bioassay. Proc. Natl. Acad. Sci. U.S.A. 97: 7615–7620.

  28. 28.

    Takai M, Umemura I, Yamasaki K, et al. (1992) A potent and specific agonist, Suc-[Glu9,Ala11,15]-endothelin-1(8–21), IRL 1620, for the ETB receptor. Biochem. Biophys. Res. Commun. 184: 953–959.

  29. 29.

    Baynash AG, Hosoda K, Giaid A, et al. (1994) Interaction of endothelin–3 with endothelin-B receptor is essential for development of epidermal melanocytes and enteric neurons. Cell 79: 1277–1285.

  30. 30.

    Sasaki Y, Hori S, Oda K, Okada T, Takimoto M. (1998) Both ET(A) and ET(B) receptors are involved in mitogen-activated protein kinase activation and DNA synthesis of astrocytes: study using ET(B) receptor-deficient rats (aganglionosis rats). Eur. J. Neurosci. 10: 2984–2993.

  31. 31.

    Aramori I, Nakanishi S. (1992) Coupling of two endothelin receptor subtypes to differing signal transduction in transfected Chinese hamster ovary cells. J. Biol. Chem. 267: 12468–12474.

  32. 32.

    Takagi Y, Ninomiya H, Sakamoto A, Miwa S, Masaki T. (1995) Structural basis of G protein specificity of human endothelin receptors. A study with endothelin A/B chimeras. J. Biol. Chem. 270: 10072–10078.

  33. 33.

    Sakamoto A, Yanagisawa M, Sakurai T, et al. (1993) The ligand-receptor interactions of the endothelin systems are mediated by distinct “message” and “address” domains. J. Cardiovasc. Pharmacol. 22: S113–S116.

  34. 34.

    Masaki T, Ninomiya H, Sakamoto A, Okamoto Y. (1999) Structural basis of the function of endothelin receptor. Mol. Cell. Biochem. 190: 153–156.

  35. 35.

    Takasuka T, Sakurai T, Goto K, Furuichi Y, Watanabe T. (1994) Human endothelin receptor ETB. Amino acid sequence requirements for super stable complex formation with its ligand. J. Biol. Chem. 269: 7509–7513.

  36. 36.

    Vichi P, Whelchel A, Posada J. (1999) Transmembrane helix 7 of the endothelin B receptor regulates downstream signaling. J. Biol. Chem. 274: 10331–10338.

  37. 37.

    Abe Y, Nakayama K, Yamanaka A, Sakurai T, Goto K. (2000) Subtype-specific trafficking of endothelin receptors. J. Biol. Chem. 275: 8664–8671.

  38. 38.

    Auricchio A, Griseri P, Carpentieri ML, et al. (1999) Double heterozygosity for a RET substitution interfering with splicing and an EDNRB missense mutation in Hirschsprung disease [in process citation]. Am. J. Hum. Genet. 64: 1216–1221.

  39. 39.

    Sokolovsky M. (1995) Endothelin receptor heterogeneity, G-proteins, and signaling via cAMP and cGMP cascades. Cell Mol. Neurobiol. 15: 561–571.

  40. 40.

    Iida-Klein A, Guo J, Takemura M, et al. (1997) Mutations in the second cytoplasmic loop of the rat parathyroid hormone (PTH)/PTH-related protein receptor result in selective loss of PTH-stimulated phospholipase C activity. J. Biol. Chem. 272: 6882–6889.

  41. 41.

    Nicaud V, Poirier O, Behague I, et al. (1999) Polymorphisms of the endothelin-A and -B receptor genes in relation to blood pressure and myocardial infarction: The Etude Cas-Temoins sur l’Infarctus du Myocarde (ECTIM) Study. Am. J. Hypertens. 12: 304–310.

  42. 42.

    Gonzales-Perdomo M, Romero P, Goldenberg S. (1988) Cyclic AMP and adenylate cyclase activators stimulate Trypanosoma cruzi differentiation. Exp. Parasitol. 66: 205–212.

  43. 43.

    Rangel-Aldao R, Triana F, Fernandez V, Comach G, Abate T, Montoreano R. (1988) Cyclic AMP as an inducer of the cell differentiation of Trypanosoma cruzi. Biochem. Int. 17:337–344.

  44. 44.

    Nakamuta M, Takayanagi R, Sakai Y, et al. (1991) Cloning and sequence analysis of a cDNA encoding human non-selective type of endothelin receptor. Biochem. Biophys. Res. Commun. 177: 34–39.

  45. 45.

    Sakurai T, Yanagisawa M, Takuwa Y, et al. (1990) Cloning of a cDNA encoding a non-isopeptide-selective subtype of the endothelin receptor [see comments]. Nature 348: 732–735.

  46. 46.

    Saito Y, Mizuno T, Itakura M, et al. (1991) Primary structure of bovine endothelin ETB receptor and identification of signal peptidase and metal proteinase cleavage sites. J. Biol. Chem. 266: 23433–23437.

  47. 47.

    Santschi EM, Purdy AK, Valberg SJ, Vrotsos PD, Kaese H, Mickelson JR. (1998) Endothelin receptor B polymorphism associated with lethal white foal syndrome in horses. Mamm. Genome 9: 306–309.

Download references


We thank J. Philippe for technical assistance, Dr C. Parnot for the gift of CHO cells expressing æquorin, and Dr Sasaki (Ciba Geigy, Japan) for the gift of hET receptors antibodies.

S. Fuchs received funds from the “Ministère de la Recherche et de l’Enseignement Supérieur”. This work was supported in part by the “Ministère de la Recherche et de l’Enseignement Supérieur” (ACC-SV9). The English text was edited by Owen Parkes.
